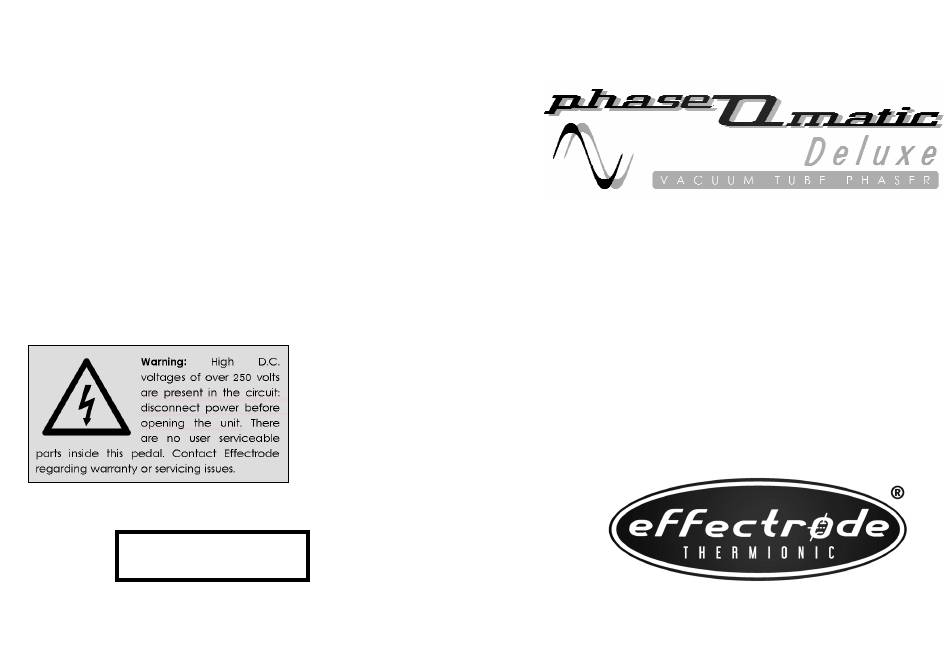

Effectrode Phaseomatic PM-3B Owner's Manual

Download this manual

S p e c i f i c a t i o n s

• Input Impedance: greater than 1M Ω

• Output Impedance: less than 1KΩ

• Controls: Shape, Width, Speed and Blend

• Features: Vacuum tube phase-shifter circuitry

• Expression Pedal: Roland EV-5 or EV-7.

• Peach LEDs: pulsate with modulation

speed for visual song tempo matching.

• Mixed-Wave Modulator: Triangle, sine, sawtooth,

square, pulse and sequenced wave shapes.

• Power Requirements: 12VDC @ 1Amp

• Dimensions: width 7.5" depth 4.8" height 1.3"

• Weight: 2lb ( on Earth); 0.3lb (Titan)

• Construction: solid die-cast aluminum box

• Finish: Pastel-blue powder coat

Serial #

PM-3B

Thermionic

Owner's Manual

12 Br o ugh t on C re sc ent , B arla s t on,

St af fs , En glan d. S T12 9DB

ww w. ef fe ct r od e. co m

Need help?

Do you have a question about the Phaseomatic PM-3B and is the answer not in the manual?

Page 2 space space I n t r o d u c t i o n T u b e s The Phaseomatic Deluxe™ vacuum tube phaser The 12AU7 tube in the Phaseomatic can be generates true pitch-shift vibrato, shimmering chorus swapped with other 9-pin double triode tubes such and deep, intense “tunnel”...
Page 3 space pace The sweep modulation rate can also be set C o n t r o l s accurately using an external tap tempo controller Normal/Skewed/Scattered 3-position toggle switch such as the Time Traveler™ pedal or any controller on the rear panel selects the shape of the phase pedal that features a normally open momentary sweep contour .
Page 4 pace pace Blend knob adjusts the mix of “dry” and phase- So, rotating the “Shape” (“Wow”) knob clockwise shifted signals. Fully counter-clockwise is 100% dry causes increasing cyclic speed variation of the Slave signal, and fully clockwise is 100% phase-shifted LFO.
