Summary of Contents for PHNIX YT-200TD2

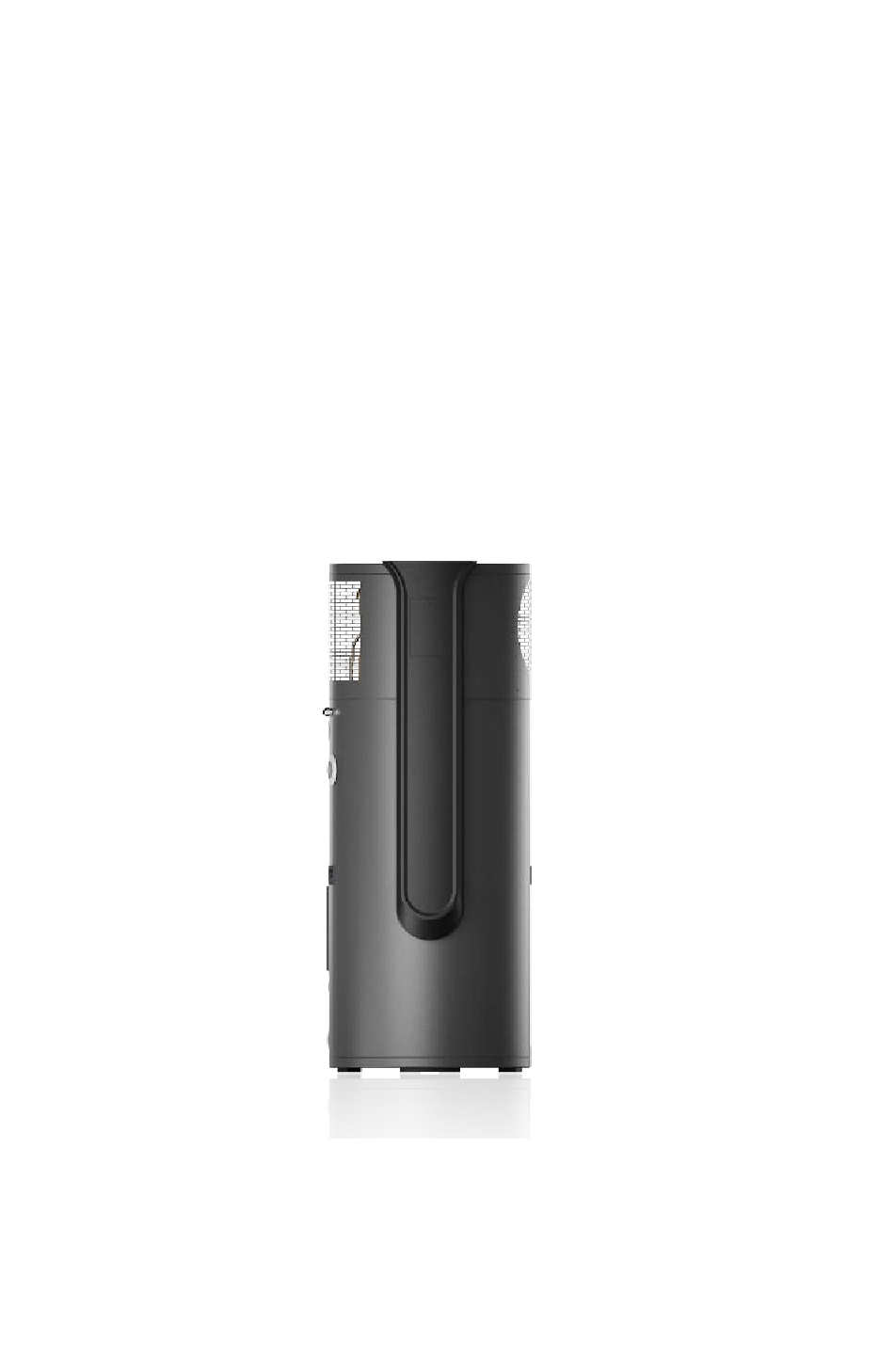

Page 1 R290 All in one heat pump water heater Manual...
Page 3: Table Of Contents
CONTENTS 1.0 SAFETY WARNINGS ..............2 2.0 PARTS & CONSTRUCTION SCHEMATICS ......... 3 Carefully read these operating 2.1 Heat pump PARTS............. 3 and installation instructionsand 2.2 Heat pump SCHEMATICS ..........4 keep them safe. Should this 3.0 INSTALLATION INSTRUCTIONS ..........5 system change hands, pass these instructions to the subsequent 3.1 DELIVERY.
Page 4: Safetywarnings
1.0 SAFETYWARNINGS INSTALLATION & OPERATION For outdoor use only. DO NOT install or operate this system before reading the manufacturer’s instructions. Thisappliancemustbeinstalled,commissioned,andservicedbyanauthorizedpersonin accordance with all applicable local rules andregulations. Removing access covers and or water heating system components will expose 240V wiring and MUST only be removed by an authorized person.
Page 5: Parts&Constructionschematics
2.0 PARTS&CONSTRUCTIONSCHEMATICS 2.1 Heat pumpPARTS The Heat pump use a R290 (propane) refrigerant which is a flammable gas class 3 according to AS 1677 and must be handled by a refrigeration mechanic with an appropriate Australian refrigerant handling license. Warning - Risk of fire due to flammable material. If the refrigerant is leaked and there is an external ignition source.
Page 6: Heat Pumpschematics
2.2 Heat pumpSCHEMATICS...
Page 7: Installation Instructions
3.0 INSTALLATION INSTRUCTIONS All Heat Pumps are designed for installation by a licensed plumber in accordance with standards set out in AS/NZS 3500.2 “National Plumbing and Drainage Code Hot Water Supply Systems - AcceptableSolutions”. 3.1 DELIVERY The Heat Pumps must be stored and transported in a near vertical position at all times with a tilt ratio of no more than 30°.
Page 8: Base
3.2 BASE The following should be observed when selecting a base for a Heat pump: The unit should be installed on a concrete plinth or stable structure capable of sustaining weights in excess of 400 kg. The supporting structure must not shift over time (due to water drainage etc.).
Page 9: Air Flow
3.3 AIR FLOW This unit is designed for external operation only and requires a continuous supply of air to operateefficiently. Avoid installation in areas where falling debris such as leaves is prevalent, as this may result in air vents being blocked or the unit being damaged. Avoid placing the system in locations with multiple walls or structures (See Figure 1 &...
Page 10: Power Supply Tariffs
3.4 POWER SUPPLY TARRIFS Electricity companies across the states and territories of Australia have different usage rates, naming conventions and even available tariffs. Always be sure to check with your electricity provider that the system is connected to a compatible tariff. COMPATIBLE TARIFFS: Continuous tariff - 24 hours a day.
Page 11: Plumbing Schematics
If you are experiencing noise issues with your Heat pump system, please contact your supplier directly. There are means to mitigate the sound produced when the system isoperational. 4.0PLUMBING SCHEMATICS The following instructions and schematics have taken into account standards AS4324, AS4020, AS1056.1, AS/NZS2712, AS/NZ3350.240/30/30.2, AS3498 and represents an optimum installation procedure for this unit however to ensure minimum requirements are met all local regulations should be adhered too.
Page 12: Plumbing Installation
5.0PLUMBING INSTALLATION 5.1 PLUMBINGCONNECTIONS 5.1.1 Cold water supply outlet The cold water supply connection is a G 3/4” female thread. The cold water supply should be connected to G 3/4” socket. The cold water supply outlet can also act as a drainage point for emptying the system. 5.1.2 Hot water connection The hot water supply connection is a G 3/4”...
Page 13 5.1.4 Pressure & Temperature Relief (PTR) Valve The system is supplied with a loose PTR valve appropriate to the pressure rating of the water heater tank. If the PTR valve is not present please contact your supplier. The valve Rated capacity: 850kPa;10kW; Set temperature: 93-99°C. The supplied PTR valve must be installed at Point 4 in section 3.2 Heat pump Connection Dimensions and Components under the socket marked "RELIEF VALVE".
Page 14 Should main pressure fluctuate above this rating, a pressure limiting device (AS1357) should be connected at Point 8 in section 3.2 Heat pump Connection Dimensions and Components. 5.1.8 Non-return/Isolating Valve It is compulsory that a non-returning/isolation valve is installed directly into the cold- water supply line feeding the system.
Page 15: Electrical Connection
6.0 ELECTRICAL CONNECTION Only qualified electricians may carry out the installations of the Heat pump HeatPumptomainpowerinaccordancewiththefollowinginstructions. 6.1 ELECTRICALSCHEMATICS...
Page 16: Pre-Connection & Regulations
6.2 PRE-CONNECTION & REGULATIONS Before any work can commence, ensure that the heater is isolated from the power supply at the control panel. The heat pump is designed for permanent fixed wiring to either a Continuous Tariff (single phase 240V AC supply) or a Shoulder Tariff (single phase 240V AC supply).
Page 17: Commissioning The System
7.0 COMMISSION THE SYSTEM PRE-START PROCEDURES AND CHECKS Once both the electrical and plumbing connections have been completed by qualified trades person, the system is now ready for operation. Before turning the system on it is essential that you ensure the heat pump storage tank is full and the unit thoroughlyflushed.
Page 18 INSTALLATION CHECKLIST The Heat pump system is level. The Heat pump system is installed on a concrete plinth or stable structure capable of sustaining weights in excess of 400 kg. A minimum distance of 300mm is present above the Heat pump system, to allow the lid to be removed for maintenance (see section 2.3 Air Flow).
Page 19: Operation Panel Instructions
Controller Instruction 1. Features (1) Operatingcondition ● Voltage:220V～±10%,50Hz±1Hz. ● Ambient temperature:-7～+43℃ ● Storage temperature:-20～+75℃ ● Relative humidity:0～95%RH ● Temperature accuracy:±1℃ (2) Mainfunction ● Display the pool temperature and setting temperature, and also can query the coil temperature, ambient temperature and exhaust temperature and soon. ●...
Page 20: Home
2. Home pageillustration 2.1 Interface Display and instruction of icons Name Symbol Function 1.On/off key (hold for 1 second) 2.Return key On/off key Escapekey Unlock key (hold for 3seconds) Setting the clock, press the key will enter into clock setting interface, and then press one time to switch the hour and minutearea Setting the timer (press the key and hold for 3s) Clock key...
Page 21 Press the key to change temperature setting value or parameter value or change hour and minutevalue Up key Press the key and hold for 3s to query the system status/ parameter Pageup Press the key to change temperature setting value or parameter value or change hour and minutevalue Down key Press the key and hold for 3s to query the...
Page 22 Light up In heating mode Light up Heating element ON Flash for 1s Run in Boost mode Flash for 2s Run in sterilization mode Flash WIFI distribution network Light up WIFI connect successfully Light up Water temperature Light up Setting temperature Light up degree centigrade Light up...
Page 23: Turn Off/On The Heat Pump
Light up There is error Light up Lock screen Light up Compressor running Light up High fan speed Light up Low fan speed Flash for 1s Ventilation mode: high fan speed Flash for 2s Ventilation mode: low fan speed Display Error code display Light up Timer ON...
Page 24: Lock Andunlock
1) Lock andunlock: When the controller is in the normal display mode and there is no button operation for more than 60 seconds it will get automatically locked. Press the key " " for 3 seconds to unlock, it willbeep. 2) Turn ON/OFF the heatpump: Whenthecontrollerisinthenormaldisplaymode,press"...
Page 25: Water Temperatureset
ELE mode (Heating element mode) Under ELE mode, the controller will display " ", in this mode only the heating element will work to heat the water. Water temperature setting range is 15°C~75°C，restart temperature difference is 5°C(default value). 4) Water temperatureset Unlock the controller, in the main interface, press the "∧"...
Page 26: Forced Defrosting
you can set the hour. When the hour part is set, press the " " button again, the number of minuteswillflash,press"∧"or"∨"tosettheminutes.Aftertheminutespartisset,pressthe" " button again set the hour of the end time(OFF), the hour part of the numberflashes, press "∧" or "∨", you can set the hour. When the hour part is set, press the " "...
Page 27: Trouble Shooting
" "and"∨"buttonstogetherformorethan5secondstosterilizethewatertank,thesymbol" "willflashfor2secondsthenlightup,andthewaterwillbeheatedupto70°Candkeepat 65°C~70°C, after 30 minutes, exit sterilization mode. If the water can not reach at 70C, the heat pump will run in sterilization mode for 2 hours then exit the sterilization mode. If user set the water temperature≥70°C, then never start sterilization mode Auto Sterilization Mode: Parameter F67=0 (Default) If user set the water temperature<70°C, and cumulative time over 7 days, will start Sterilization Mode automatically;...
Page 28: Operation Parameter Query
Operation Parameter Query When power on, press "∧" or "∨" button for 3 seconds, will enter into status query interface, press "∧" or "∨" button to query each status; Press " " button will exit status query interface. Name Note Fluorine Cycle/Water Cycle system 0=Water Cycle;...
Page 29: Heat Pump "Smart Life" Application
Wifi function instruction When connecting Wi-Fi, the symbol " " will flash, when connect Wi-Fi successfully, the symbol " " will light up, disconnect Wi-Fi, the symbol " " not lightup. Press and hold the two keys for 5s, enter manual intelligent distribution network connection mode 1.
Page 30 1.2 Sign up After installing the app, press the " " icon and open the Smart Life app, if there is no account, should sign up at first time, refer to followingprocess: STEP3 select country, input mobile STEP 2 number select Agree then...
Page 31 1.3Log in After signing up, log in the application refer to following process: STEP 1 STEP 2 Input account and password and log in 1.4 Create home After signing up, should create " home ", refer to following process: Home Management → Set home name → Set location → Add room → Save...
Page 32 2. WIFI connection 2.1 Prepare a Wi-Fi wireless router that can access the Internet, The Wi-Fi frequency band is required to be 2.4 Ghz and it should be placed within 10 meters of the water heater to ensure that a strong Wi-Fi signal isavailable. 2.2 Turn on Wi-Fi and Bluetooth on your mobile phone.
Page 33 2.5 Open the app Smart Life and log in, press the icon " + ", or press " Add Device " → find " Large Home Appliance " → select the “ Smart Heat Pump (Wi-Fi)" 2.6 Enter into the WIFI connecting interface, input the WIFI password ( the WIFI account must be the same as the WIFI which mobile phone connected), →...
Page 34 2.7 Ifthesystemprompts"Successfullyaddeddevice",theWIFIissuccessful.Clicktheicon " "to change the device name, select the device installation location (living room, master bedroom...), and then click Done to directly enter the device operation maininterface;...
Page 35 3. Operation 3.1 Operation interface Shows error code Shows water tank temp. Timer ON/OFF setting Mode change 1) Set water temperature. Or move the circle to change the temp. setting Adjust the Temp Setting...
Page 36: Maintenance And Solution
2) Mode change Press the setting to change the mode 3) Set timer Press...
Page 37: Pilot Run Of Heat Pump
12.0 PILOT RUN OF HEAT PUMP Please confirm the following before pilot run of Heat Pump 1. The heat pump has been finished well; 2. Assemblepipeandwireareallcorrect; 3. Drain water issmooth; 4. Insulation materials arecomplete; 5. Ground wire is installedwell; 6. Power voltage is equivalent to rated voltage of heatpump; 7.
Page 38: After-Sale Service
(1). Turn off power supply of heatpump; (2). Turnoffcoldwaterinletvalve,andopenuphotwatertapwater; (3) Connect drainage water with drain outlet through a soft pipe;(temperature resist of drainage pip is less than 93℃，if drainage pipe do not meet demands, please turn on cold water inlet valve, andturnonhotwatertapwateruntilwaterisnothot);...
Page 39: Faq
15.0 FAQ What maintenance does the heat pump need? The heat pump water heater is designed to eliminate system maintenance other than that detailed in this Owner’s Manual. The PTR valve and ECV should be checked for adequate performance or replaced at intervals not exceeding 5 years or less if local regulations apply.
Page 40 WARRANTY DETAILS CUSTOMER’S DETAILS Name: Address: Phone Number: Email Address: Model: Serial Number: Installation Date: Scope of works: New home Replacement HWS INSTALLER’S DETAILS Name: Address: Phone Number: Email Address: License Number: SYSTEM DETAILS...
Page 41 NOTES...
