Calibrated Digital Ozone (O3) Sensor Instrument – SM-500
DESCRIPTION
The SM-500 is a calibrated digital ozone sensor instrument that utilizes a state-of-the-art electrochemical (EC) ozone sensing
element. The SM-500 can be paired with Eco Sensors' OS-4 & OS-6 ozone controllers or it can be configured as an independent
digital ozone instrument via RS-232 or USB serial communication. The SM-500 includes a user-replaceable calibrated sensor
module (RME-O3) that enables users to easily maintain calibration requirements for their application. The SM-500 also
includes a convenient zero button. The SM-500 is available with standard calibration ranges of 0-20 ppm and 1-50 ppm.
Custom calibration ranges may be available. Please contact Eco Sensors for more information.
FEATURES
• Integrates seamlessly with Eco Sensors' OS-4 or OS-6 Ozone Controllers using standard 3-wire power and
communication cable.
• USB power and serial communication is available via the USB micro-b port.
• Other flexible power configurations are possible:
o
5 VDC power input via screw terminal
o
7-30 VDC power input via screw terminal or barrel jack
• Other convenient data configurations are possible:
o
RS-232 transmission via screw terminal
o
Analog output, featuring a buffered 0-2 V signal that is linearly proportional to the gas concentration.
• Zero button for re-zeroing of the sensor module in the application.
• A user-replaceable sensor module within the SM-500
• Temperature and relative humidity sensor data is included in the digital output.
https://interlinkelectronics.com

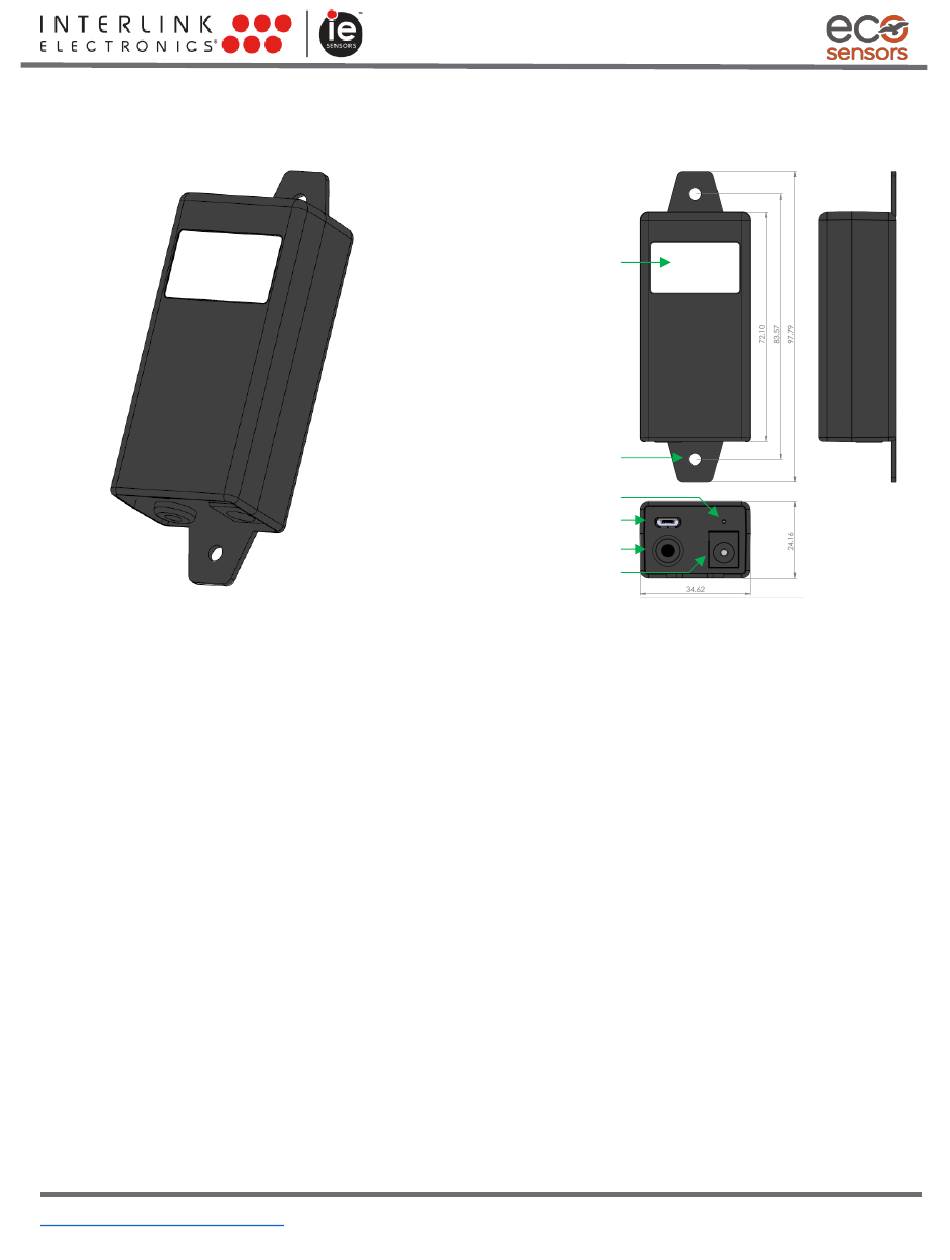

Ozone Sensing Area
Mounting Tabs
Zero-Button
USB Micro-B Port
Wiring Port
Barrel Power Jack
Page 1 of 3
all dimensions in mm
