Page 1 DC1105 Walkie T alkie Twin Pack Instruction Manual...
Page 2: Table Of Contents
CONTENTS General Information & Safety Instructions............3 Box Contents ........................3 Product Diagram ......................4 Before First Use ....................... 5 Safety Precautions ......................5 Belt Clip Removal/Attachment.................6 Battery Installation ......................6 Operating Instructions ....................7 Frequency Guide ......................10 Channel Converting Function .................. 12 Converting Channel Guide ..................
Page 3: General Information & Safety Instructions
GENERAL INFORMATION & SAFETY INSTRUCTIONS • Do not use in restricted areas • Dispose of responsibly • Dispose of exhausted batteries responsibly • Maximum range based off line of sight • Children should use with adult supervision WARNING: The manufacturer is not responsible for any potential injury from misuse BOX CONTENTS 2 x Walkie Talkies 2 x Detachable Belt Clips...
Page 4: Product Diagram

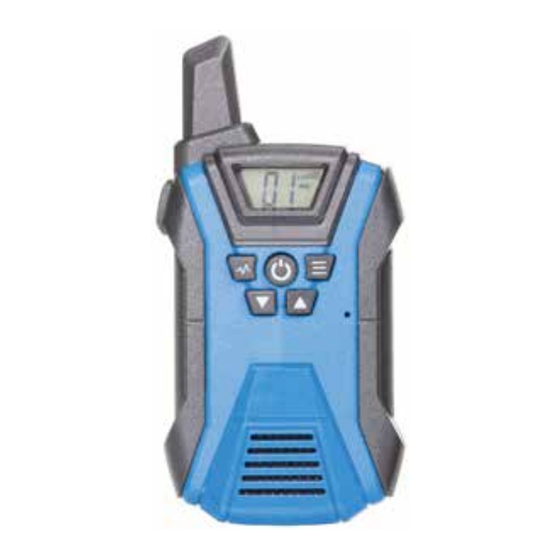

PRODUCT DIAGRAM...
Page 5: Before First Use
BEFORE FIRST USE Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend you keep the original packaging for storing the product when not in use. Please pay close attention to the section entitled Important Safety and General Instructions.
Page 6: Belt Clip Removal/Attachment
BELT CLIP REMOVAL/ATTACHMENT Push the tab out and push up the clip. To reattach, slide clip piece down with the clip facing inward until you hear a click. BATTERY INSTALLATION Press down on the back of panel of the Insert 3x1.5VAAA batteries (not unit and slide the battery cover off.
Page 7: Operating Instructions
OPERATING INSTRUCTIONS POWER (ON/OFF) BUTTON Turn on the device: press the power button once,LCD screen will light. Turn off the device: press and hold the power button (below the LCD screen) for 3 seconds. LCD will show channel, volume and and battery level.
Page 8 RECEIVE/TRANSMIT COMMUNICATION To transmit, press and hold the TALK button while talking into the walkie-talkie at a close range (within 5cm of your face). The TX icon will be showed on LCD screen(See pic. 1). Release the button to finish talking, when the button is released, your walkie-talkie can receive transmissions.
Page 9 VOX SELECTION These devices are capable of voice-activated (VOX) control. This means the walkie-talkie will transmit any sound it picks up without pressing the TALK button-as such, it is recommended that VOX Mode not be used in a noisy or windy environment. NOTE: VOX Mode is overridden when you press the TALK button.
Page 10: Frequency Guide
FREQUENCY GUIDE CHANNEL FREQUENCY Channel 1 476.425 Duplex - Repeater Output Channel 2 476.45 Duplex - Repeater Output Channel 3 476.475 Duplex - Repeater Output Channel 4 476.5 Duplex - Repeater Output Channel 5 476.525 Duplex - Repeater Output (Emergency use only) Channel 6 476.55 Duplex - Repeater Output...
Page 11 CHANNEL FREQUENCY Channel 30 477.15 Simplex UHF CB Broadcasts Channel 31 477.175 Repeater Input Channel 32 477.2 Repeater Input Channel 33 477.225 Repeater Input Channel 34 477.25 Repeater Input Channel 35 477.275 Repeater Input (Emergency Use Only) Channel 36 477.3 Repeater Input Channel 37 477.325...
Page 12: Channel Converting Function
CHANNEL FREQUENCY Channel 63 Reserved for Future Expansion Channel 64 477.0125 Simplex Channel 65 477.0375 Simplex Channel 66 477.0625 Simplex Channel 67 477.0875 Simplex Channel 68 477.1125 Simplex Channel 69 477.1375 Simplex Channel 70 477.1625 Simplex NOTE: This frequency guide is just for use with the same channels of walkie talkies, can not be used in channel converting function.
Page 13: Converting Channel Guide
CONVERTING CHANNEL GUIDE TURN OFF CHANNEL CONVERTING FUNCTION Press the menu button 4 times to enter the channel converting mode. Press the down button until display “ r0”. Press the TALK button to confirm.
Page 14: Cleaning, Care, Storage & Maintenance
CLEANING, CARE, STORAGE & MAINTENANCE • Store in a dry space • Remove batteries before storing • To clean wipe over with a damp cloth TROUBLESHOOTING FAULT POSSIBLE CAUSE SUGGESTED REMEDY Not connecting to • Incorrect Channels • Match channel numbers other unit •...
Page 16: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose. This warranty will not cover modified product;...
