By using the MTX5-D and the MY4-AEC, you can configure a remote conferencing system. Please
read this manual when you want to configure a remote conferencing system using the MTX5-D and
the MY4-AEC. This manual provides a simple explanation of the setup procedure, using the project
file that is preinstalled in MTX Editor. Understanding how the inputs and outputs of the MTX5-D
and the MY4-AEC are related will allow you to configure a system that meets your needs.
Please refer to the owner's manual on devices about the details, and refer to the "MTX Editor
User's Manual" (PDF file) about the details of MTX Editor.
Special Notice
• The software and this manual are the exclusive copyrights of Yamaha Corporation.
• Copying of the software or reproduction of this manual in whole or in part by any means is expressly forbidden without the written consent of
the manufacturer.
• Yamaha makes no representations or warranties with regard to the use of the software and documentation and cannot be held responsible for
the results of the use of this manual and the software.
• Future upgrades of application and system software and any changes in specifications and functions will be announced at the following web-
site.
http://www.yamahaproaudio.com/
• The screen displays as illustrated in this manual are for instructional purposes, and may appear somewhat different from the screens which
appear on your computer.
• Windows is a registered trademark of Microsoft® Corporation in the United States and other countries.
• The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.
MTX5-D/MY4-AEC
System Setup Manual
MTX5-D/MY4-AEC System Setup Manual
EN
1
Advertisement

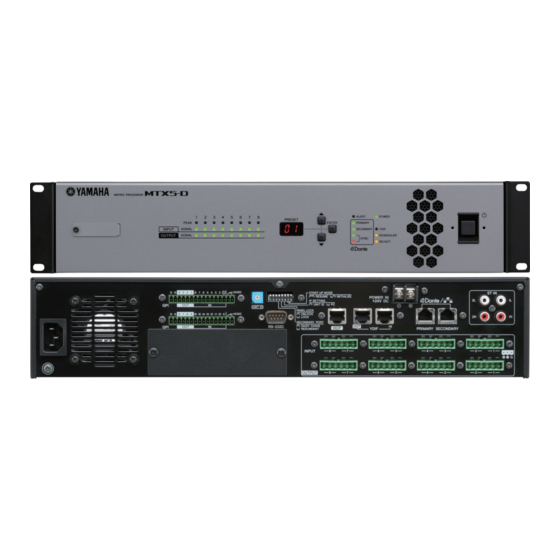

Related Manuals for Yamaha MTX5-D
Summary of Contents for Yamaha MTX5-D
- Page 1 • Copying of the software or reproduction of this manual in whole or in part by any means is expressly forbidden without the written consent of the manufacturer. • Yamaha makes no representations or warranties with regard to the use of the software and documentation and cannot be held responsible for the results of the use of this manual and the software.
- Page 2 Introduction The MTX5-D/MY4-AEC system setup manual explains settings for when an MY4-AEC is installed in the MTX5-D’s [SLOT]. As examples, we will provide simple explanations of the typical setups described below. For detailed parameter settings, refer to “MTX Editor User’s Manual.”...
- Page 3 This is an example of one remote location with four or fewer local microphones. Use the AEC 4Mic 1RemoteLocation-*.mtx file. This example assumes that you’re using the following equipment. • MTX5-D 1 • MY4-AEC 1 • XMV4140 (Amplifier) 1 •...
- Page 4 This is an example of one remote location with between five and eight local microphones. Use the AEC 8Mic 1RemoteLocation-*.mtx file. This example assumes that you’re using the following equipment. • MTX5-D 1 • MY4-AEC 1 • XMV4140 (Amplifier) 1 •...
- Page 5 This is an example of multiple remote locations, with four or fewer local microphones. Use the AEC 4Mic 4RemoteLocation-*.mtx file. This example assumes that you’re using the following equipment. • MTX5-D 1 • MY4-AEC 1 • XMV4140 (Amplifier) 1 •...
- Page 6 This is an example in which participants are divided between two meeting rooms and are conferencing with separate loca- tions. Use the AEC 2MeetingRoom 2RemoteLocation-*.mtx file. This example assumes that you’re using the following equipment. • MTX5-D 1 • MY4-AEC 1 • XMV4140 (Amplifier) 1 • Microphones (Boundary microphones) 8 •...
- Page 7 4 ch 4 ch 1 ch 1 ch 1 ch CODEC InputCh Matrix 1 ZONE 1 OutputCh ([OUTPUT] 1) 1–4 Near-end Mic FromFE: From Far-end NEVoice: Near-end Voice FEVoice: Far-end Voice TO FE: To Far-end Noise Reduction MTX5-D/MY4-AEC System Setup Manual...
- Page 8 (Gate, Comp, Ducker) and adjusting the parameters of an operating system after it has been set up. Echo cancellation will no longer work effectively if you do so. In this example, the connections are as follows. Microphone Microphone Microphone Microphone MTX5-D (UNIT ID=01) RECORDER CODEC Network Switch Computer XMV4140 (UNIT ID=30) MTX5-D/MY4-AEC System Setup Manual...
- Page 9 The MTX5-D provides two types of FBS: DYNAMIC and FIXED. In this project file, the DYNAMIC setting of the MTX5-D unit is turned on. As needed, use the “INPUT” screen to set the FBS setting to FIXED. For details on how to make this setting, refer to the “MTX Editor User’s Manual.”...
- Page 10 • If you want to connect recording/playback device To record, connect your device to the MTX5-D’s “OUTPUT” 7 connector. To play back, connect your device to the MTX5-D’s “ST IN” 2L connector. When recording, turn on the [ON] button of input channel STIN2L. When playing back, turn on the [ON] button of output channel OUT7.
- Page 11 1 ch 1 ch 1 ch Input Ch Matrix 9 ZONE 9 OutputCh (A ch) YDIF 1 4 ch 4 ch 1 ch 1 ch 1 ch CODEC InputCh Matrix 1 ZONE 1 OutputCh ([OUTPUT] 1) 1–4 MTX5-D/MY4-AEC System Setup Manual...
- Page 12 (Gate, Comp, Ducker) and adjusting the parameters of an operating system after it has been set up. Echo cancellation will no longer work effectively if you do so. In this example, the connections are as follows. Microphone Microphone Microphone Microphone MTX5-D (UNIT ID=01) RECORDER CODEC Network Switch Microphone Microphone Microphone Microphone Computer XMV4140 (UNIT ID=30) MTX5-D/MY4-AEC System Setup Manual...
- Page 13 The MTX5-D provides two types of FBS: DYNAMIC and FIXED. In this project file, the DYNAMIC setting of the MTX5-D unit is turned on. As needed, use the “INPUT” screen to set the FBS setting to FIXED. For details on how to make this setting, refer to the “MTX Editor User’s Manual.”...
- Page 14 • If you want to connect recording/playback device To record, connect your device to the MTX5-D’s “OUTPUT” 7 connector. To play back, connect your device to the MTX5-D’s “ST IN” 2L connector. When recording, turn on the [ON] button of input channel STIN2L. When playing back, turn on the [ON] button of output channel OUT7.
- Page 15 4 ch 1 ch 1 ch 4 ch CODEC InputCh Matrix 1 ZONE 1 OutputCh ([OUTPUT] 1–4) 1–4 1–4 Near-end Mic FromFE: From Far-end NEVoice: Near-end Voice FEVoice: Far-end Voice TO FE: To Far-end Noise Reduction MTX5-D/MY4-AEC System Setup Manual...
- Page 16 In this example, the connections are as follows. Microphone Microphone Microphone Microphone MTX5-D (UNIT ID=01) RECORDER CODEC D Network Switch CODEC C CODEC B Computer CODEC A XMV4140 (UNIT ID=30) MTX5-D/MY4-AEC System Setup Manual...
- Page 17 The MTX5-D provides two types of FBS: DYNAMIC and FIXED. In this project file, the DYNAMIC setting of the MTX5-D unit is turned on. As needed, use the “INPUT” screen to set the FBS setting to FIXED. For details on how to make this setting, refer to the “MTX Editor User’s Manual.”...
- Page 18 • If you want to connect recording/playback device To record, connect your device to the MTX5-D’s “OUTPUT” 7 connector. To play back, connect your device to the MTX5-D’s “ST IN” 2L connector. When recording, turn on the [ON] button of input channel STIN2L. When playing back, turn on the [ON] button of output channel OUT7.
- Page 19 Microphone 2 XMV4140 CODEC A Network Remote A Microphone 3 YDIF Analog IN MTX5-D Microphone 4 Analog IN/OUT Microphone 1 Meeting room ‘B’ Analog OUT Microphone 2 CODEC B Network Remote B Microphone 3 Microphone 4 MTX5-D/MY4-AEC System Setup Manual...
- Page 20 For locations that are listed as having “Non-adjustable parameter,” you should avoid using Dynamics-type components (Gate, Comp, Ducker) and adjusting the parameters of an operating system after it has been set up. Echo cancellation will no longer work effectively if you do so. MTX5-D/MY4-AEC System Setup Manual...
- Page 21 Meeting room ‘A’ Microphone Microphone Microphone Microphone RECORDER B RECORDER A MTX5-D (UNIT ID=01) CODEC A CODEC B Network Switch Microphone Microphone Microphone Microphone Computer Meeting room ‘B’ XMV4140 (UNIT ID=30) Meeting room ‘A’ Meeting room ‘B’ MTX5-D/MY4-AEC System Setup Manual...
- Page 22 The MTX5-D provides two types of FBS: DYNAMIC and FIXED. In this project file, the DYNAMIC setting of the MTX5-D unit is turned on. As needed, use the “INPUT” screen to set the FBS setting to FIXED. For details on how to make this setting, refer to the “MTX Editor User’s Manual.”...
- Page 23 For recording, connect your device to the MTX5-D’s “OUTPUT” 2 connector and 5 connector (2 is meeting room ‘A’, and 5 is meeting room ‘B’). For playback, connect your device to the MTX5-D’s “ST IN” 2L/2R connectors (2L is meeting room ‘A’, and 2R is meeting room ‘B’). When you record, turn on the [ON] button of input channels STIN2L/STIN2R.
- Page 24 Reduces steady-state noise from sources such as a projector or air conditioning unit in From Far-end the remote location. Reduces steady-state noise from sources such as a projector or air conditioning unit in To Far-end the local location. C.S.G., PA Development Division © 2013 Yamaha Corporation 312PO-A0 MTX5-D/MY4-AEC System Setup Manual...
