Installation Guide
Quick Adapter USB-C/RJ45 OAX00
iC2-Micro Frequency Converters
1 Installation and Usage
Description
1.1
This installation guide explains how to install and use the Quick Adapter USB-C/RJ45 OAX00 with iC2-Micro Frequency Converters.
Item Supplied
1.2
Quick Adapter USB-C/RJ45 OAX00 (code number: 132G0326)
l
Product Overview
1.3
1

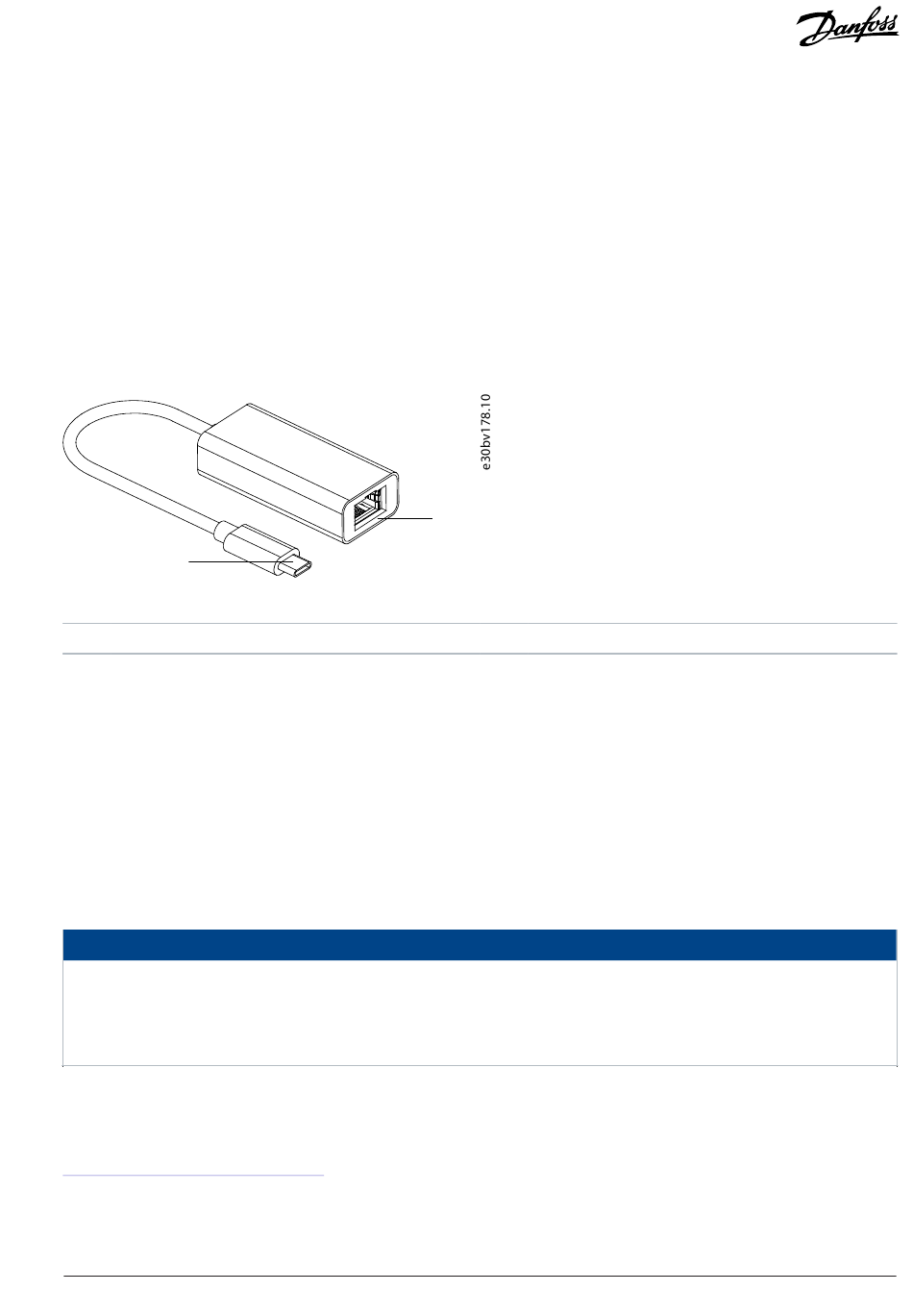

Figure 1: Quick Adapter USB-C/RJ45 OAX00
1
USB-C connector
Safety Precautions
1.4
Only qualified personnel are allowed to install the Quick Adapter USB-C/RJ45 OAX00 described in this installation guide.
For important information about safety precautions for installation, refer to the operating guide of the iC2-Micro Frequency Converters.
Installation
1.5
Establish the connection between a device (for example, a PC) and an iC2-Micro drive via the Quick Adapter USB-C/RJ45 OAX00 as
follows:
Connect the USB-C connector on the Quick Adapter USB-C/RJ45 OAX00 to the device.
l
Connect the Quick Adapter USB-C/RJ45 OAX00 and the iC2-Micro drive with an Ethernet cable (shielded CAT5e cable is
l
recommended) via RJ45 ports.
The Ethernet cable is not provided with the Quick Adapter USB-C/RJ45 OAX00, the following shielded cable options are available
from Danfoss and can be purchased separately.
1.5 m (4.9 ft) cable option (code number: 132G0237)
l
3 m (9.8 ft) cable option (code number: 132G0238)
l
Preparation
1.6
Normally, it is driver-free for the Quick Adapter USB-C/RJ45 OAX00 connecting to a device with Windows operating systems. Make sure
that the Quick Adapter USB-C/RJ45 OAX00 can be found in the device, if not, download the latest driver (CP210x windows driver) from
https://www.silabs.com/interface-software
Danfoss A/S © 2024.03
2
2
NOTICE
and install.
RJ45 port
AN470345987674en-000101 / 130R1391 |
