PRODUCT AND GUI MANUAL
SL POWER
EASY CHARGER WIZARD
PRODUCT AND GUI MANUAL

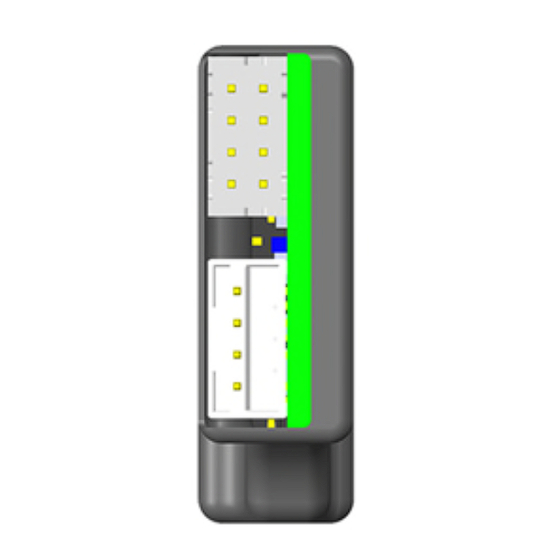

Three-Stage Battery Charger Kit
Advanced Energy's SL Power Easy Charger Wizard is a
flexible kit to make power converters a three-stage battery
charger, which can easily fit all frequently used battery types
and different battery voltages.
AT A GLANCE
Applied Models
TF800,TF1500,TF3000
Dimensions
35 x 29 x 9.5 mm
©2023 Advanced Energy Industries, Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Advanced Energy SL Power Easy Charger Wizard
- Page 1 EASY CHARGER WIZARD PRODUCT AND GUI MANUAL Three-Stage Battery Charger Kit Advanced Energy’s SL Power Easy Charger Wizard is a AT A GLANCE flexible kit to make power converters a three-stage battery charger, which can easily fit all frequently used battery types and different battery voltages.
-
Page 2: Table Of Contents
Easy Charger Wizard TABLE OF CONTENTS Section 1 Packing Information Section 2 Warning Section 3 Functions & Features 3.1 Easy Charger Wizard 3.2 SMPS Features Section 4 Installation Notice 4.1 Hardware Installation Single Unit Installation Parallel Units Installation 4.2 Charger Wizard Charging Curve Setting RS232 Charger Wizard GUI Interface Software GUI Main Page... -
Page 3: Packing Information
Easy Charger Wizard SECTION 1 PACKING CONFIGURATION The package of Easy Charger Wizard is consisted of below items: Charger Wizard Board Cable 1 (Refer to section 6) TF series power supply and TF-201 (RS232 communication board) are needed to work with Easy Charger Wizard. -
Page 4: Warning 1
Easy Charger Wizard SECTION 2 WARNING Warning 1 You must check the wiring length and gauge to avoid data loss. AC Input Interface Item SMPS Terminal TF800 Series TF1500 Series TF3000 Series AC Terminal L Black Black Black Wire Color AC Terminal N White White... - Page 5 Easy Charger Wizard SECTION 2 WARNING Warning 2 You must check charging voltage / current setting and suitable charging voltage / current according to battery type and spec to avoid damage to the battery. Warning 3 If the Charger Wizard is pulled out by external force, the TF series will restore the original power supply status (Make sure to power off the power supply before installing or removing the Easy Charger Wizard) Warning 4 Make sure the Easy Charger Wizard is installed in the correct direction before power on to avoid possible...
-
Page 6: Functions & Features
Easy Charger Wizard SECTION 3 FUNCTIONS & FEATURES Easy Charger Wizard Charger Suggestion Table Battery Voltage 12 V 24 V 48 V Charging 25 - 50 51 - 100 101 - 200 13 - 25 26 - 50 51 - 100 6 - 13 14 - 25 26 - 50... -
Page 7: Smps Features
Easy Charger Wizard SECTION 3 FUNCTIONS & FEATURES The software can automatically detect the model name connected, and allow you to control the output voltage and current within supported spec. and select the suitable battery type. Memorize charging curve setting •... -
Page 8: Installation Notice
Easy Charger Wizard SECTION 4 INSTALLATION NOTICE Hardware Installation 4.1.1 Single Unit Installation TF-211 TF-201 Step 1: Set up TF series power supply with proper wiring. (Make sure the AC is off during wiring process.) Step 2: Make sure to connect power supply DC wire before connecting battery. Step 3: Make sure to check battery spec. - Page 9 Easy Charger Wizard SECTION 4 INSTALLATION NOTICE Step 5: Install Easy Charger Wizard to SMPS front panel. (Connection diagram as shown below, please be aware of reverse connection.) Step 6: Connect cable 1 to 4-pin connector of Charger Wizard. Step 7: Connect the white 24-pin connector of cable 1 to communication board, TF-201. Step 8: AC power on.
-
Page 10: Parallel Units Installation
Easy Charger Wizard SECTION 4 INSTALLATION NOTICE 4.1.2 Parallel Units Installation Step 1: Connect the AC wiring of multiple PSU together. (Make sure to switch off the AC power first before installation.) Step 2: Make sure every PSU must complete steps 2 to 9 in the Single Unit Installation. •... - Page 11 Easy Charger Wizard SECTION 4 INSTALLATION NOTICE For Example: When charging a 48V battery, during BULK (C.C) condition, the output voltage of PSU will increase to 57.6V. In this condition, the output voltage of each unit must set to 57.6V and voltage difference of each PSU must less than 0.2V.
-
Page 12: Charger Wizard Charging Curve Setting
Easy Charger Wizard SECTION 4 INSTALLATION NOTICE Charger Wizard Charging Curve Setting It’s also easy to change default settings of Easy Charger Wizard with RS232 or the Charger Wizard GUI. 4.2.1 RS232 Connectivity and necessary equipment (Refer to section 4.1) •... -
Page 13: Parameter Setting Description
Easy Charger Wizard SECTION 4 INSTALLATION NOTICE 4.2.4 Parameter Setting Description A. Read Charger Wizard setting B. Save the Easy Charger Wizard setting to EEPROM C. Transfer the setting values of the software on the PC to the Easy Charger Wizard D. -
Page 14: Three Step Plus Charge System
Easy Charger Wizard SECTION 4 INSTALLATION NOTICE J to M. ABSORPTION (C.V) Parameter: Fixed charging voltage is 'J' in ABSORPTION mode • Conditions to enter the FLOAT Mode (either one): • When the time in this mode exceeds 'L’. When the charging current is less than 'K', and the time will remain per setting 'M'. N, O, Q, R. -
Page 15: Function Setting Page
Easy Charger Wizard SECTION 4 INSTALLATION NOTICE 4.2.6 Function Setting Page A. Communication port setting B. Battery voltage setting C. Reset D. Load the previously stored settings parameter file E. Save parameters to the file F. Battery voltage protection mode (Disable = Turn off, Enable = Turn on ) G. -
Page 16: Led Indicator
Easy Charger Wizard SECTION 5 LED Indicator Failure Indicator Failure Description LED Status EEPROM checksum fail Solid red EEPROM null Red slow every 3 secs Over current or over voltage Red light twice flash every 3 secs Charging voltage or current setting over power Red light flash three times every 3 secs supply’s rated voltage or current Battery voltage detected is not within the set range... -
Page 17: Hardware Specifications
Easy Charger Wizard SECTION 6 HARDWARE SPECIFICATIONS Dimensions 35 x 29 x 9.5 mm Cable 1 Description Pin. No. Function Pin. No. Function 1 to 20 +5V/0.5A or +9V/0.3A auxiliary power Ground For RS232 receiver function For RS232 transmission function Cable 2 advancedenergy.com Rev. -
Page 18: Warranty
RMA (Return Material Authorization) service. Please note that Advanced Energy will ensure our products are operational before delivery and the warranty service is offered to the unit which has defect caused under normal use, in the judgment of Advanced Energy’s technician. The warranty is null and void under the following circumstances：... -
Page 19: Record Of Revision And Changes
Easy Charger Wizard SECTION 8 RECORD OF REVISION AND CHANGES Issue Date Description Originators 03.16.2023 First Issue A. Zhang advancedenergy.com Rev. 03.16.23_#1.0... - Page 20 For international contact information, visit advancedenergy.com. Specifications are subject to change without notice. Not responsible for errors or omissions. ©2023 Advanced Energy Industries, Inc. All rights powersales@aei.com (Sales Support) reserved. Advanced Energy®, and AE® are U.S. trademarks productsupport.ep@aei.com (Technical Support) of Advanced Energy Industries, Inc.
