Summary of Contents for Europlast eextra EE Series

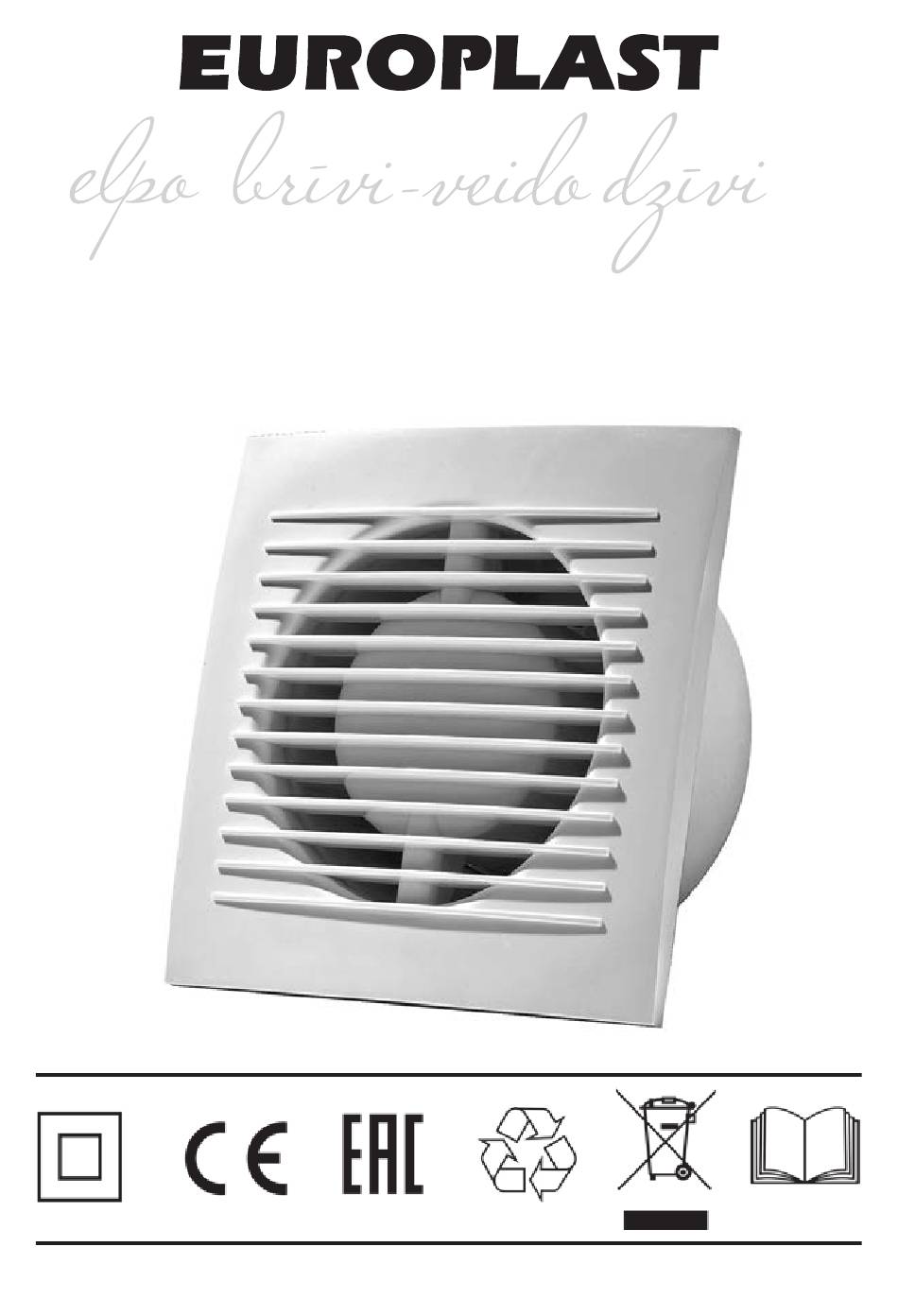

  • Page 1 Model eextra Series EE www.europlast.lv...
  • Page 2 Zīm. 1a Zīm. 1b Zīm. 2 N- 0 N- 0 L- Phase L- Phase S- Switch S- Switch 220-240V~ 240V~ 220-240V~ 220-240V~ 220-240V~ 220-240V~ 220-240V~ 220-240V~ 220-240V~ Zīm. 3 Zīm. 4 Zīm. 5 Zīm. 6 Zīm. 7...
  • Page 3 Opgelet! Vóór de installatie en het gebruik van de ventilator de gebruiksaanwijzingen goed doorlezen! Opgelet! Bij het uitpakken van de ventilator ga na of er geen zichtbare beschadiging is. Opgelet! Houd het aankoopbewijs bij samen met de afgestempelde garantie, om een klacht in te dienen. Zonder bovengenoemde is garantie niet toegestaan.
  • Page 4 Lager B De ventilator is bijkomend uitgerust met twee kogellagers in de elektromotor. Schakelaar en kabel WP De ventilator, die met een trekschakelaar en kabel uitgerust is, wordt aan het elektrisch netwerk aangesloten. De ventilator wordt aan- en uitgeschakeld door aan het koord aan de onderkant van de ventilator te trekken. Timer T De ventilator kan met een elektrisch schakelaar S1 (afb.4) aangezet worden of samen met het licht (afb.5).
  • Page 5 Caution! Read the manual carefully before installing and using of the fan. Caution! Make sure that there are no visual defects when unpacking the fan. Caution! We do recommend you to save the bill of purchase with stamped guarantee coupon, for the purpose of possible reclamation.
  • Page 6 Bearing B In addition, the fan is equipped with two ball bearings inside of the electric motor. Switch and Cable WP A fan that is equipped with a pull-down switch and cable shall be connoted to a power outlet. The fan is turned on and off by pulling down the string that is located on the bottom of the fan.

This manual is also suitable for:

Eextra ee100Eextra ee120Eextra ee125Eextra ee150
