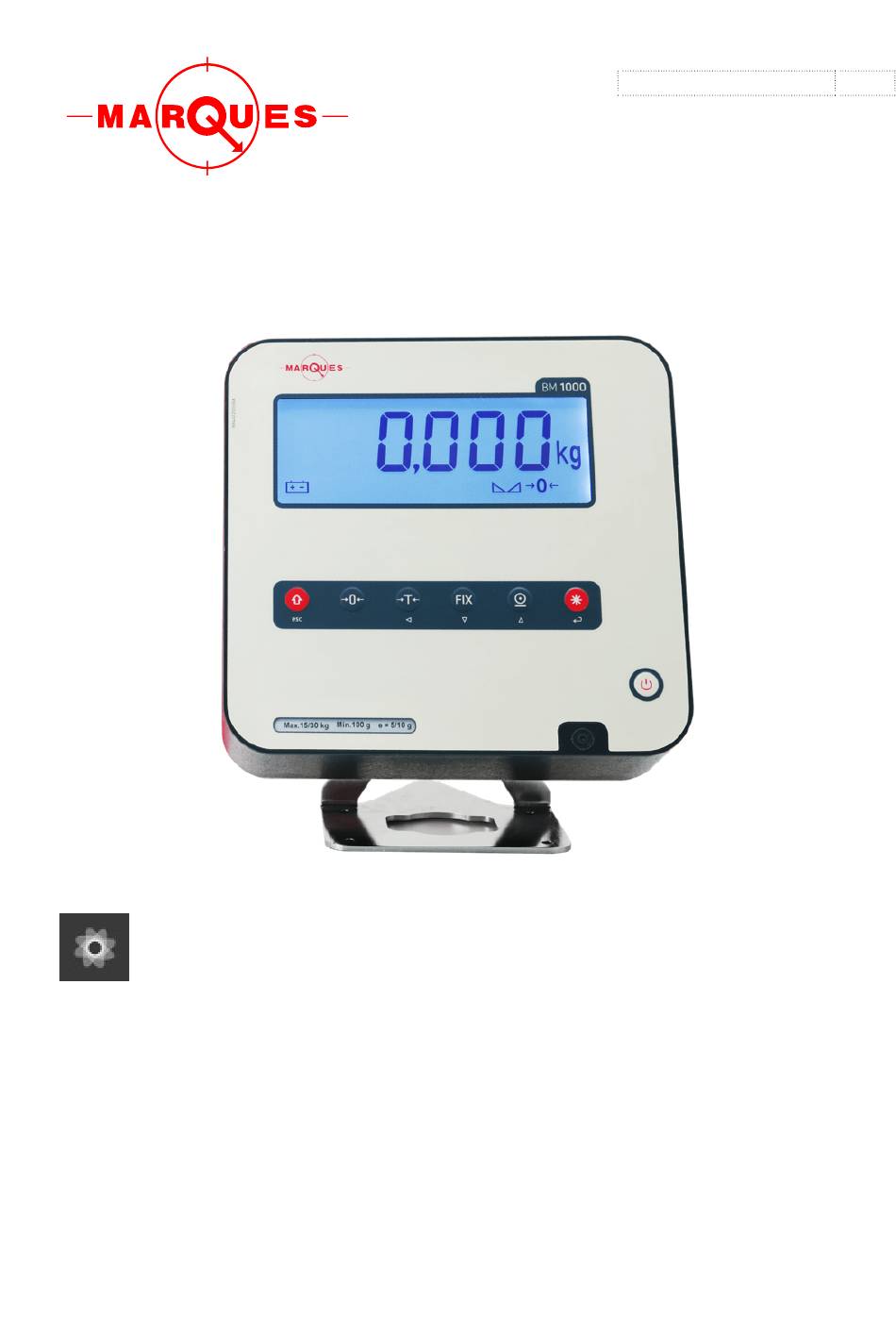

- Page 1 USER GUIDE | BM1000 BALANÇAS MARQUES WEBSITE DOC. WEIGHING A NEW WORLD WWW.BALANCASMARQUES.COM Nov 2023...
-
Page 3: Table Of Contents
User Guide | BM1000 Table of Contents Click on an item to access directly Overview ♦ First Use ♦ Upkeep ♦ Abilities ♦ Interface: Display ♦ Interface: Keypad Operation ♦ Turning on the device ♦ Tares ♦ Grand Total Operating Modes ♦... -
Page 4: Overview

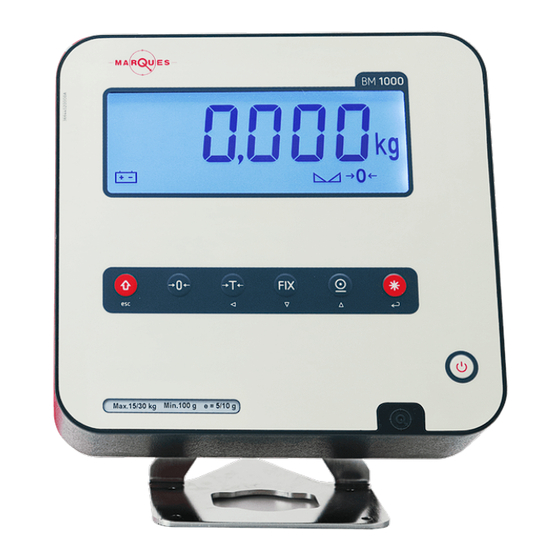

User Guide | BM1000 Overview The BM1000 indicators are weighing indicators with several features appropria- te for industrial use, including tares, printing tickets, counting scale mode, etc. FIRST USE These indicators are supplied as a part of a full weighing equipment. Any addi- tional configuration (for instance, communication) will have to be done tailored to the needs of the user. -
Page 5: Abilities
♦ Communicate via several protocols; ♦ Alternate between two platforms*; The existence of these features will ♦ Connect via WiFi and Bluetooth*. depend on the BM1000 model; it isn't possible to add these features afterwards. INTERFACE | DISPLAY When in a neutral state, ready to perform weighings, the display can show infor- mation other that the weight;... -
Page 6: Interface: Keypad
User Guide | BM1000P TOP INTERFACE | KEYPAD The 7-key pad provides a way to navigate through the menus and settings, often using specific key combinations; some of the keys have a secondary indication for this reason. Turns the device on or off, when pressed for 2s ON / OFF Cancels operations and goes back in menus SHIFT / ESCAPE... -
Page 7: Operation
User Guide | BM1000 Operation TURNING THE INDICATOR ON To turn it on: press the button for two second; the indicator will sound a ON/OFF signal, and then run a test to check whether it’s working properly. This includes a countdown of all digits from 9 to 0. Some hyphens will be displayed still, and only when the displays proceeds to displaying zeroes can one start weighing: ✓... -
Page 8: Operating Modes
User Guide | BM1000 Operating Modes The indicator can operate in different modes (MODF), which can be activated in the menu 6 of settings; some, like counting scale, can be activated using short- cuts. The operating modes are the following:... -
Page 9: Modf-3 | Remote
REMOTE MODE | MODF-3 This mode establishes a repetition behaviour, which establishes the remote in- teraction with another BM1000 indicator. It’s possible to view the information of the first indicator and also emulate its keys as if it were the main indicator. -
Page 10: Printing
User Guide | BM1000 Printing Printing stands for the sending of information from the indicator to another device, or by printing it physically in a ticket. The way this is done will depend on the modes of communication that have been set up and selected in the device. -
Page 11: Settings And Programming
User Guide | BM1000 Settings and Programming The settings for the indicator can be accessed via the settings button (seen on prog-1 the right) held for two seconds. WEIGHT PARAMETERS There are three weight-related adjustable parameters allowed by the indicator: STABILITY | This refers to the necessary criteria for a weighing to be considered stable;... - Page 12 User Guide | BM1000P TOP ♦ Automatic Printing ♦ Counting Scale Mode Settings Shared ♦ Communication Rate Parameters ♦ Quilo Protocol ♦ Weight Messages ♦ Comms Protocol ♦ Baud Rate Channel 1 ♦ Number of bits Parameters ♦ Ticket Width ♦...
- Page 13 User Guide | BM1000P TOP QUILO PROTOCOL Inactive qilo Active Activates the use of the exclusive quilo protocol, which est ablishes the communication with some types of devices and applications (e.g.: remote setup of the indicator from a computer, or the remote access to the weight).
- Page 14 User Guide | BM1000P TOP 7 bits NUMBER OF BITS BITS 8 bits The 7-bit mode automatically places two stop bits; 8 bits corres- pond to one stop bit. PARITY No parity Even aIMP TICKET WIDTH 32 column ticket 40 column ticket 40 column ticket, double width PRINTER Printer...
-
Page 15: I/O Parameters [Prog-3]
User Guide | BM1000P TOP I/O PARAMETERS prog-3 The I/O parameters refer to the option settings for the indicator’s input and ou- tput channels: RELAYS | A relay is a switch, which means it can only be on or off. Its activation may depend on a number of variables, which are the settings that can be determined in these menus. -
Page 16: Operating Mode And Language [Prog-6]
User Guide | BM1000P TOP OPERATION MODE AND LANGUAGE Prog-6 This section contains the following costumizable parameters: Normal Mode Counting Scale Mode Operation Mode (selecting one Remote Mode activates it) Automatic Weighing with Discontinuous Totalizer Chromatic Levels of Weighing Always on Turns off after 20s of inactivity Always off Display... -
Page 17: Ticket Parameters [Prog-7]
User Guide | BM1000P TOP TICKET PARAMETERS Prog-7 Configuration of the ticket header, using the numeric keypad to insert the in- tended characters. The system is similar to keypad mobile phones, in which the keys will correspond to different letters – it’s possible to see which ones in the face of the indicator (1 is for punctuation). -
Page 18: Character Correspondence
User Guide | BM1000P TOP Character Correspondence ASCII ASCII ASCII [espaço] " " & & < < ç > Ç > Nov 2023... -
Page 20: Technical Specifications
BM1000 | Dossier Técnico User Guide | BM1000P TOP Technical Specifi cations METROLOGICAL DETAILS Class Number of verifi cation scale intervals ≤ 6000 Load cell excitation power supply (V DC) 5 V DC Maximum signal voltage for dead load (mV) -
Page 21: Physical Characteristics
User Guide | BM1000P TOP Technical Support | BM1000 Physical Characteristics DESCRIPTION OF THE INDICATOR'S PHYSICAL COMPONENTS COM2 COM1 Cell connector / Plataform 2 Cell connector / Plataform 1 Reserved Conector / Feed I/O Option Plate of characteristics Seal Adjust Seal... - Page 22 BM1000 | Dossier Técnico User Guide | BM1000P TOP I/O CONNECTORS LAYOUT DO NOT GO OVER THE SPECIFIED VOLTAGE OR CURRENT LIMITS: 250V AND 100MA MAX PER CONTACT! The necessary current for the current loop to work must be generated externally.
-
Page 23: Messages And Protocols
Weight Weight R TYPE MESSAGE This message is used mostly when a BM1000 indicator is being used as a repeater. Structure of the R D6 D5 D4 D3 D2 D1 A6 A5 A4 A3 A2 A1 ST CR LF message R R character (ASCII 52h) D6-D1 Weight. - Page 24 User Guide | BM1000P TOP Dossier Técnico | BM1000 J TYPE MESSAGE Using this message requires the activation of FrmJ and Icn on PROG-2; see the programming section for more information. Structure of the J C C C C C C C ST K K K K K K CR LF...
- Page 25 BM1000 | Dossier Técnico User Guide | BM1000P TOP TISA PROTOCOL This protocol can be used to get a calculated price and weight having sent the cost per kg. It is used in Modes 3, 4 and 5 in the following logic: MODE 3 | Only responds to requests;...
- Page 26 [?] unstable P Weight RAFELS PROTOCOL Protocol used only on BM1000 TOP/BMX1, on MODE 14. When the RAFELS mode is selected, weight can be sent automatically or by request. Its operation depends on three parameters: PZER, PMIN and PAUT. Weight below...
- Page 27 User Guide | BM1000P TOP Dossier Técnico | BM1000 ASCII CHARACTER TABLE space Nov 2023 Nov 2023...
- Page 28 Soluções diversificadas para a Indústria e Comércio. Diversified solutions for Industry and Commerce. Solutions diversifiées pour l’Industrie et le Commerce. Soluciones diversificadas para la Industria y el Comercio.
