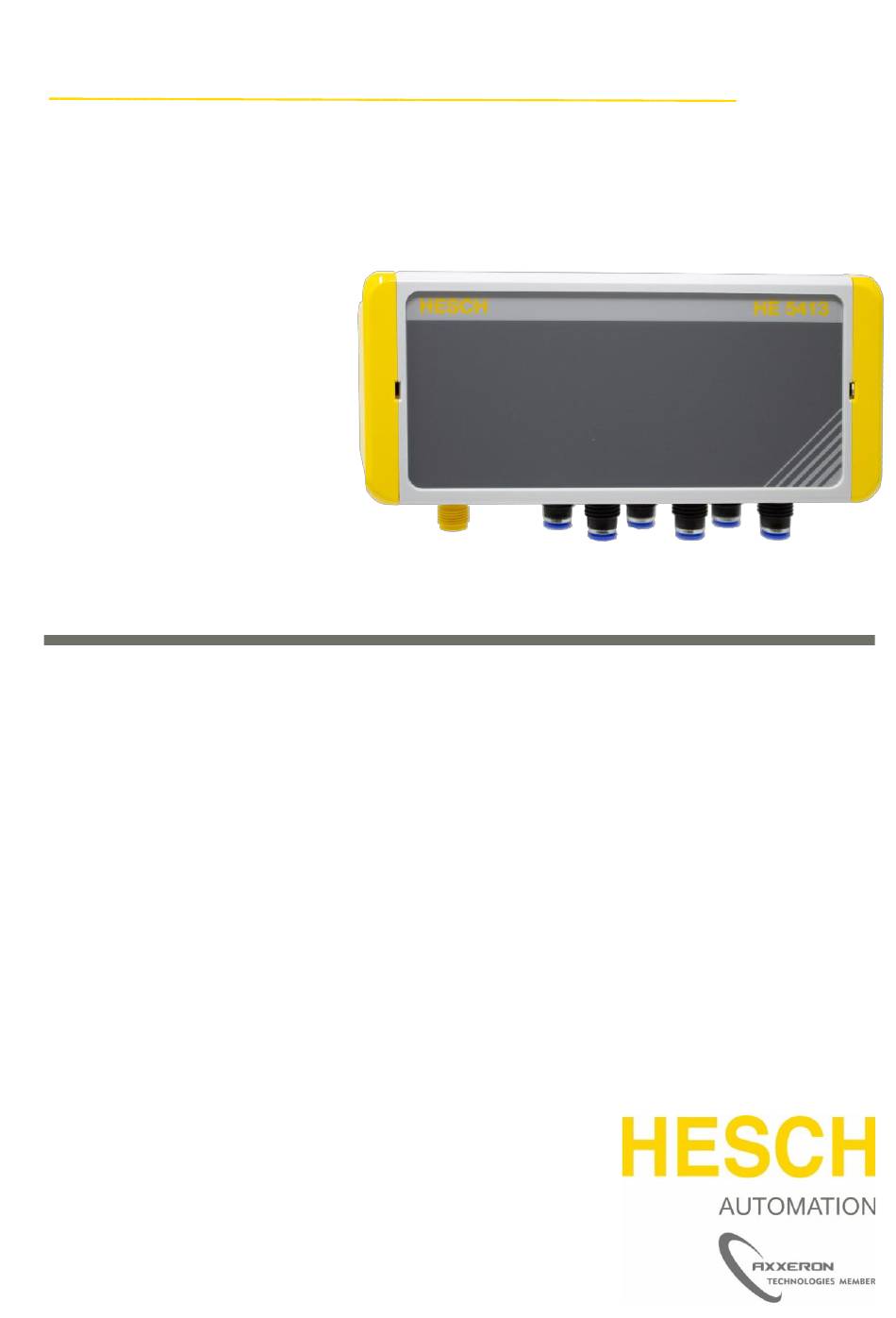

- Page 1 HE 5413 3-channel dp-measuring transducer Quick guide (Translation of Original German version) #340435 | Version 1.1...
- Page 2 AXXERON HESCH electronics GmbH, documentation department Copyrights © Copyright 2024 AXXERON HESCH electronics GmbH. All rights reserved. The content including pictures and the design of this quick guide are subject to copyright protection and other laws for the protection of intellectual property.
-
Page 3: Table Of Contents
Table of contents LEGAL PROVISIONS ........................... 4 SAFETY INFORMATION ..........................5 ...................... 5 YMBOLS AND ASIC AFETY NSTRUCTIONS ............................5 IGNAL ORDS ....................6 AFETY IN THE INDIVIDUAL OPERATING PHASES TECHNICAL DATA ............................7 DEVICE DESCRIPTION ..........................9 ......................10 OSITION OF THE DEVICE IDENTIFICATION MOUNTING ............................ -
Page 4: Legal Provisions
Legal Provisions Manufacturer AXXERON HESCH electronics GmbH, Boschstraße 8, 31535 NEUSTADT, GERMANY Intended use The 3-channel dp-measuring transducer is used for measuring up to 3 differential pressures and is mainly applied in the dust extraction and ventilation industry. ... -
Page 5: Safety Information
Safety Information Symbols and Basic Safety Instructions This chapter contains important safety regulations and notes. For protection against personal injury and material damage, it is necessary to read this chapter carefully before working with the device. Symbols used The following symbols are used in this quick guide. All safety instructions have a uniform structure. -
Page 6: Safety In The Individual Operating Phases
At the beginning of troubleshooting, all possible sources of faults on additional devices or supply lines (measuring lines, wiring, downstream devices) should be taken into consideration. If the fault is not found after checking these points, we recommend sending the device to AXXERON HESCH electronics GmbH. Decommissioning! Switch off the power supply on all poles, for decommissioning the device. -
Page 7: Technical Data
Technical Data General 19…30 V DC with reverse voltage protection (currently) Supply voltage The supply must be provided by a SELV (Safety Extra Low Voltage) or PELV (Protective Extra Low Voltage). Power consumption max. 5 W According to DIN-EN 61010-1, DIN EN 61010-2-201 Electrical Safety Immunity: DIN EN 61000-6-2 Emission: DIN EN 61000-6-3... - Page 8 Environmental conditions Storage -40°…+70°C Transport -40°…+70°C -20°…+50°C Operation 3K6 according to DIN EN 60721-3 with restriction, Climatic application class relative humidity: 75% annual average, no condensation permitted Condensed water not permitted Formation of ice not permitted Max. operation height 2000 m above NN Air pressure: During operation and...
-
Page 9: Device Description
There is a service interface on the circuit board (see Figure 1) for connecting the HIMOD interface adapter (AXXERON HESCH item number #58513007). Firmware updates can be carried out via this interface. Service interface RJ10... -
Page 10: Position Of The Device Identification
Channels 1 … 3 Figure 2 Position of the device identification Figure 3 Position of the device identification HE 5413 Quick guide #340435 | Version 1.1... -
Page 11: Mounting
HE 5413 3-channel dp-measuring transducer Quick guide Note! Check the delivery upon receipt for completeness and visible defects. In case of a complaint, contact your responsible service representative of AXXERON HESCH electronics GmbH immediately. HE 5413 Quick guide #340435 | Version 1.1... -
Page 12: Opening The Device
Open the housing lid to the left up to an angle of 105° (see step 3 in Figure 5). Optionally, the housing lid can in addition be closed with 4 screws to protect it from unauthorised access. For further information, please contact the service of AXXERON HESCH electronics GmbH (see chapter 8 Maintenance and Service). -
Page 13: Mounting The Device
Rear of the housing Note! Alternatively the wall mounting can be done with wall brackets. For further information, please contact the service of AXXERON HESCH electronics GmbH (see chapter 8 Maintenance and Service). HE 5413 Quick guide #340435 | Version 1.1... -
Page 14: Electrical Commissioning
Electrical Commissioning Danger of Electrocution! Electrical installation must only be carried out when the power is disconnected. Material damage due to electrostatic charge! Observe the safety measures according to DIN EN 61340-51/-3 to avoid electrostatic discharge! Material damage due to wrong supply voltage! The power supply must correspond to the voltage indicated on the nameplate. -
Page 15: Electrical Connection Via M12 Connector Plug
Electrical connection via M12 connector plug Note! The channels 1, 2 and 3 are not galvanically separated from each other in devices with M12 connector plug. M12 connector plug, 5-pin, A-coded Figure 7 Electrical connection via M12 connector plug HE 5413 Quick guide #340435 | Version 1.1... -
Page 16: Assembly Of Measuring Hose To Pressure Connection
Pin assignment: Figure 8 Connection diagram with M12 connector plug Contact Designation Colour +24 V supply Brown Channel 1 Black Channel 2 Grey Channel 3 White GND supply Blue Assembly of measuring hose to pressure connection 1. Push 2. Pull hose Figure 9 Assembly of hose onto push-in bulkhead fitting Hose connection... -
Page 17: Display Elements
Display elements LEDs on main PCB Status LED on dp module Figure 10 LEDs LEDs Meaning On main PCB: LED operation Lights up green permanently, when a supply voltage is applied. LED status Lights up yellow permanently, when the device is operating. Flashes quickly, when the controller is in the boot loader (start programme). -
Page 18: Maintenance And Service
Dispatch metals and plastics for recycling. Electrical and electronic components must be collected separately and disposed of properly. Dispose of equipped printed circuit boards properly. Service AXXERON HESCH electronics GmbH Boschstraße 8 31535 NEUSTADT, GERMANY Phone: +49 5032 9535-0 Web: www.hesch-automation.com...
