Summary of Contents for MyWam go.spider

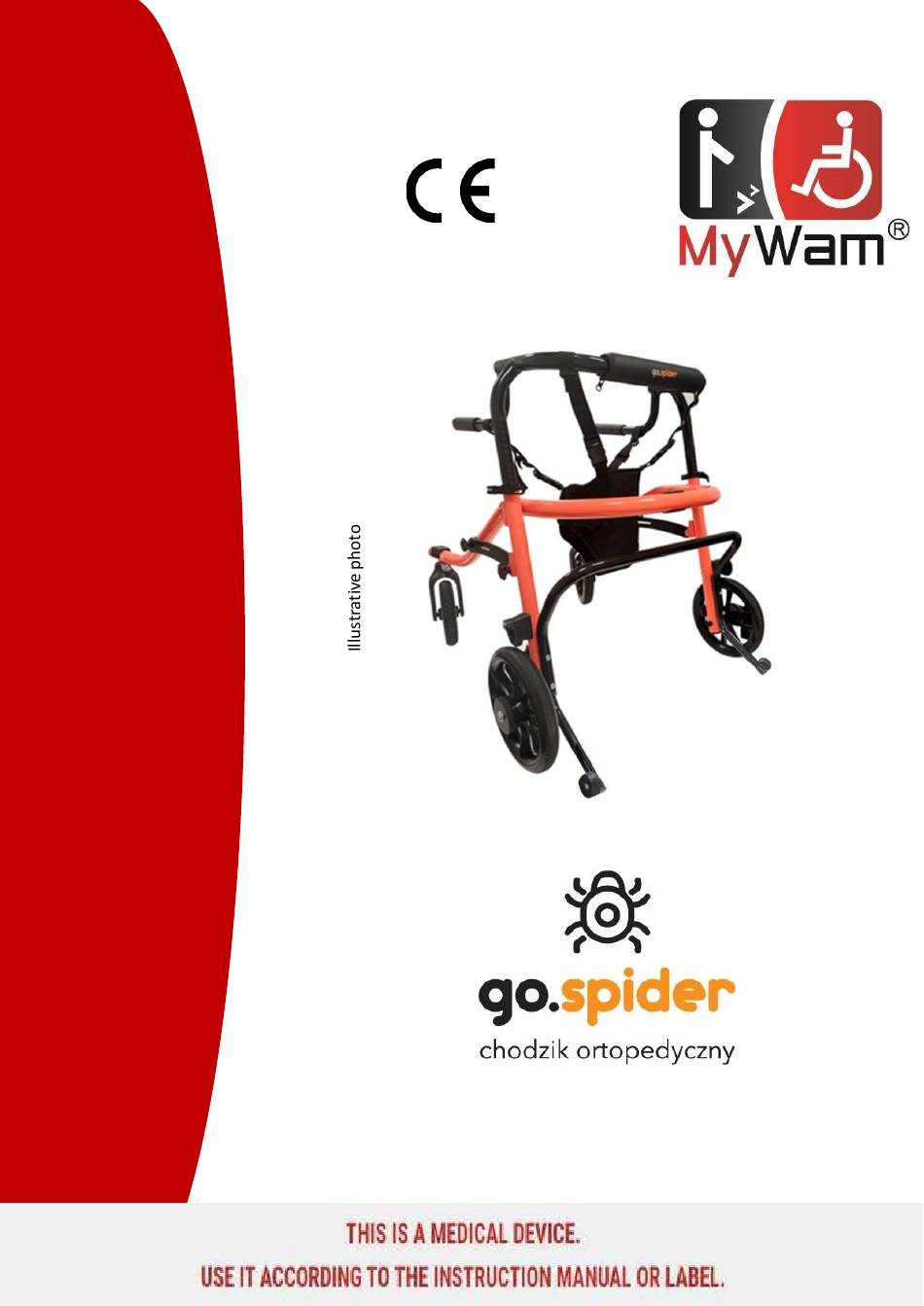

- Page 1 MANUFACTURER / MARKETING AND ADVERTISING: MyWam LLC Operation and maintenance manual Edition 5 / 2023-12-05 S t r o n g...
- Page 2 Version of the Operation and Maintenance Manual: EN Edition 5 / 2023-12-05 MyWam LLC reserves the right to make technical and commercial changes to the contents of the Operation and Maintenance Manual without prior notice. Each change will be identified by the date of the last update of the manual.
-
Page 3: Table Of Contents
Orthopedic walker go.spider Edition 5 / 2023-12-05 Table of contents Purpose and indications for use of go.spider orthopedic walker ..............4 ▪ Security .................................. 4 Important safety tips and rules ........................4 Plates ................................5 Symbol designation ............................5 ▪... -
Page 4: Purpose And Indications For Use Of Go.spider Orthopedic Walker
1. Purpose and indications for use of go.spider orthopedic walker The go.spider orthopedic walker is a Class I medical device, indicated for use by those disabled persons who cannot walk and/or stand independently due to their condition. It provides a specialized therapeutic system to assist the patient in re-education/learning of gait. -
Page 5: Plates
Orthopedic walker go.spider Edition 5 / 2023-12-05 3. Plates Nameplate UDI code plate Warning plate 4. Symbol designation Product serial number Manufacturer name Permissible total weight The product in question is a medical device user DESCRIPTION "WARNING!" and the symbol... -
Page 6: Configuration And Use - Orthopedic Walker Frame
Edition 5 / 2023-12-05 Orthopedic walker go.spider • Accessory equipment ✓ Attendant quide bar (see paragraph 7.1) ✓ Armrests (see paragraph 7.2) ✓ Pelvic support (see section 7.3) ✓ Solid seat (see section 7.4) ✓ Hand brakes (see section 7.5) 6. -
Page 7: Assembling The Frame Of The Walker
Edition 5 / 2023-12-05 Orthopedic walker go.spider 6.3. Assembling the frame of the walker To assemble (close) the frame of the walker, follow the figures below. After assembling the walker, press down on the end of the spreader so that the bolt and nut are in the indentation, which will prevent the walker from unfolding on its own, while moving it. -
Page 8: Reverse-Roll Lock
Edition 5 / 2023-12-05 Orthopedic walker go.spider To turn on the rear wheel friction brake, follow Figure 2 (tightening clockwise increases the braking force, both wheels should be set to the same rolling resistance), and to turn off, follow Figure 3. -
Page 9: Safety Harness
Edition 5 / 2023-12-05 Orthopedic walker go.spider 6.8. Safety harness The safety harness relieves pressure on the child's torso. Install the harness as shown in Figure 2. Fig. 1 Fig . 3 Fig. 2 6.9. Support handles Height adjustment - see. 6.7 Spacing adjustment - see Fig. -
Page 10: Anti-Tip Supports
Edition 5 / 2023-12-05 Orthopedic walker go.spider 3 - Incorrect adjustment 4 - Correct adjustment 6.10. Anti-tip supports To install the anti-tip supports, screw them on both sides at the location marked in the figure. 7. Accessory equipment 7.1. Attendant guide bar To install the belay handle, it must be screwed on both sides at the location marked i n Figure 1. -
Page 11: Armrests
Edition 5 / 2023-12-05 Orthopedic walker go.spider 7.2. Armrests To install the armrests, unscrew the support brackets (Figure 1) using an allen wrench (included). Then screw the armrests in their place using the same wrench according to Figure 2. Fig. 1 Fig. -
Page 12: Handbrakes
(if any of the components are missing, contact the Seller). The equipment of the go.spider orthopedic walker allows to adjust it to the personal requirements of the user. To do this, read the entire manual carefully before using it. -
Page 13: Assembly And Disassembly Of The Walker
Edition 5 / 2023-12-05 Orthopedic walker go.spider No tools are required to assemble and disassemble the go.spider orthopedic walker. An allen wrench is required to adjust the width of the support handle spacing. 10. Assembly and disassembly of the walker •... -
Page 14: Use Of The Walker
12.4. Transportation in the car and in other vehicles • To transport the go.spider orthopedic walker in a car, dismantle the walker (see Chapter 10) and place it in the trunk. If the dismantled walker is not in the trunk of the car separate from the passenger compartment, the frame of the walker must be carefully secured to the vehicle. -
Page 15: Storage Of The Walker
14 "every one month". 14. Service and periodic inspections For safe and trouble-free use of the go.spider orthopedic walker, it is necessary to have it regularly and thoroughly inspected and serviced by dedicated service centers. -
Page 16: List Of Authorized Service Points
Edition 5 / 2023-12-05 Orthopedic walker go.spider 17. List of authorized service points Poland MyWam LLC 41-500 Chorzów, Lwowska 34 street, Poland tel: +48 32 733 11 31 strona internetowa: www.mywam.eu adres e - mail: serwis@mywam.eu Page | 16... - Page 17 Edition 5 / 2023-12-05 Orthopedic walker go.spider Page | 17...
-
Page 18: Warranty Card
Edition 5 / 2023-12-05 Orthopedic walker go.spider 18. Warranty Card Series and number:......... Purchase date: ......- ......- ......Seller's stamp and signature: ......................................................................................................Warranty terms and conditions • The seller provides the buyer with a warranty for the purchased walker, for a period of 24 months, starting from the date of purchase. -
Page 19: Notes
Edition 5 / 2023-12-05 Orthopedic walker go.spider 19. Notes Page | 19...
