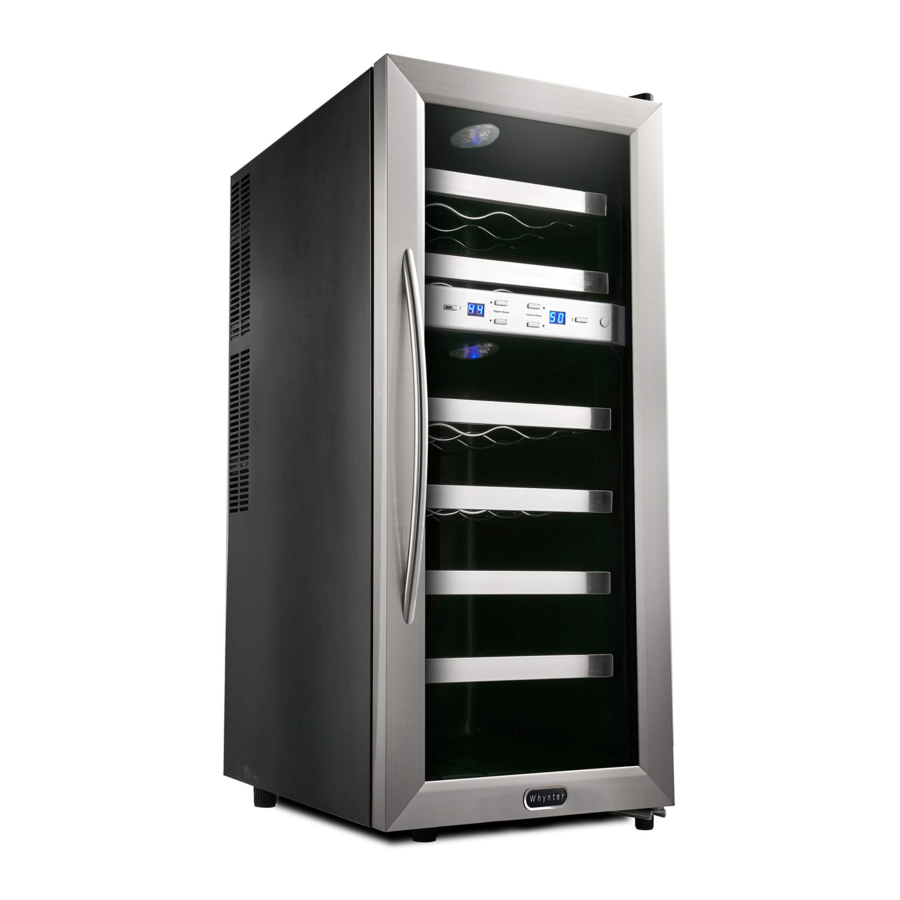

Whynter WC-211DZ - Wine Cooler Manual

Parts and Features

1. DOOR HINGE
2. INTERIOR LIGHT

3. TEMPERATURE CONTROLLER
4. TEMPERATURE DISPLAY

5. FAN MASK
6. WINE RACK

7. STANDS
   (NOTE: STAND UNDER THE FRONT DOOR HIGNE IS SMALL THAN THE OTHE 3 STANDS)
8. DOOR FRAME
9. TEMPERED GLASS DOOR
10. HANDLE BAR

Installation

Before using your wine cooler

• Remove the exterior and interior packaging material
• Stand the unit upright for approximately 2 hours before connecting to the power source. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with a soft cloth and warm water.
• Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded.
• Do not place the appliance in an enclosed space or under direct sunlight or sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase the ambient temperature and electrical consumption. Extreme cold or hot ambient temperatures may also cause the appliance to malfunction.
• Allow up to 24 hours of operation for the wine bottles to reach the desired temperature.

Electrical Connection

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by a qualified electrician.
This appliance should be properly grounded for your safety. The power cord of this unit is equipped with a 3-pin plug to minimize the possibility of electrical shock. Do not under any circumstances cut or remove the ground wine from the power cord supplied.
Use of extension cords is not recommended.
This unit requires a standard 110V-60HZ electrical outlet with 3-pin plug.
To prevent accidental injury, the power cord should be secured behind the wine refrigerator and not left exposed or dangling.

Operations

Temperature Setting
It is recommended that you install the wine cooler in a place where the ambient temperature is between (60- 80°F). If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing in extreme cold or hot conditions may cause interior temperature to fluctuate thus the set temperature may not be achievable.
You can set the wine cooler temperature by pressing the "" and "" buttons on the control panel.
Temperature settings for upper zone: 44ºF-66ºF (Left side control panel)
Temperature settings for lower zone: 50ºF-66ºF (Right side control panel)
Generally for red wines, the temperature range should be between 57ºF – 61ºF and for white wines, the temperature range should be 50ºF - 54ºF. This is based on an ambient room temperature of 77ºF.

Interior Light
You can turn on and off the interior light by pressing the "Light" button. The "Light" button on the left side controls the upper zone light and the "Light" button on the right side controls the lower zone light.

Handle Bars
Your wine cooler comes with a towel bar style handle. To install the handle, you will need a Phillips-head screwdriver.

• Open the door of the wine cooler.
• Located the two screw holes on the inside of the door (they may be partially obscured by the door seal so you may need to remove the door seal)
• Insert the screws into the screw holes until they stick out of the front of the door.
• Line up the holes in the handle with the screws and give each screw about 2-4 full turns into the handle bar.
• Now the turn the screws in all the way, and your handles are installed.  Replace seal into door frame.

Bottle Capacity
This wine cooler is designed to store 6 bottles in the upper zone and 15 bottles in the lower zone. The bottle capacity listed for your wine cooler is an estimated maximum capacity based on a standard 750ml wine bottle. For other size bottles, the capacity will vary.

Leveling Legs
Your wine cooler comes with four leveling legs. To adjust these legs, carefully lean the wine cooler to one side (make sure it is emptied and the door is secured) and unscrew the legs to make them longer. Screw the legs tighter to make them shorter. This wine cooler is not designed to operate without the leveling legs

Wine Racks
The individual wine racks have a slight difference between the top and a bottom of the racking. If you are having trouble fitting the maximum number of bottles of wine in the wine cooler, try flipping the wine racks over to accommodate the shape of the bottle.

Air Filter
Your wine cooler has a washable air filter over the air intake in the back. Periodically, this air filter should be cleaned. Remove the air filter and gently wash it in a solution of mild detergent and water. Make sure it is completely dry before installing it back to the air intake.

Energy Saving Tips
Do not locate the wine cooler in direct sunlight or any heat generating sources. Let any warm items cool before placing them in the wine cooler.

Care and Maintenance

Cleaning your wine cooler

• Unplug the wine cooler.
• Remove all items from the wine cooler.
• Wipe the inside and outside surface with a mild soap.
• Wash the wine racks with a mild soap.
• Dry any moist parts with a soft cloth.

Moving your wine refrigerator

• Unplug the wine cooler.
• Remove all items from the wine cooler.
• Securely tape the door of the wine cooler.
• Turn the leveling legs (tightly shorten) up to the base to avoid damage.
• Be sure the wine cooler stays in the upright position during transportation.
• The ideal packaging for the wine cooler is its original packaging. Please keep the original packaging and repack the wine cooler if you need to transport the unit.

Troubleshooting

You can solve many common problems by referring the troubleshooting suggestions listed below.

Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury when using your appliance, follows these basic precautions

• Do not use if the power supply cord is damaged. If damaged, it must be replaced by a qualified electrician.
• This wine cooler is not intended for use by young children or physicallychallenged persons without supervision/assistance. Young children must be supervised to ensure safety around this or any appliance.
• Ensure the unit is unplugged before cleaning or when not in use.
• To clean the unit, use only mild detergents or glass cleaning products. Never use harsh detergents or solvents.
• Do not use this wine cooler with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.
• When positioning the wine cooler, ensure that there is at least a 4" clearance at the sides and a 6" clearance at the back. This will allow for adequate ventilation of any heat generated by the freestanding wine cooler.
• This cooler is designed to store wine bottles. If food is stored inside, ensure that there is sufficient airflow between items. Please note that the temperature range for this cooler is optimized for wine and beverage storage. Perishable food items may require a different storage environment.
• Do not place hot food or beverages into the wine cooler.
• Close the cooler door immediately after putting in any items to keep the internal temperature relatively constant.
• Keep appliance away from any heat source or direct sunlight.
• For a stable installation, make sure the appliance is placed on a flat, level and solid surface.
• Ensure that the surface on which the wine cooler is placed is strong enough to hold the wine cooler and the items stored inside.
• Avoid placing any objects on top of the wine cooler.
• The wine cooler is an electrical appliance. To avoid injury from electrical shock do not operate the Wine Cooler with wet hands, while standing on a wet surface or while standing in water. Do not use outdoors or in wet conditions.
• When positioning or moving the appliance ensure that it is not turned up side down or greater than 45° or more off level.
• Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.
• Never lift or carry the wine cooler by the power cord.
• This wine cooler is designed for household, non-commercial use only. Any other use will void the warranty.
• Do not plug into the power outlet before set up is completed.
• An empty cooler can be a hazardous for children or small pets. If disposing of the cooler remove gasket seals, latches, lids or the entire door from your unused appliance, or take other action to ensure the cooler is harmless.
• Do not cut or remove the ground prong from the power cord.
• Do not move this appliance without emptying it and securing the door in a closed position.

Technical Data
