  • Page 1 INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    Cleaning and maintenance _______________________________ 29 Troubleshooting ________________________________________ 33 Thank you for choosing one of our products. You are advised to read this manual carefully; it contains all the information you need about the right conditions for the proper, safe use of your dishwasher.

  • Page 3: Safety And Operating Instructions

    THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER AND MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE DOOR. THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST NEVER BE REMOVED. DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED WITHIN THE HOME.
  • Page 4 DETERGENT RESIDUES CAPABLE OF CAUSING PERMANENT DAMAGE TO THE EYES, MOUTH AND THROAT, AND EVEN LEADING TO SUFFOCATION. DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE WHICH MAY CAUSE AN EXPLOSION. DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.
  • Page 5 WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER. The manufacturer declines all responsibility for damage to persons or property resulting from failure to observe the above precautions, from tampering with even a single component of the appliance, or from the use of non original spare parts.

  • Page 6: Installation And Hook-Up

    Make sure to tighten the locking ring-nut once the pipes have been placed in the direction required. A hole at least 8 cm in diameter is required to allow the power supply cable and pipes to pass.

  • Page 7: Drain Connection

    The free end should be positioned at a height of between 30 and 100 cm, and should never be submerged in water. If a horizontal drain extension hose is used (for a maximum of 3 m) the drain hose can be placed at a maximum height of 85 cm from the ground.
  • Page 8 BELOW AND THE REGULATIONS IN FORCE. L = brown N = blue = yellow-green In the event of damage to the supply cord, have it replaced by the manufacturer or an Authorized Technical Service Centre in order to avoid any risk.
  • Page 9 Fit replacement 13A fuse into fuse cover. Refit both into plug. The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted.

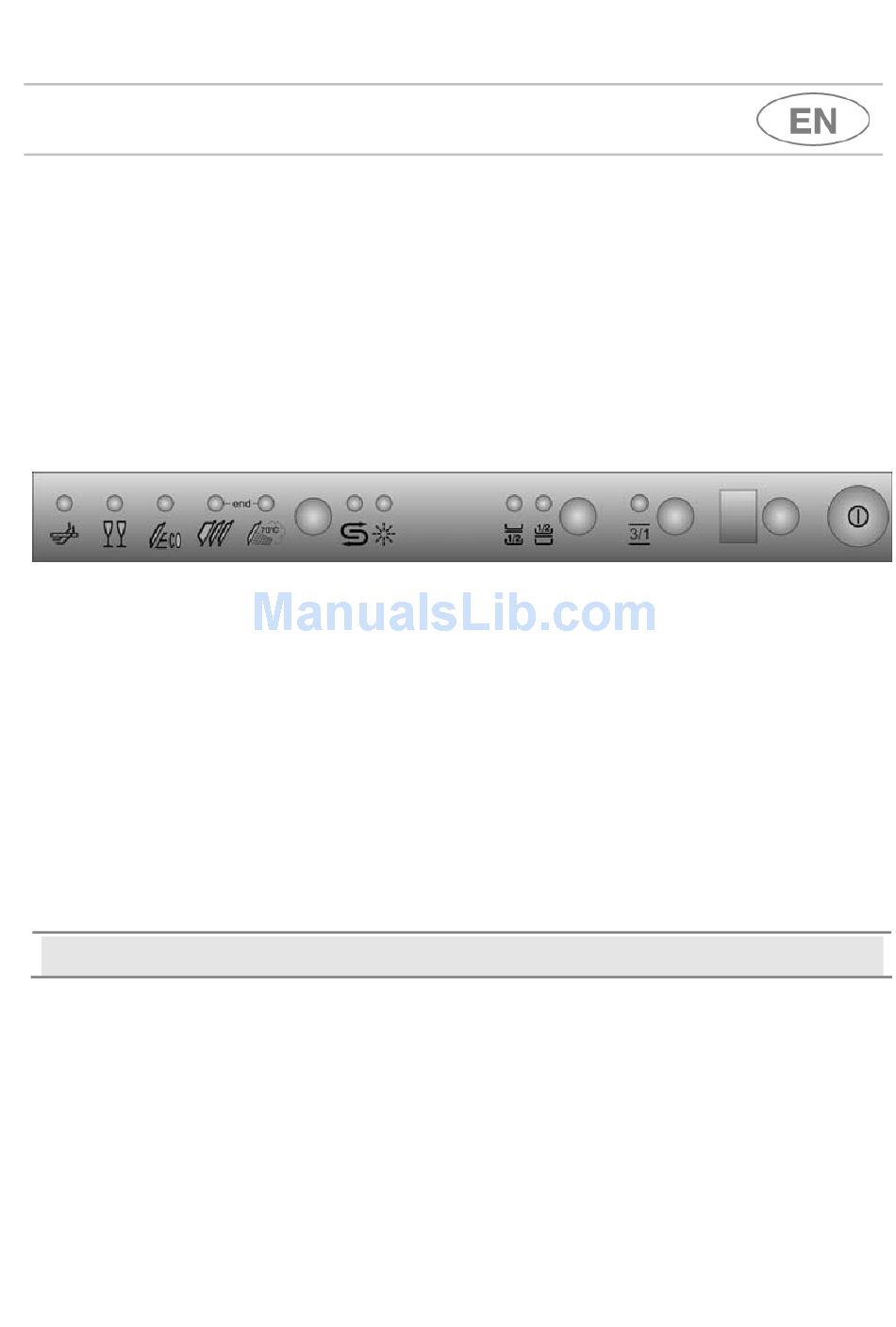

  • Page 10: Description Of The Controls

    Illumination of this light denotes the program selected and the occurrence of a fault (troubleshooting). PROGRAM SELECTION BUTTON By pressing this button in sequence it is possible to select the desired program. SALT WARNING LIGHT Illumination of this light signals that salt container is empty.
  • Page 11 One of the two light illuminates to indicate that the half load wash option in the top or bottom basket has been selected. PROGRAM DELAY BUTTON Press this button to delay the start of the program by up to 9 hours. 11 INFORMATION DISPLAY SETTING THE WASHING PROGRAM AND SWITCHING ON...
  • Page 12 If the temperature falls during this stage of the program (e.g. because the door is opened or due to a power blackout), the program lights (2) flash to warn that the anti-bacteria effect is not guaranteed.
  • Page 13 (available in all programs except the soak program) By pressing the button (6) you activate the "3/1" option, confirmed when the relative light comes on. This option has been studied for the use of dishwashing powder or tablets with integrated substances in place of regenerating salt or rinse-aid known on the market as “3 in 1”...
  • Page 14 2) Press the button a second time to select washing in the bottom basket (the relative light comes on); 3) Press the button a third time to return to the normal full load washing mode (washing in both baskets, both lights off).
  • Page 15 After approximately 1 minute the dishwasher will advance to the end of cycle. CHANGING THE PROGRAM To change the program in progress, simply open the door and select a new program. When the door is closed the dishwasher will automatically select the new program.
  • Page 16 User instructions If the door has to be opened while washing is in progress, the program will be interrupted. The relative light will keep flashing and a beeper will signal that the cycle has not been completed. You must wait about 1 minute before closing the door to restart the program.

  • Page 17: Operating Instructions

    Before replacing the cap, remove any salt residues from around the opening. • When using the dishwasher for the first time, in addition to the salt it is also necessary to add one litre of water to the container. •...
  • Page 18 N.B.: the display shows the water hardness setting and the program delay. The dot (.) after the number indicates that the water hardness setting is being displayed. If the dot (.) does not appear, the program delay is being displayed.
  • Page 19 With the exception of the SOAK program, before every washing cycle it is necessary to add the required amount of detergent to the detergent dispenser. The rinse aid, on the other hand, should only be added as required.
  • Page 20 • Replace the cover and turn it in a clockwise direction. • Use a cloth to remove any spillage of rinse aid which might lead to the formation of excess foam. ADJUSTING THE RINSE AID DISPENSER SETTING The dishwasher is factory set for medium water hardness. However it possible to change the setting by turning the dispenser’s selector to the...
  • Page 21 • The detergent packs must be sealed and stored in a dry place to prevent the formation of lumps which may negatively affect washing results. Once opened the detergent packs should not be kept for too long, otherwise the detergent loses its effectiveness.
  • Page 22 The introduction of detergent into the rinse aid dispenser, even in liquid form, will damage the dishwasher. 4.3 General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading.
  • Page 23 If in doubt as to the fastness of the colours, it is advisable to wash just a few items at a time for approximately one month.
  • Page 24 The dishwasher has a capacity of 12 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling.
  • Page 25 The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing downwards. Take care during loading to avoid injury from the knife blades. The basket is suitable for all types of cutlery, except those long enough to interfere with the upper spray arm. Ladles, wooden spoons and cooking knives can be placed in the upper basket, making sure that the knife blades do not protrude from the basket.
  • Page 26 It is recommended to load the upper basket with small- or medium-sized items such as glasses, small plates, tea or coffee cups, shallow bowls and light objects made from heat resistant plastic. If the upper basket is used in the lowermost position, it can also be loaded with serving dishes, provided they are only slightly soiled.
  • Page 27 User instructions Depending on the models, the basket may be equipped with some or all of the following accessories: Supports for cups or long objects (ladles, spoons…), on the left; can be tipped to the vertical position when not in use.
  • Page 28 User instructions ADJUSTING THE UPPER BASKET The height of the top basket can be adjusted to allow large dishes or pans to be placed in the bottom basket. The adjustment procedure may be type A, B or C, depending on the dishwasher model purchased.
  • Page 29 User instructions Version C: with adjustment in three positions on both sides. The sides of the basket must always be set at the same height. This adjustment is only available on some “maxi” model dishwashers (at least 860 mm tall).

  • Page 30: Cleaning And Maintenance

    CLEANING THE WATER INTAKE FILTER The water intake filter A located at the outlet of the water supply tap needs to be cleaned periodically. After having closed the water supply tap, unscrew the end of the water intake hose, remove the filter A and clean it delicately under running water.

  • Page 31: Cleaning The Filter Unit

    CLEANING THE FILTER UNIT • It is advisable to periodically inspect the centre filter C and, if necessary, to clean it. To remove the filter, grip the tabs, turn them anticlockwise and lift upwards; • push the centre filter D from the underside to remove it from the micro-filter: •...

  • Page 32: Before Starting

    DISUSE: • Check that there are no deposits of sludge or rust inside the water pipe: if there are, allow the water to run from the water supply tap for a few minutes. • Plug the power cord back into the socket.
  • Page 33 If there are visible traces of rust inside the tank: • the tank is made of steel, and therefore any rust marks are due to external elements (fragments of rust from the water pipes, pots, cutlery, etc.). Special products are commercially available to remove such marks;...

  • Page 34: Troubleshooting

    User instructions 6. Troubleshooting The dishwasher is capable of signalling a number of faults through the simultaneous illumination of several indicator lights, with the following meanings: FAULT DESCRIPTION Acquastop failure The anti-flooding system has been activated (for the relevant models only). The system is tripped in case of water leaks.
  • Page 35 To “reset” an alarm is necessary: • Open and close the door, or turn off and on the machine. At this point is possible to program the dishwasher again. If the malfunction persists, contact your authorised Service Centre.
  • Page 36 820 mm to 870 mm Height (depending on models) from 860 mm to 910 mm Capacity 12 Standard place settings Water supply pressure min. 0,05 - max. 0,9 MPa (min. 0.5 – max. 9 bar) Electrical characteristics See rating plate...
  • Page 37 NOTA: uitsluitend bepaalde modellen zijn uitgerust met één van de twee onderstaand afgebeelde inrichtingen Sólo algunos modelos están equipados con uno de los dos dispositivos que se ilustran a continuación. NOTA: Só alguns modelos estão equipados com ou dos dois dispositivos ilustrados abaixo 1/2”...
