CAMDEN CX-DESPK15SM Installation Instructions

Electrified Locks, Relays and Timers

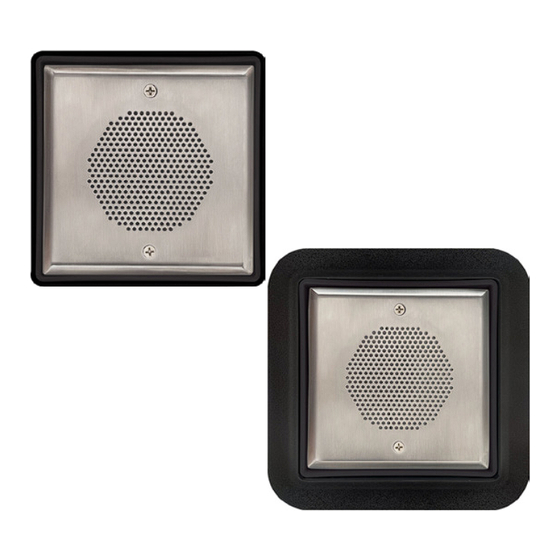

CX-DESPK15SM and CX-DESPK15FM External 15
Watt Speaker Station
INSTALLATION INSTRUCTIONS
THIS PACKAGE INCLUDES:
1 - Speaker Assembly
1 - Black Trim
1. GENERAL DESCRIPTION
Camden Door Controls CX-DESPK15 15-watt speaker station is designed
for industrial and commercial applications, where both audio and visual
indication is required. The 15-watt speaker can provide amplified audio
messages where ambient noise may be present.
Note: only 12 VDC is provided for the amplified 15-watt speaker station.
2. APPLICATION
Camden remote speaker station is ideal for applications that require a
visual and audio capabilities such as a remote speaker station for delayed
egress locks, door chimes or paging systems. It can be surface (CX-
DESPK15SM) or flush mounted(CX-DESPK15FM). Camden remote speaker
station is designed to be wired to delayed egress maglocks, door chimes
and other low voltage systems.
3. SPECIFICATIONS
Voltage
Maximum Audio
Output Impedance
6. WIRING
Wire Color
Grey + Ex. SPK of delayed egress lock
White - Ex. SPK of delayed egress lock
Black 0 VDC of power supply
Red +12-24 VDC of power supply
7. INSTALLATION
CX-DESPK15 uses a stainless-steel faceplate that easily mounts onto Camden's Aura surface or flush enclosures. Only 2" depth is required for flush mounting.
1. Determine the wire access location and drill hole of sufficient size, or use center knock-out plug.
2. Drill the four required mounting holes. (11/64" min.) There are four indents provided on 3" centers for your convenience.
3. Pull wiring through access hole, and mount the box on the wall using 4 screws.
4. Wire as per figure 6.1 and finally, Connect power and test for proper operation.
1 - Mounting Box Assembly
1 - Parts Kit
8-24V DC, 5mA
15 Watt (82dB at 3 feet (0.9 m))
8Ω
Connection
4. FRONT AND SIDE (CX-DESPK15SM)
5 1 4 ''
[134mm]
5 1 4 ''
[134mm]
5. FRONT AND SIDE (CX-DESPK15FM)
5
6
''
PROPRIETARY AND CONFIDENTIAL
8
[168mm] THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
CAMDEN DOOR CONTROLS. ANY
REPRODUCTION IN PART OR AS A
WHOLE WITHOUT THE WRITTEN
PERMISSION OF CAMDEN DOOR
CONTROLS IS PROHIBITED.
PWR
Ex. Spkr PWR
+ -
+
+ - -
Figure 6.1 - Wiring Diagram
2 1 4 ''
[58mm]
7
''
1 13
16
16
[11mm]
[46mm]
5 1 8 ''
[130mm]
Fire P Lock
C NC
+ -
CX-TRP-612DC
+
Plug in Power Supply,
-
12 VDC
Black
CX-DESPK15/SM
Red
CX-DESPK15/FM
15 Watt Amplified
White
Speaker
Grey
5502 Timberlea Blvd.
Mississauga, ON Canada L4W 2T7
Tel: (905) 366-3377
www.camdencontrols.com
CX-DESPK15
''
2D Assembled
CX-DESPK15-54i
Page 1 of 3
