Domintell max STRIPBOOST Manual

STRIPBOOST – Manual

Since LED strips have a limited maximum length, the
STRIPBOOST module is designed to facilitate RGBW LED
strips extension by allowing additional segments to be
added with a new power supply. It enables continuity of all
four channels (Red, Green, Blue and White). It can also be
used to extend the length of monochrome or tunable white
LED strips.

For optimum performance, connect only one type of LED
strip to the original controller.

The STRIPBOOST is powered by the 12 to 24 V supply of
the original LED strip.

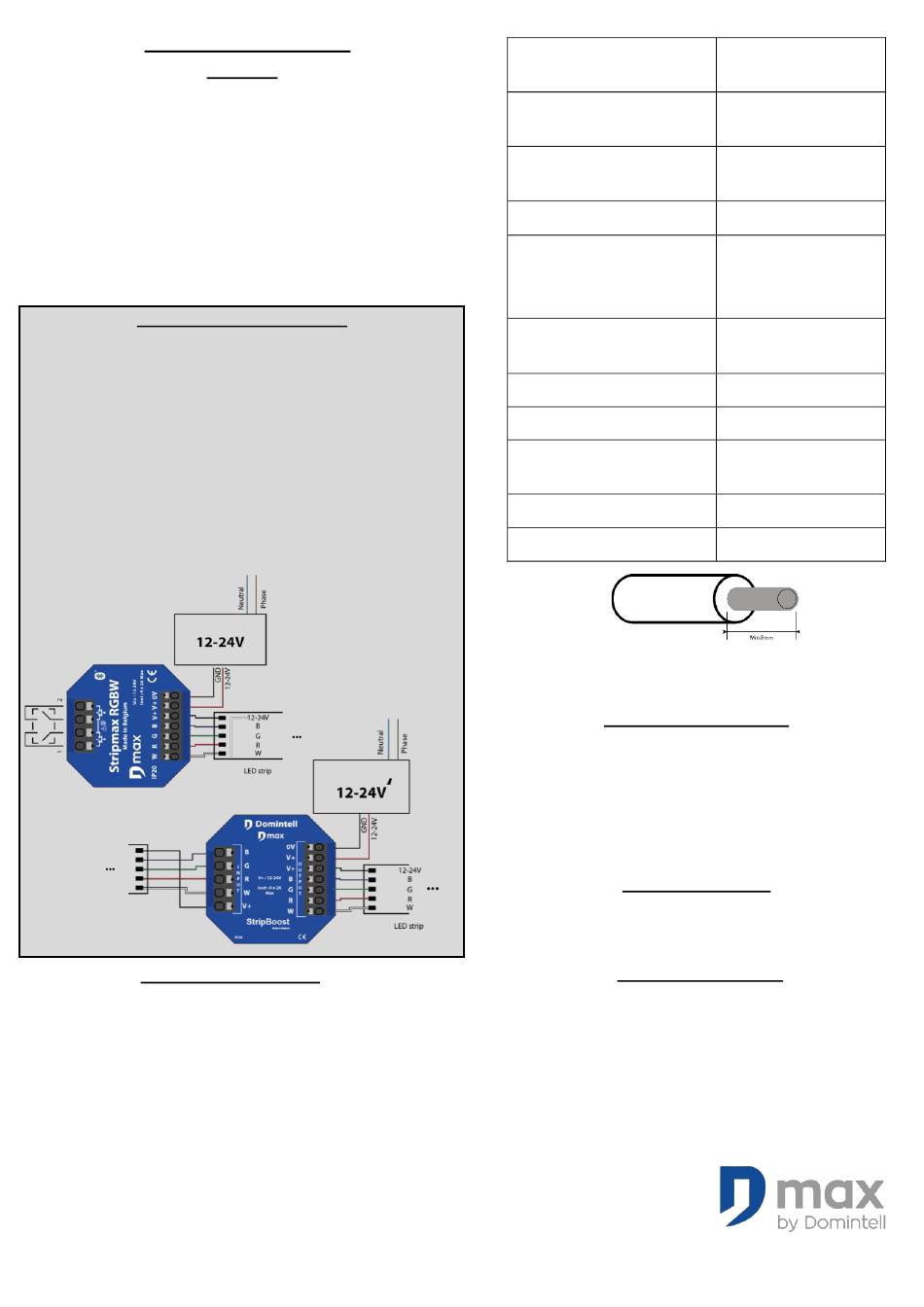

Wiring of the STRIPBOOST
Inputs
•
Connect the end of the initial LED strip to the
STRIPBOOST inputs. The V+ terminal (input side) may
come from the LED strip or its dedicated power supply.
Outputs
•
Connect a new section of LED strip to the STRIPBOOST
outputs, including the V+ terminal (output side). Connect a
power supply capable of delivering sufficient power to
supply the new STRIPBOOST section to the V+ and 0V
terminals on the output side.
•
The new section will then follow the state of the first. It is
possible to repeat the operation on several segments.
1
Technical specifications
Inputs

RGBW channels: 4 inputs corresponding to the four colors
of the initial LED strip

V+ (positive voltage): from the power supply for the initial
section of the LED strip.
Outputs

RGBW channels: 4 outputs providing signals for the four
colors on the new LED strip section.

V+ (Positive voltage): output to supply the new length of
LED strip.

External power supply: input for the new power supply for
the new length of the LED strip. The power supply must
be different from the basic power supply.
EN_20240403
Foreword
1
Power supply
Maximum current per
channel
Power per channel
Max. peak current
Maximum cable cross-
section
Minimum stripping
Certification
Protection class
Dimensions
Storage temperature
Operating temperature

Stripping:

Protection and limits: see manual for original LED strip
controller (Stripmax or other)
Safety and environment

For risk-free installation, the device may only be installed
by a qualified electrician.

The unit must not be opened under any circumstances
(otherwise the warranty will be void).

Under no circumstances may the device be connected
directly to 230V. Use a 12 to 24 Vdc transformer.

Switch off the power supply during assembly/disassembly.
2
STRIPBOOST integrates seamlessly and unobtrusively into
the operation of the LED strip, requiring no additional direct
control.
Directives and norms
The STRIPBOOST complies with the following:
Directives
RED-directive : 2014/53/UE
EMC-directive : 2014/30/UE
Norms
CE 2014/30/UE
STRIPBOOST
Is manufactured in Beligum by:
Domintell S.A.
Original LED strip's
power suply
2A
24W for 12V, 48W for
24V
80 Amp / 5ms
1.5mm
8mm minimum
CE 2014/30/UE
IP20
45mm x 45mm x
18mm
-25°C to 70°C
-10 to 45 °C
Push-button control
