BioZone Scientific International ICEZONE Manual

Hide thumbs Also See for ICEZONE:
Table of Contents

Advertisement

Quick Links

Download this manual
ICEZONE®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICEZONE and is the answer not in the manual?

Questions and answers

Related Manuals for BioZone Scientific International ICEZONE

Summary of Contents for BioZone Scientific International ICEZONE

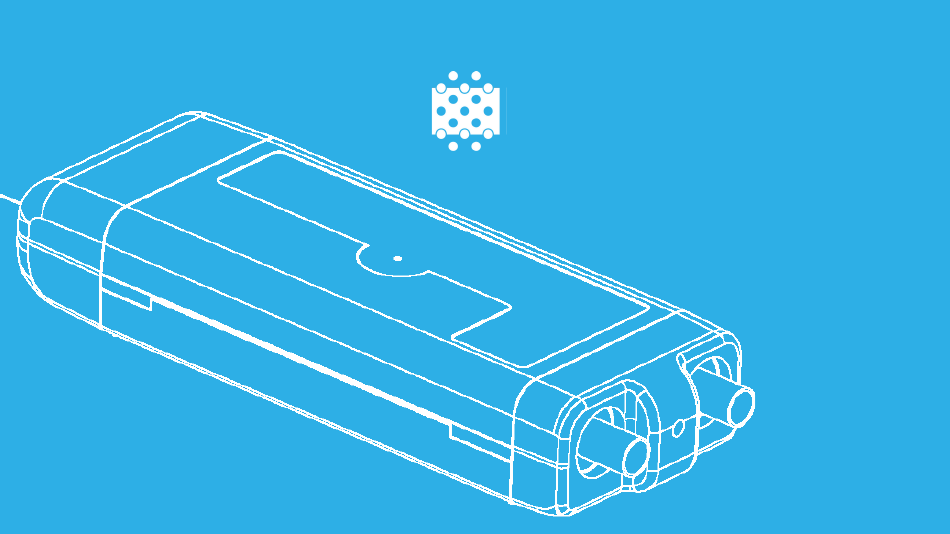

  • Page 1 ICEZONE®...
  • Page 2 The Photoplasma™ Company Harnessing Nature’s Cleaner Power for Healthier Indoor Environments...
  • Page 3 USER MANUAL ICEZONE® ENGLISH | ESPAÑOL | DEUTSCH | FRANÇAISE...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 01. INTRODUCTION 07. LAMP CLEANING AND REPLACEMENT 02. INCLUDED PARTS LIST 08. TROUBLESHOOTING 03. DEVICE DESCRIPTION 09. WARRANTY AND CERTIFICATIONS 04. BIOZONE SCIENTIFIC TECHNOLOGY 10. FAQs 11. SAFETY GUIDELINES What is Biozone Scientific Photoplasma™ 05. INSTALLATION Usage Safety Recommended Tools Electrical Safety Installation Location...

  • Page 6: Introduction

    This user manual is produced to facilitate the safe and trouble-free To enhance the product's lifespan and ensure a safe and effective operation of the Biozone Scientific Icezone®. The product is operation, you must follow the instructions outlined in this user designed and manufactured in strict adherence to technical manual and perform regular maintenance tasks.
  • Page 7 INSTALLATION MANUAL ICEZONE® ENGLISH | ESPAÑOL | DEUTSCH | FRANÇAISE...

  • Page 8: Included Parts List

    02. INCLUDED PARTS LIST SERVICE COVER MAIN BODY AND SCREW STATUS INDICATOR LAMP LIFE RESET PORT PLASMA PORTS UV- LAMP POWER ADAPTER PLASMAPROTECT TUBING PLASMAPROTECT MOUNTING FITTINGS SCREWS/ RIVETS LAMP RESET TOOL...

  • Page 9: Device Description

    Biozone Scientific solutions other Icezone® is highly effective and safe to use and fully complies with the applications such as garbage rooms, HVAC etc. criteria of the world’s most respected certification bodies. Certificates issued Contact information importers to this effect are listed in section 09, Warranty and Certifications section of distributors.

  • Page 10: Biozone Scientific Technology

    Icezone® also reduces machine cleaning time, and prevents the excessive wastage water associated with manual cleaning. When you purchase Icezone®, you can be sure that you’ll receive a return for the environment, as well as a return on investment.
  • Page 11 All surfaces should be free of slime and scale before starting the installation. RECOMMENDED TOOLS The followIng tools and equipment should be used in order to efficiently and safely install the Icezone®. Hand Drill Hose Cutter or Utility Knife...

  • Page 12: Installation

    05. INSTALLATION STEP 1: IDENTIFY INSTALLATION LOCATION To determine the best location for your machine, start by looking for areas of mold growth and choose a position for Icezone® that will provide maximum treatment to that area. It is recommended that the Icezone® be mounted on top of the machine. To avoid condensation, do not mount Icezone® with the supply and return ports pointing up.
  • Page 13 05. INSTALLATION STEP 2: DRILL SUPPLY & RETURN PORTS Mark the location for the supply and return ports on the machine according to these steps: Supply and return fittings and tubing should be installed above the ice levels. Supply should be positioned to target areas that are vulnerable to slime buildup with Photoplasma™.
  • Page 14 STEP 4: CONNECT FITTINGS & TUBING Arrange the tubing and fittings on the machine to connect to the IceZone® output and return ports. Attach the internal return tube and ensure it does not come in contact with any ice curtains through it’s range of motion.
  • Page 15 Place the service cover over the end of the Icezone® and install the cover screw. Plug the Icezone® power adapter in to the wall and observe that status light on top of the Icezone®. The status light should show a blue circle indicating normal operation.
  • Page 16 FOR OWNER ICEZONE®...

  • Page 17: Bulb Indicators

    ▬Short term exposure limit: 0.30 ppm for 15 minutes Icezone® is designed to produce ozone below the above listed limits when installed, used and maintained as instructed. Ozone is approved by the US FDA for food service use and is categorized as "generally regarded as safe" (GRAS).

  • Page 18: Lamp Cleaning And Replacement

    07. LAMP CLEANING AND REPLACEMENT The Biozone Scientific Photoplasma™ lamp in Icezone® needs to be replaced every 9,000 hours, roughly once a year. Photoplasma™ lamps continue to emit visible light but lose effectiveness over time. ATTENTION: Avoid touching the glass portion of the lamps with bare fingers.
  • Page 19 UNIT REPLACEMENT LAMP PART NUMBER Reset the lamp life counter by holding down the reset tool in the reset Icezone Lite 10-08025 hole at the center of the LED Indicator Status ring. If the reset tool is not Icezone Standard 10-08050 available, a paperclip can be substituted.

  • Page 20: Troubleshooting

    ATTENTION: Servicing Icezone requires a qualified maintenance professional. Disconnect power before cleaning or servicing the Icezone. ISSUE CHECK Open the Icezone service cover and check that the lamp Flashing Red Light (Fan works) connectors are properly installed. Replace lamp. Lamp time expired. Replace lamp to maintain effective ice Steady Red Light machine cleaning.

  • Page 21: Warranty And Certifications

    09. WARRANTY AND CERTIFICATIONS WARRANTY Any unsanctioned repairs of the interior or exterior finish Biozone Scientific provides a standard 1-year warranty on its of the casing, control plate, knobs, accessories, or products. Warranty coverage starts from the date of purchase. consumable parts will void warranty.
  • Page 22 09. WARRANTY AND CERTIFICATIONS WARRANTY 3. Return the product with proof of purchase. Any return not Please note that this warranty supersedes any other written including a proof a purchase will be systematically refused. warranty, whether expressed or implied, written or oral, 4.

  • Page 23: Faqs

    Additionally, it mitigates downtime expenses and decreases maintenance and repair costs caused by the accumulation of biofilm on working parts. By doing so, Icezone helps lower labor costs. To estimate your potential savings, make use of our Return on Investment (ROI) calculator, accessible at: https://bsg-uv.com/new-calculator/...
  • Page 24 FOR USERS ICEZONE...

  • Page 25: Safety Guidelines

    "device" or "product" refer to the Ensure that your workspace is clean and well-lit. A cluttered or poorly lit Icezone. workspace can increase the risk of accidents. Exercise foresight, pay attention to ongoing activities, and apply common sense when operating the ELECTRICAL SAFETY device.

  • Page 26: Personal Safety

    Always unplug the Icezone device before beginning an ice machine guards and refrain from loosening any screws. cleaning, sanitizing, or descaling cycle. Plug in the Icezone device when the When transporting and handling the device from the warehouse or storage cycle is complete.
  • Page 27 11. SAFETY GUIDELINES SAFE DEVICE USE If any room within which the product is installed has a suspected residual Do not use the device if it malfunctions. Photoplasma™ level higher than normal level, leave the room and wait 20 Ensure the plug is disconnected from the socket before making any minutes.
