QUICK START GUIDE
RADIUS CLIENT INTERFACE MODULE
For OmniOn Power NE843E Pulsar Plus Controller

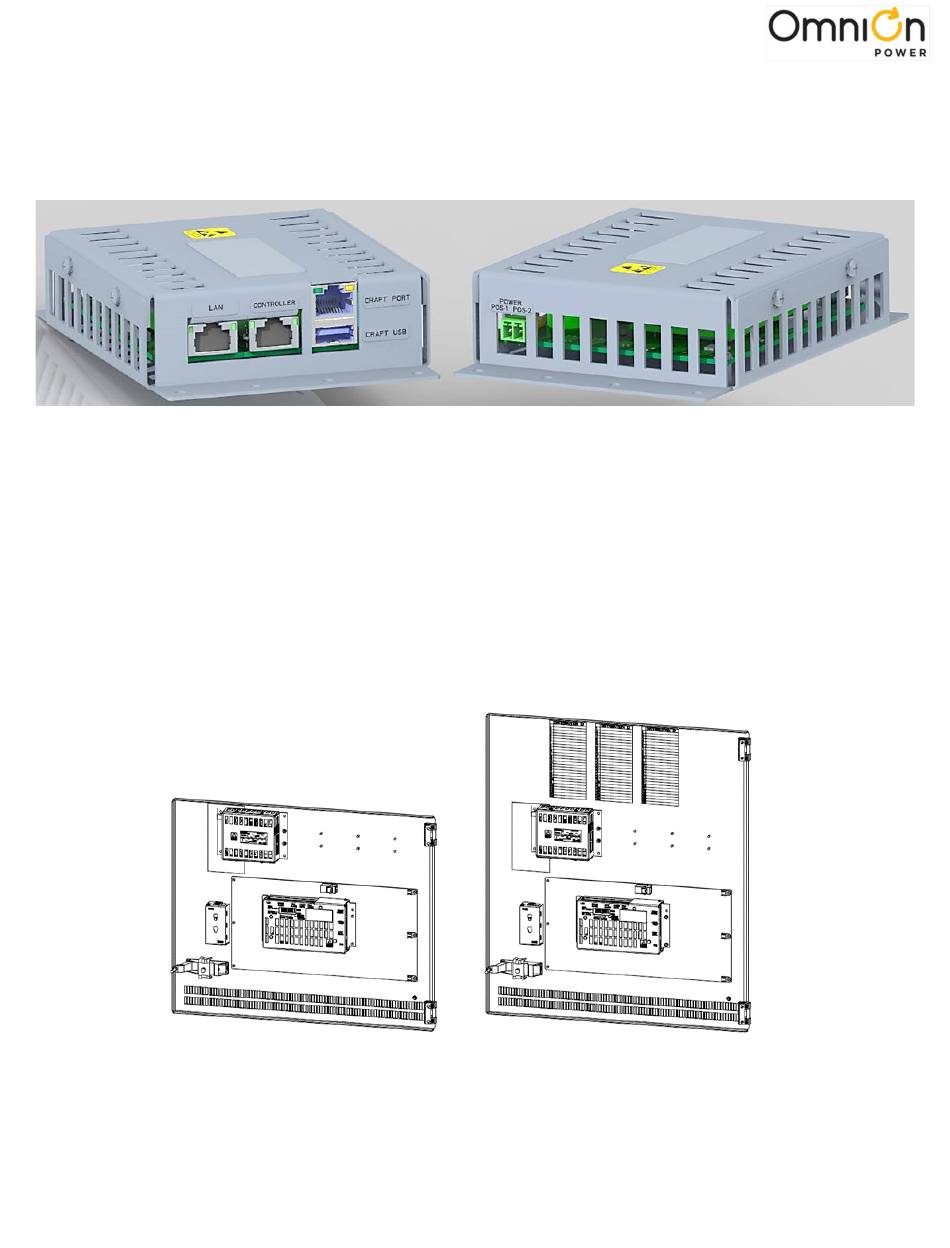

Figure 1: 1600482623A RADIUS Client Module
This Quick Start Guide provides installation information for the RADIUS Client (RC) product option that can be added
to an existing Infinity NES-M Systems to allow it to participate in a company's RADIUS Authentication process. The new
device is a RADIUS Client module which will be used by the OmniOn Power NE843E Pulsar Plus controller to obtain
defined system user credentials to allow access to the power system controller over the network. This new RADIUS
Client will connect to the RADIUS Server over the network and authenticate whether a specific user can access the
OmniOn Power controller. The permission results will be shared with the OmniOn Power controller so that the user
desiring connection will be managed appropriately.
The RADIUS Client module mounts onto the door when operating with a Pulsar Plus in an Infinity M system. There are
two basic configurations for the Infinity M system. The H5692448G222, G212 and H5692448G223, G213. Both groups will
utilize the same RADIUS Client module and basic connections and configuration to mount the module onto its
respective distribution door.
Figure 2: H5692448G222, 212 and H5692448G223, 213
