I N S T R U C T I O N M A N U A L
KEPCO
POWER SUPPLY PROTECTION DIODE KIT
1. DESCRIPTION
Protection diode KIT 219-0669 can be used for protection of power supplies with rated voltage up to 400V, rated
current up to 10A. The diodes included protect the power supply from damage due to a) back EMF voltage gener-
ated by inductive loads or b) reversed polarity connections in case of battery charging.
2. MATERIAL SUPPLIED
Material supplied is listed in Table 1 and shown in Figure 1,.
Heatsink P/N 136-0451
Diode P/N 124-0693
Thermal Shim P/N 189-0577
Diode Mounting Screws P/N 101-0520
Diode Terminal Screws P/N 1010463
Jumper Link P/N 107-0020
Jumper Link P/N 107-0413
Ring Lug P/N 107-0225
Instruction Sheet P/N 228-2007
KEPCO, INC. 131-38 SANFORD AVENUE FLUSHING, NY. 11355 U.S.A. TEL (718) 461-7000 FAX (718) 767-1102
©2024, KEPCO, INC
Data subject to change without notice
An ISO 9001 Company.
400V, 10A MAXIMUM:
TABLE 1. MATERIAL SUPPLIED
MATERIAL

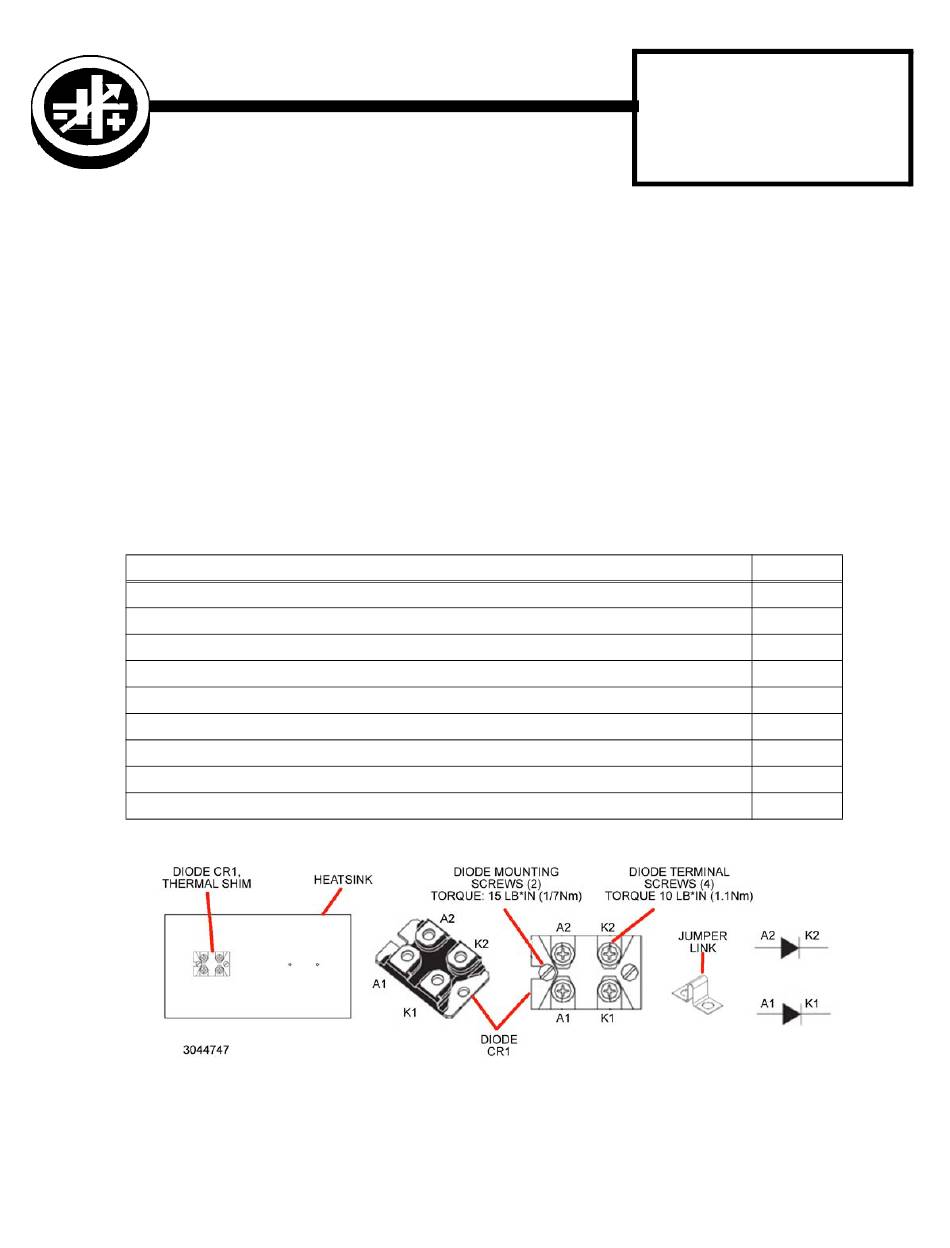

FIGURE 1.
KIT 219-0669 COMPONENTS
www.kepcopower.com email: hq@kepcopower.com
228-2007
KIT
219-0669
QUANTITY
1
1
1
2
4
1
1
4
1
1
