Summary of Contents for NSR Marine NGC-3000
- Page 1 USER MANUAL Transmitting Heading Device THD (GNSS method) GNSS COMPASS NGC-3000 NGC-3000 UM.E 20220720-03...
- Page 2 NOTICE TO USERS Thanks for your purchasing this product NGC-3000 THD (GNSS Compass). The copyright of this manual is owned by the manufacturer, NEW SUNRISE CO., LTD (NSR). Prior written permission is required for copying or reproducing the manual or part of the manual.
- Page 3 MODIFY RECORD Modify by Date Paragraph Version Reason 2020/04/02 First edition 2021/09/30 Generally modification 2022/07/20 Generally modification NGC-3000 UM.E 20220720-03...
- Page 4 Don’t open the equipment unless you have fully understood the structure and circuits of the equipment. Only qualified personnel should work inside the equipment. Don’t disassemble or try to modify the equipment. Dangerous Turn off the power at power distribution board before installation. NGC-3000 UM.E 20220720-03...
-
Page 5: Table Of Contents
3.3.3 Arrival Alarm and Anchor Watch Alarm ............19 3.3.4 Track Record ....................21 4. MENU SETTING ....................22 4.1 GNSS S ....................22 ETTING 4.1.1 RAIM ......................22 4.1.2 Smoothing ....................23 4.1.3 Offset ......................24 4.1.4 Beacon......................24 NGC-3000 UM.E 20220720-03... - Page 6 6.5.2 Language Setting ..................43 APPENDIX I MENU TREE ..................44 APPENDIX II TECHNICAL SPECIFICATIONS ............45 APPENDIX III SENTENCE DISCRIPTION ............... 47 APPENDIX IV NGC-3000 INS SET GUIDANCE ............55 APPENDIX V INSTALLATION DRAWINGS ............56 NGC-3000 UM.E 20220720-03...
-
Page 7: Product Features
- Up to five display modes available. - Maintenance-free design. The product is compliant with IMO MSC.116 (73) for THD (transmitting head device). NGC-3000 consists of a processor unit, a display unit and an antenna unit. The system diagram is as follows: NGC-3000 UM.E 20220720-03... - Page 8 NGC-3000 USER MANUAL EQUIPMENT LIST: Q’ty Name Part No. Description NGC-3000P / Processor Unit N502710 NGC-3000D / Display Unit N502711 NSR special bolt for installation NGA300 / GNSS Antenna N581130 Installation Materials Insulation tape & Waterproof tape Mounting bracket 1 for...
-
Page 9: Basic Operation
NGC-3000 USER MANUAL 2. BASIC OPERATION 2.1 Power on the Equipment Both processor unit and display unit can be powered on or off with the power switch on the rear panel of the processor unit. When an internal fault appears, turn off the processor unit immediately. -
Page 10: Basic Menu Operation
Acknowledge an alarm. ACK ALL Change day/night mode. Cold start of the NGC-3000 takes about 30 seconds to fix the heading. After fixed, the accurate heading, position, COG, SOG will appear on the display. 2.4 Basic Menu Operation Most operations of the unit are carried out through the menu. If you get lost in operation, press DISP button to return to the MAIN menu. -
Page 11: Display Modes
NGC-3000 USER MANUAL Click MENU to display the modes and settings. Turn PUSH TO ENTER knob and press the knob to confirm the selection or click directly to select an item on screen. 2.5 Display Modes There are five display modes: Data, Plotter, Turn, Compass, and Satellite. -
Page 12: Plotter Display
Basic data will be displayed in this mode, including HDT, position in latitude and longitude, COG, SOG, date and time. NGC-3000 takes about 30 seconds to fix heading at cold start. After fixed, the accurate heading appears on the display. If heading could not be found, “loss of heading” will appear at alarm column. -
Page 13: Turn Display
NGC-3000 USER MANUAL You may increase or decrease the display range on the Plotter display. The range in the Plotter display is available among 0.02, 0.05, 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 40, 80, 160 and 320 nautical miles. -
Page 14: Compass Display
NGC-3000 USER MANUAL 2.5.4 Compass Display The compass display mainly shows the navigation direction of the ship, and you can see the heading (triangle) and course (gray line) of the ship. Choose heading up, COG up, North up by clicking the box in the upper left corner. - Page 15 NGC-3000 USER MANUAL Note: When the power is turned off, the last status of brightness is stored. Therefore, when the power is turned on next time, the screen will display with the last brightness before powered off. NGC-3000 UM.E 20220720-03...
-
Page 16: Navigation Planning
NGC-3000 can store 30 routes and each route may include up to 100 waypoints. There are two ways to enter Waypoint and Route. -
Page 17: Register Waypoints
NGC-3000 USER MANUAL 3.1 Register Waypoints 1) Click [NAVIGATION] in [SETTINGS] to open [NAVIGATION] menu. 2) Click [WAYPOINT LIST] to open the list and select the waypoint desired. 3) Select [ADD], [DELETE] or [EDIT] desired. 3.1.1 Add a New Waypoint Click [ADD] to create a new waypoint with the position of the centre in plotter. -
Page 18: Edit A Waypoint
NGC-3000 USER MANUAL 3.1.2 Edit a Waypoint Edit the selected waypoint. 1) Click [EDIT] to edit the contents of the waypoint. 2) Click [LAT] or [LON] to locate the first character to edit and click the character desired. 3) Click [√] key. -
Page 19: Delete A Waypoint
NGC-3000 USER MANUAL 3.1.3 Delete a Waypoint Click [DELETE] to delete the selected waypoint. Click [YES] to confirm the deletion. 3.1.4 Goto Waypoint Click [GOTO] to navigate to the selected waypoint. 3.1.5 Send Waypoint Click [SEND] to output the selected waypoint. -
Page 20: Edit A Route
NGC-3000 USER MANUAL 3.2.1 Edit a Route 1) Click to select a route in [ROUTE LIST] desired. 2) Click [EDIT] to edit the route. 3) Select [ADD], [RENAME], [DELETE], [PAGE ↓] or [PAGE↑] to add, rename, or delete a waypoint in the route. - Page 21 NGC-3000 USER MANUAL RENAME the route 1) Choose the route desired to rename and click [RENAME], then the pop-up menu appears. 2） Click the character among A-Z , 0-9 desired. The route name can be made of up to 17 characters.
-
Page 22: Forward Navigation
NGC-3000 USER MANUAL JUMP TO a waypoint Click [JUMP TO] to jump to the waypoint selected. 3.2.2 Forward Navigation Click [FORWARD] in [MENU] to start navigation forward. The screen will switch to plotter page. 3.2.3 Reverse Navigation Click [REVERSE] to start navigation reversely. The screen will switch to plotter page. -
Page 23: Create A New Route
NGC-3000 USER MANUAL 3.2.4 Create a New Route Click [ADD] to add a new route just after the current route. 3.2.5 Delete a Route Click [DELETE] to delete the selected route from route list. 3.2.6 Stop the Navigation by the Current Route Click [STOP] to stop the current navigation. -
Page 24: Notice In Navigation
NGC-3000 USER MANUAL 3.3 Notice in Navigation Select [NOTICE SETTING] in [NAVIGATION] to open the menu. 3.3.1 XTE (Cross Track Error) Alarm The XTE alarm warns you by an internal buzzer when own ship is off its intended route. NGC-3000 UM.E 20220720-03... -
Page 25: Speed Alarm
NGC-3000 USER MANUAL 1) Click the blue value field to edit. 2) Click the digits among 0-9 desired until the desired digit is got. 3) When the value is set to 0, XTE alarm will close. 3.3.2 Speed Alarm The speed alarm is activated when ship’s speed is higher (or lower) than the set value. - Page 26 NGC-3000 USER MANUAL Arrival Alarm The arrival alarm informs you that own ship is approaching a destination waypoint. The area that defines an arrival zone is that of a circle which you approach from the outside of the circle. The alarm will be activated if own ship enters the circle.
-
Page 27: Track Record
NGC-3000 USER MANUAL Before setting the anchor watch alarm, set current position as destination. 1) Select [ANC] (anchor) from ARV/ANC/OFF. 2) Click the ALARM value to edit. 3) Click the digits among 0-9 until the desired digit is got. 4) Turn the knob to move the cursor to the next digit to edit. -
Page 28: Menu Setting
NGC-3000 USER MANUAL 4. MENU SETTING 4.1 GNSS Setting Click MENU button on screen, and choose [GNSS SETTING] in [SETTINGS] to open the [GNSS SETTING] menu. It includes RAIM, SMOOTHING, OFFSET, BEACON and INS SET items. 4.1.1 RAIM Click [RAIM] to open [RAIM] menu. RAIM (Receiver Autonomous Integrity Monitoring) can be set ON or OFF. -
Page 29: Smoothing
NGC-3000 USER MANUAL When set ON, RAIM will display SAFE, UNSAFE or CAUTION in below conditions: Conditions for the "safe" state The result of integrity calculation by means of RAIM will be stated as "safe", if the integrity calculation can be performed with a confidence level above 95 % for the selected accuracy level and RAIM calculates the probable position error to be within the selected accuracy level. -
Page 30: Offset
NGC-3000 USER MANUAL 4.1.3 Offset Change the offsets of latitude (LAT), longitude (LON), HDT, PITCH and ROLL. 4.1.4 Beacon BEACON: The system may use differential signal of DGPS Beacon, which connect to BEACON IN port. The system will alarm if the condition of loss of differential signal occurs. -
Page 31: System Setting
NGC-3000 USER MANUAL 4.2 System Setting Click MENU button on screen, and choose [SYSTEM SETTING] in [SETTINGS] to open [SYSTEM SETTING] menu. It includes KEY BUZZER, LCD/KEY DIMMER, DAY/NIGHT, TIME MODE and TIME ZONE items. 4.2.1 Key Buzzer Buzzer can be muted so that operation is not heard. -
Page 32: Lcd/Key Dimmer
NGC-3000 USER MANUAL 4.2.2 LCD/KEY Dimmer Dimmer can be adjusted either by DIM button or set in menu. 4.2.3 Day/Night Click [DAY/NIGHT] or the icon at upper right corner to change the display between day mode and night mode. NGC-3000 UM.E 20220720-03... -
Page 33: Time Mode
NGC-3000 USER MANUAL 4.2.4 Time Mode Time can be set as UTC or LMT in TIME MODE. 4.2.5 Time Zone Time zone can be set by clicking from -13:00 to +13:00. Each clicking will increase it by 30min. 4.3 Alert Setting When an error occurs, an alert will display on the current screen. -
Page 34: Alert List
NGC-3000 USER MANUAL ALARM BUZZER items. 4.3.1 Alert List [ALERT LIST] displays the alerts for the current system. 4.3.2 Alarm Period Alarm period can be set between 1-5 minutes. When an alert occurs, a warning will be displayed at the bottom of screen and can be... -
Page 35: Alert History
NGC-3000 USER MANUAL heard as a warning tone. If an alert lasts for above set period, the warning will become an alarm and can be heard as an alarm tone. Either a warning tone or an alarm tone can be muted by clicking the alert on screen or being set in menu. - Page 36 NGC-3000 USER MANUAL NGC-3000 UM.E 20220720-03...
-
Page 37: Maintenance & Diagnostics
NGC-3000 USER MANUAL 5. MAINTENANCE & DIAGNOSTICS 5.1 Maintenance Check the following points regularly to maintain performance: Check that connectors on the rear panel are firmly tightened and free of rust. Check that the ground system is free of rust and the ground wire is tightly fastened. -
Page 38: Lcd Test
NGC-3000 USER MANUAL 5.2.2 LCD Test LCD Test is used for testing the screen. 5.2.3 Factory Test It is to test the buttons/keys on panel and Beacon in, INS in etc. NGC-3000 UM.E 20220720-03... -
Page 39: Factory Default
NGC-3000 USER MANUAL 5.2.4 Factory Default FACTORY DEFAULT is to return the system to factory default setting. Select [FACTORY DEFAULT] in [DIAGNOSTICS] menu, then click [YES] to confirm the operation. NOTE: The navigation settings and GNSS settings will restore to factory default while the waypoints and routes registered remain unchanged. -
Page 40: Beacon Monitor
NGC-3000 USER MANUAL 5.2.6 Beacon Monitor It’s to check the differential GNSS data from BEACON IN. Only RTCM23 type 16 (special message) will be displayed. NGC-3000 UM.E 20220720-03... -
Page 41: Installation
NGC-3000 USER MANUAL 6. INSTALLATION 6.1 Installation of Display Unit The display unit can be installed on a table-top, on the overhead, or in a panel (optional flush mounting brackets required). Refer to the outline drawings at the end of this manual for installation instructions. -
Page 42: Installation Of Processor Unit
NGC-3000 USER MANUAL 6.3 Installation of Processor Unit Four screws are supplied to mount the processor unit. It’s recommended the processor unit be installed horizontally on table. Note: Care must be taken when mounting the processor unit to ensure that there is sufficient space for cables and connectors. -
Page 43: Antenna Connection
NGC-3000 USER MANUAL 6.4.2 Antenna Connection There are two Antenna cables, both connected to the processing unit. Pay attention to the bow and stern. 6.4.3 Internal Connection Cable The internal connection cable is used to connect the processing unit and the display unit. -
Page 44: Initial Settings
NGC-3000 USER MANUAL 6.5 Initial Settings 6.5.1 Sentence Setting This equipment can output navigation data to external equipment, in NMEA 0183 format. For example, it can output HDT to other equipment. There are three normal data outputs, one IEC 61162-450, and INS/BAM (Bridge Alert Management) output/input. For each normal data output and IEC 61162-450 output, following items can be configured. - Page 45 NGC-3000 USER MANUAL Data sentences: Up to 18 kinds of sentences are available but not more than 100% load rate. Interval of HDT, THS, ROT, HDG, HDM can be set 20ms - 400ms. Interval of other sentences can be set 1s - 20s.
- Page 46 NGC-3000 USER MANUAL Click each sentence continuously to modify the sentence transmission frequency. “--” means no output. Data sentence description HDT: Heading true. THS: True heading and status. ROT: Rate of turn. HDG: Heading, deviation and variation. HDM: Heading, Magnetic.
- Page 47 NGC-3000 USER MANUAL identified route. WPL: Latitude and longitude of specified waypoint. HBT: The sentence is transmitted at regular intervals specified in the corresponding equipment standard. The repeat interval may be used by the receiving unit to set the time-out value for the connection supervision.
- Page 48 The talker ID can be set to AUTO, HE, HC, GN, GP, GB. 6.5.1.5 IEC 61162-450 NGC-3000 will output IEC 61162-450 sentence over the network. The transmission group is SATD, Multicast address is 239.192.0.3, destination port is 60003, and SFI is HE0001.
-
Page 49: Language Setting
NGC-3000 USER MANUAL 6.5.1.6 INS/BAM In & Out [INS/BAM IN & OUT] sentence setting screen is as follows: 6.5.2 Language Setting NGC-3000 supports two languages: English and Chinese. Click [LANGUAGE] to switch between CHINESE and ENGLISH. NGC-3000 UM.E 20220720-03... -
Page 50: Appendix I Menu Tree
NGC-3000 USER MANUAL APPENDIX I MENU TREE NGC-3000 UM.E 20220720-03... -
Page 51: Appendix Ii Technical Specifications
NGC-3000 USER MANUAL APPENDIX II TECHNICAL SPECIFICATIONS GENERAL Item Description GPS L1/L2, BDS B1/B2, GLONASS L1/L2, Receiving Frequency GALLIEO E1/E5b Heading Accuracy 0.4º Heading Resolution 0.1° Tracking Rate Of Turn 45º /sec Tracking Acceleration ±60° Pitch/Roll Angle Position Accuracy... - Page 52 NGC-3000 USER MANUAL INPUT/OUTPUT DATA Item Description NMEA0183, totally 3 ports, baud rate 4800 / 9600 / DATA Output 19200 / 38400 bps NMEA1.5, NMEA2.0, NMEA2.3, IEC61162 Ed4, Version IEC61162 Ed5 ALF, DTM, GBS, GNS, GGA, GSA, RMC, VTG, ZDA, Sentences etc.
-
Page 53: Appendix Iii Sentence Discription
NGC-3000 USER MANUAL APPENDIX III SENTENCE DISCRIPTION HDT – Heading true Actual vessel heading in degrees true is produced by any device or system producing true heading. $--HDT, x.x, T*hh<CR><LF> 1, 2: Heading, degrees true THS – True heading and status Actual vessel heading in degrees true is produced by any device or system producing true heading. - Page 54 NGC-3000 USER MANUAL Magnetic sensor heading, degrees 2, 3: Magnetic deviation, degrees E/W 4, 5: Magnetic variation, degrees E/W HDM - Heading, Magnetic Actual vessel heading in degrees Magnetic. $--HDM,x.x,M*hh<CR><LF> 1, 2: Heading, degrees Magnetic RMC- Recommended minimum specific GNSS data Time, date, position, course and speed data provided by a GNSS navigation receiver.
- Page 55 NGC-3000 USER MANUAL 3) : The positioning system mode indicator field supplements the positioning system status field. The status field should be set to V = Invalid for all values of the mode indicator except for A= Autonomous, D = Differential, F = Float RTK, P = Precise and R = Real time kinematic.
- Page 56 NGC-3000 USER MANUAL ZDA - Time and date UTC, day, month, year and local time zone. $--ZDA,hhmmss.ss,xx,xx,xxxx,xx,xx*hh<CR><LF> Day, 01 to 31 (UTC) Month, 01 to 12 (UTC) Year (UTC) Local zone hours, 00h to +-13h Local zone minutes, 00 to +59 as local hours GLL –...
- Page 57 NGC-3000 USER MANUAL Horizontal dilution of precision Antenna altitude above/below mean sea level, m Geoidal separation, m Age of differential GPS data Differential reference station ID, 0000-1023 DTM - Datum reference $--DTM,ccc,a,x.x,a,x.x,a,x.x,ccc*hh<CR><LF> 1 2 3 4 5 6 7 8...
- Page 58 NGC-3000 USER MANUAL Waypoint "n" identifier WPL – Waypoint location Latitude and longitude of specified waypoint. $--WPL,llll.ll,a,yyyyy.yy,a,c--c*hh<CR><LF> 1, 2: Waypoint latitude, N/S 3, 4: Waypoint longitude, E/W Waypoint identifier RMB – Recommended minimum navigation information $--RMB, A, x.x, a, c--c, c--c, llll.ll, a, yyyyy.yy,a,x.x, x.x, x.x, A, a *hh<CR><LF>...
- Page 59 NGC-3000 USER MANUAL Status: A = Data valid V = LORAN C blink or SNR warning V = general warning flag for other navigation systems when a reliable fix is not available Status: Status: A = OK or not used V = LORAN C cycle lock warning flag...
- Page 60 NGC-3000 USER MANUAL Total number of ALF sentences for this message, 1 to 2 Sentence number, 1 to 2 Sequential message identifier, 0 to 9 Time of last change Alert category, A, B or C Alert priority, E, A, W or C...
-
Page 61: Appendix Iv Ngc-3000 Ins Set Guidance
NGC-3000 USER MANUAL APPENDIX IV NGC-3000 INS SET GUIDANCE INS Set After enable INS, the initialization can be completed only when the speed of the ship reaches about 6kn. Roll can be calculated after initialization. The addition of INS in the... -
Page 62: Appendix V Installation Drawings
NGC-3000 USER MANUAL APPENDIX V INSTALLATION DRAWINGS NGC-3000 UM.E 20220720-03...
Need help?
Do you have a question about the NGC-3000 and is the answer not in the manual?
Questions and answers

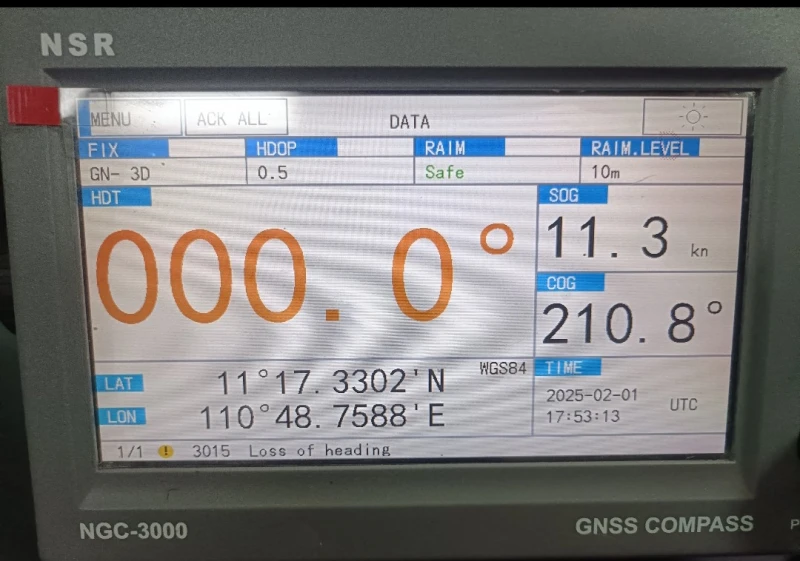

How to correct loss of heading
If the NSR Marine NGC-3000 displays "loss of heading," it indicates that the device has not fixed the heading. The system typically takes about 30 seconds to determine heading at cold start. To correct this issue, ensure the device has sufficient time to acquire heading data. If the problem persists, check the GNSS signal reception and ensure the device is properly installed and functioning.
