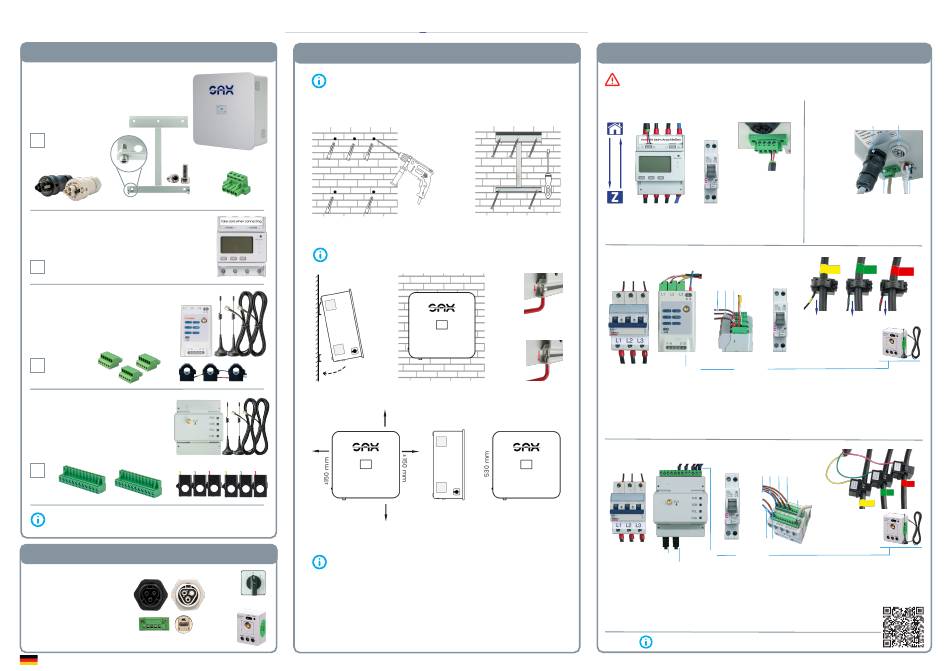

SAX PRIMO Quick Installation Manual

SAX Power quick installation guide for PRIMO 5,8 kWh battery storage system
Scope of delivery
Basic equipment
1
1. Batch storage
2. Wall bracket with 2 screws
for positioning the storage tank
3. 2 Wieland plugs
4. Terminal block
2
3
Standard installation
+
Basic equipment
5. Smartmeter ADL 400
Wireless Installation
Basic equipment +
6. Smartmeter AEW 100
6
7. 2 LORA antennas
8. 3 clamping blocks
9.
3 Folding current transformers
8
9
Wireless Plus installation
Basic equipment +
10
10. Smartmeter ADW 220
11. 2 LORA antennas
12.
2 clamping blocks
13. 2 x 3 Folding current transformers
12
13
If more than one storage unit is used in a network, the smartmeter
including accessories is in packaging box "A".
Connections of the memory
14 15
14. Power connection
15. Emergency power
connection
16. RS485 interface
17. LAN connection
18. Main switch
19. Optionally installed
LORA module
16
17
Made in Germany
Wall mounting
Total weight: 55 kg.
Please check the load-bearing capacity of the wall before mounting.
You will need 5 screws and wall plugs for wall mounting.
Select the screws and wall plugs according to the condition of the wall.
4
5
Attach the storage tank. Due to the high storage weight,
2 persons are required for transport and assembly!
7
≥150 mm
11
≥150 mm
• The storage tank must be registered with the responsible grid operator.
• Do not open the memory. Opening the device will invalidate the warranty.
18
• Do not operate the storage tank outside the temperature limits
of 5°C to 35°C.
• Wait 60 seconds after switching on and do not switch off the memory
during this time.
• Do not switch off the storage tank permanently after commissioning
or disconnect it from the mains to prevent deep discharge of the
battery cells.
19
SAX Power GmbH • Oberer Luß 12 • 89155 Erbach • Telefon Zentrale: + 49 7305 95891-1 • E-Mail: info@sax-power.net • www.sax-power.net
Electrical installation
Smartmeter ADL 400
Mounting the bracket
• ADL 400 connection between meter and consumer.
• Establish communication between smart meter and
memory via RS485 interface at contacts 21 / 22.
Smartmeter AEW 100
On-site
Unscrew the
screw as far
as it will go
• Connection AEW 100 via LS 10A fuse protection to supply voltage corresponding to terminals
UA, UB, UC / N.
• Attach hinged current transformers orientated in the same direction between the meter and
the load: L1 yellow / L2 green / L3 red and connect to smartmeter.
• Establish communication between smartmeter and storage unit via RS485 interface on
contacts 21 / 22. Alternatively via a LORA radio connection. For this purpose, one antenna each
250 mm
530 mm
is connected to the smart meter and the storage tank.
Smartmeter ADW 220
On-site
Mains power measurement
• Connection ADW 220 via LS 10A fuse protection to supply voltage corresponding to terminals
UA, UB, UC/N and L1/N.
• Attach the hinged current transformer between the meter and consumer, orientated in the same
direction: L1 yellow / L2 green / L3 red and plug into RJ 11 slot 1. Slot 2 is intended for PV current.
• Establish communication between smartmeter and storage tank via RS485
interface on contacts 21 / 22. Alternatively via a LORA radio connection. For this
purpose, one antenna each is connected to the smartmeter and the storage tank.
The electrical installation may only be carried out by a qualified electrician!
On-site
RS485
21
22
On-site
N
L3 L2 L1
RS485
alternative
On-site
N L3 L2 L1
RS485
optional
N L1
RS485
alternative
PV power measurement
Circuit diagram on the back! You can find the detailed instructions at
