iLight LCMD-10 Installation Manual

Installation Guide
LCMD-10

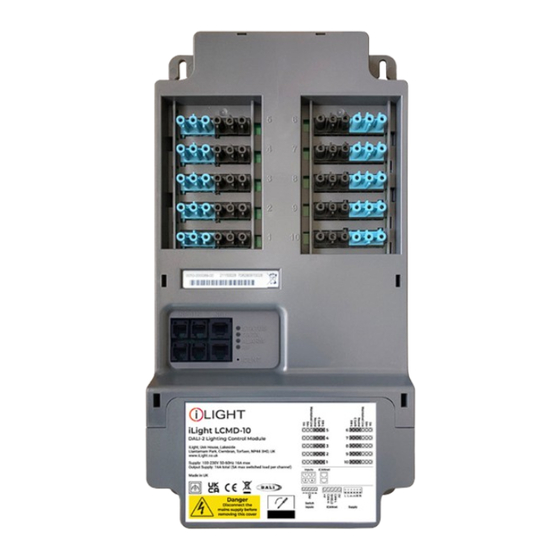

DALI-2 Lighting Control Module

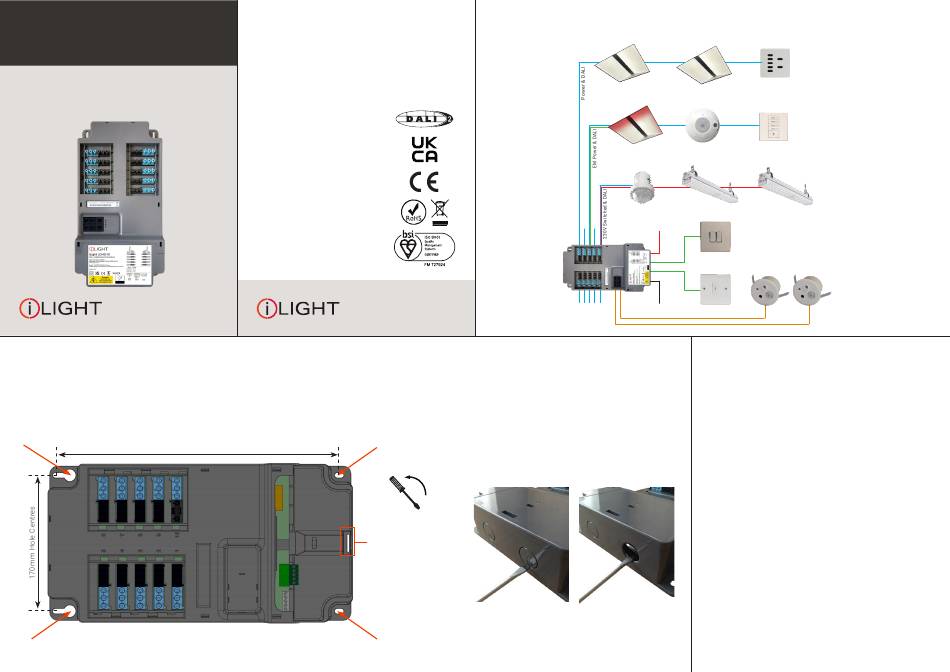

Mounting & Installation
LCMD-10 must be securely mounted to a suitable surface using the 4 mounting holes provided with fixings
suitable for the substrate (Maximum fixing diameter 6mm). The LCM can be mounted in any orientation to
cable trays, walls and direct to a ceiling slab. All cables should be independantly secured with appropriate
fixing straps in accordance with local electrical regulations. Incoming mains, data and input cables should
be installed using suitable compression cable glands to provide strain relief.
Mounting Hole
350mm Hole Centres
Mounting Hole
iLight
Usk House, Lakeside
Llantarnam Park,
Cwmbran,
NP44 3HD, UK
e: enquiries@iLight.co.uk
www.iLight.co.uk
EU Authorised Representative
Cooper Lighting Netherlands B.V.
High Tech Campus
HTC 48
Eindhoven
5656 AE
E&OE. iLight reserve the right to make
changes to the equipment without
prior notice.
© Signify Holding
Doc No: 9850-000754-05
Mounting Hole
Once securely mounted,
remove cover using a
flat-head screwdriver
to access the wiring
compartment. Gently tilt
the screwdriver towards
the top (connectors) of
LCM to release.
Mounting Hole
Typical Schematic
DALI
Drivers / Ballasts
Conventional
Emergency Luminaire
DALI
High Bay Sensor
230V Supply
LCMD-10
iCAN Network
Removing Knockouts
The knockouts can be removed with a flat-head
screwdriver in 2 simple steps:
1. Place the flat-head screwdriver into the slot of the
knockout that is to be removed. The screwdriver must be
placed in the slot nearest to the bottom of the enclosure
(opposite the cover).
2. Hit the end of the screwdriver to shear the knockout and
remove the rest of the knockout by hand if necessary.
Alternatively an appropriate sized hole saw can be used
utilising the drill bit location point at the centre of each
knockout.
DALI
DALI
Drivers / Ballasts
Control Plate
DALI
DALI
Combined Sensor
Control Plate
Switched Luminaire Switched Luminaire
Third Party
RJ12 Connected
Light Switch
Legacy Sensors
Key Switch
Mechanical Data
Dimensions: 200.2mm (w) x 382.8mm (h) x 57.5mm (d)
Maximum diameter of fixings: 6mm
Weight: 2.5 kg
Operating temperature: +2ºC to +50ºC
Max storage temperature: +60ºC
Humidity: +5 to 95% non-condensing
Environmental protection: IP20
Electrical Data
Supply: 230VAC +/- 10% 50-60Hz 0.2A Max
Load Protection: Provided by installer
Control Supply: 15V 100mA
Terminal Sizes (Capacity per terminal):
Supply/DALI screw terminals: 2x1mm
2
Input screw terminals: 0.2mm to 1mm
2
iCANnet™ input/output screw terminals: 5 x 1mm
Terminal Torque Settings:
Supply, input, iCANnet terminals: 0.5Nm
Input Cable (VFC) Length: 30m MAX
Installation must be carried out by a suitably qualified
or 1x 2.5mm
2
2
2
