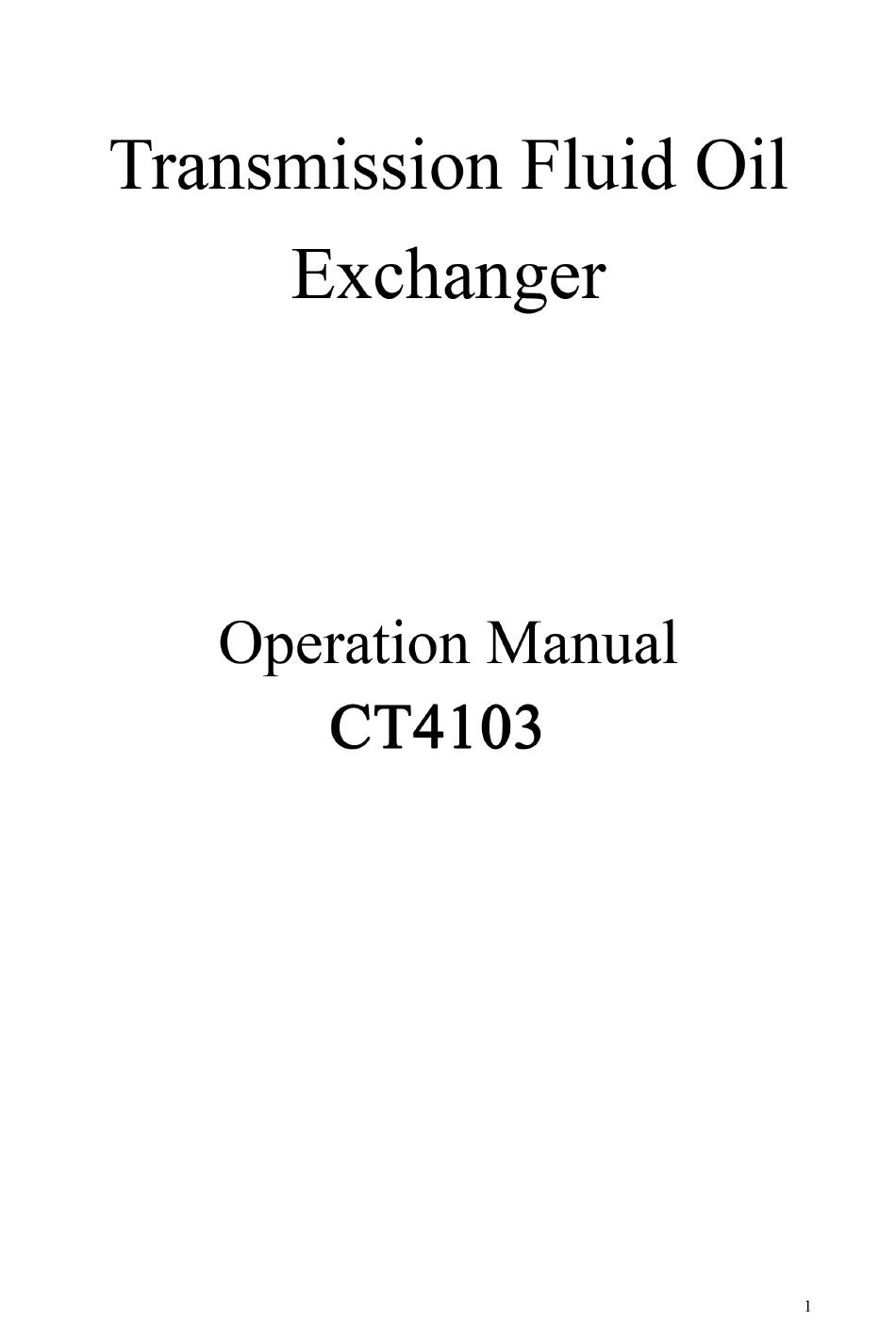

Summary of Contents for Mannol CT4103
-
Page 2: Specifications
Specifications Item Description Remove, clean, and replace fluid from most types and models of automatic gearboxes, transmissions, hydraulic Functions torque transmissions, gearbox radiators and radiation pipelines Working Air Pressure 5~6bar/70 ~90 PSI Air Inlet 1/4”-18 NPT Oil Inlet and Return 2x126 (L) x1/2(dia.) inches (1-red, 1-blue) Hoses All with male and female quick couplers, 300 PSL (max.) - Page 3 which it was intended. Do not modify this tool and do not use this tool for a purpose for which it was not intended. 6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in moving parts.
- Page 4 Caution: This equipment is designed to be operated by qualified and trained personnel. It should only be operated after reading and understanding the safety warnings and operating procedures in this instruction manual. 1. Wear ANSI approved safety goggles. 2. Do not smoke near this equipment. 3.
-
Page 5: Controls And Indicators
Controls and Indicators As the tanks are filled, the fluids can be viewed through the tank and measured. -
Page 6: Operation
Operation Warning: The vehicle engine must never be started in a closed garage, or any other sealed structure. Carbon monoxide is produced during operation and is deadly in a closed environment. Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness, or nausea. If you have any of these signs get fresh aer immediately. - Page 7 7. Turn the (left) Fuel Pressure Recycle Control knob to the Recycle position. 8. Turn the (right) Filling-Pressure Recycle Reverse Control knob to the Recycle position. 9. Start the engine to begin the cleaning process. This should take five minutes. During this process, View the fluid flow through the View Flow tubes.
-
Page 8: Maintenance
Emptying Old Oil 1. Using an Adapter Hose from the kit, connect one end to the TOE New Oil Input Hose Fast Connector, and the other end to the TOE Return Adapter Fast Connector. See illustration below. 2. Turn the Fuel Pressure-Recycle Control knob to the Pressure position. 3. - Page 9 with higher air pressure, and the engine running. Check to see if the direction of the oil inlet and oil return hoses are reversed. Transmission Oil Exchange Parts List Item Description Item Description GA-001 Oil Fill Cap GA-014 3-way valve GA-002 Straight joint GA-015...
- Page 10 Drawin...
- Page 11 Adapter and Fitting Kit Parts List Serial No Appearance Quantity Serial Quantity Appearance AX-8717 AX-8701 AX-8718 AX-8702 AX-8703 AX-8719 AX-8704 AX-8720 AX-8721 AX-8705 AX-8706 AX-8722 AX-8723 AX-8707 AX-8708 AX-8724 AX-8709 AX-8725 AX-8710 AX-8740 AX-8711 AX-8741 AX-8712 AX-8742 AX-(8743~8746) AX-(8713~8714) AX-8715 AX-8747 AX-8716...
