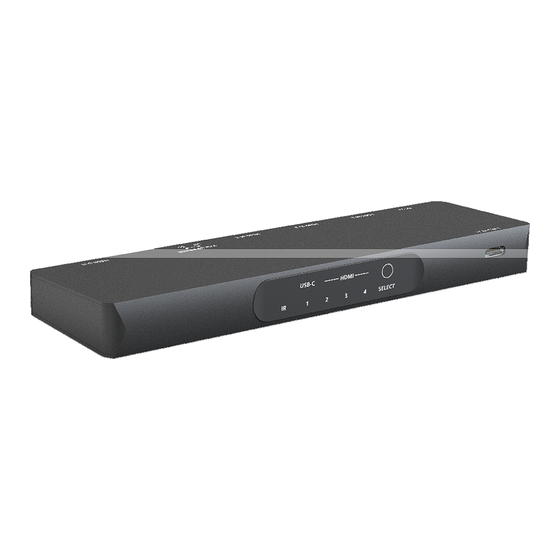

- Page 1 SW-5004CZ 4x1 HDMI 2.0a & USB-C Switch with IR & 10W Power Delivery User Manual rev: 230807 Made in Taiwan...
- Page 2 INTRODUCTION TABLE OF CONTENTS The SW-5004CZ 4x1 HDMI 2.0a & USB-C Switch with IR & 10W Power Deliver is a convenient INTRODUCTION ........................2 device that allows you to switch effortlessly between four HDMI/USB-C sources on your FEATURES ..........................2 high-definition display.
- Page 3 SPECIFICATIONS PANEL DESCRIPTIONS Model Name SW-5004CZ Technical Role of usage 4x1 switch HDMI compliance HDMI 2.0a HDCP compliance HDCP 2.2 Video bandwidth Single-link 600MHz [18Gbps] Video Support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) DTS-HD Master Audio, Dolby TrueHD Dolby Digital...
- Page 4 CONNECTION DIAGRAM OPERATION APPROACH Method A: IR Remote Control Function Key Function Description POWER Reserved SOURCE SELECT 1 Select HDMI INPUT 1 to be the input source SOURCE SELECT 2 Select HDMI INPUT 2 to be the input source SOURCE SELECT 3 Select HDMI INPUT 3 to be the input source SOURCE SELECT 4 Select HDMI INPUT 4 to be the input source...
- Page 5 WARRANTY The SELLER warrants the SW-5004CZ 4x1 HDMI 2.0a & USB-C Switch with IR & 10W Power Delivery free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year...
