In order to calibrate your system you will first have to define the scale.
For more detail please see section 3.2 in the user manual.

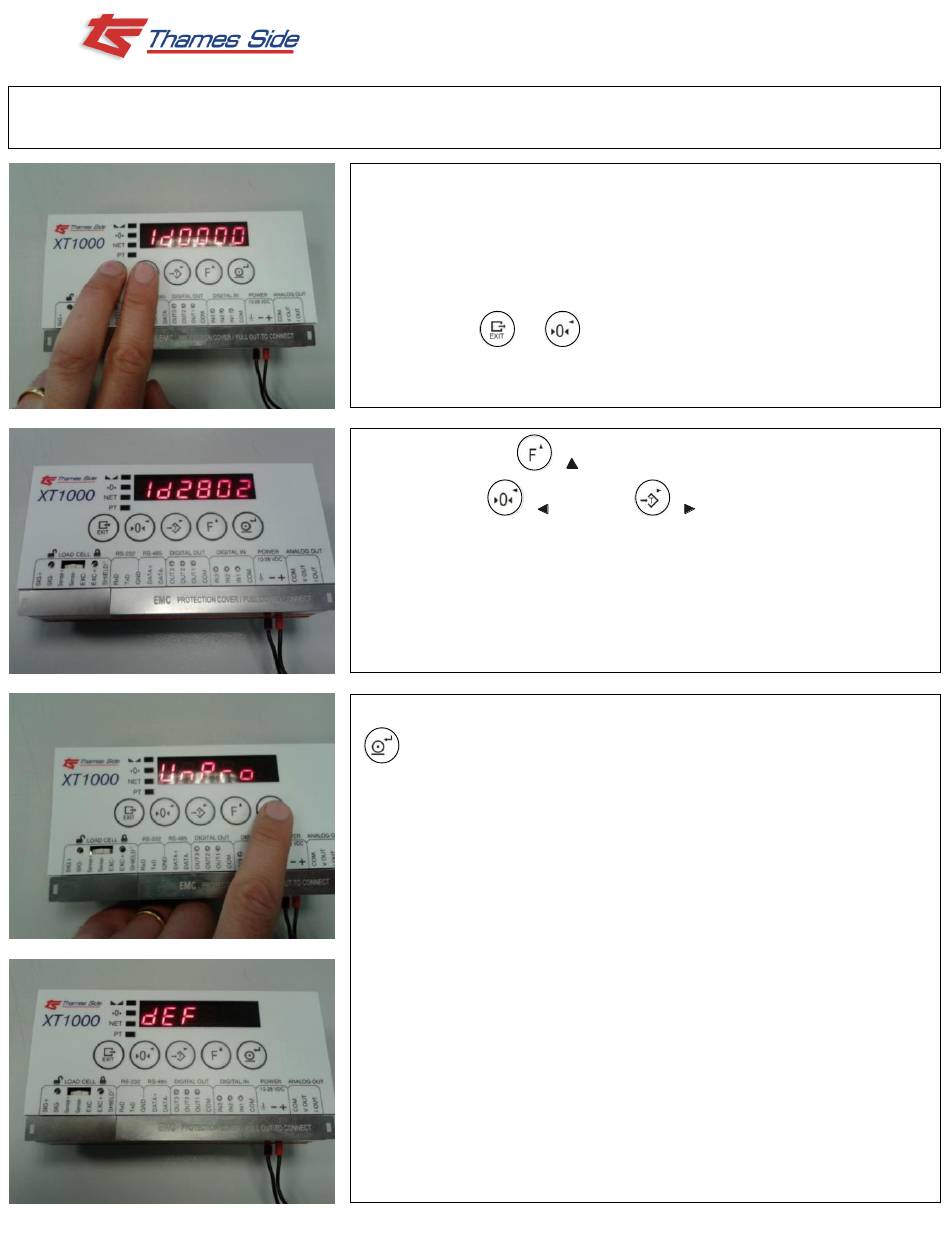

Turn your XT1000 on and wait until the instrument has fully completed
its countdown sequence and the display has stabilised.
If turning on for the first time it is advisable to leave the XT1000 for 30
minutes prior to calibration.
Press both the
to Id0000 with the first 0 flashing.
Pressing the up key
Pressing the left
each position. E.g. _000, 2_00, 28_0, 280_
Change these 0's to read 2802 which is the factory access code.
Once you have changed Id0000 to read Id2802 press the enter
The XT1000 will then briefly display UnPro to confirm that the
instrument is in the unprotected mode and the parameters can be
altered.
Once it has shown UnPro the display will change to show to dEF (Scale
Definition)
XT1000 Quick Start Guide
and
( ), allows you to change each 0 to 1, 2, 3 etc.
( ) and right
button.
keys together which will change the display
( ) keys then moves you to
Page 1 of 8
Advertisement
Related Manuals for Thames Side XT1000
Summary of Contents for Thames Side XT1000
- Page 1 Turn your XT1000 on and wait until the instrument has fully completed its countdown sequence and the display has stabilised. If turning on for the first time it is advisable to leave the XT1000 for 30 minutes prior to calibration.
- Page 2 XT1000 Quick Start Guide Press on dEF and you will then see CAP, which is the maximum capacity of your scale that you will require. Press again and this allows you to input the maximum capacity of your scale using up to 6 digits. You input this number using the keys.
- Page 3 XT1000 Quick Start Guide Press to move to dP, which is the position of the decimal point that you require in relation to the capacity of the scale, (for example in a 3000KG scale you may only require 1KG intervals so 0 decimal places)
- Page 4 CAL 2, to perform a theoretical calibration if you do not have any verified weights. (Section 4.2 in the user manual) Pressing again when you are on dEF exits the configuration level completely. Note: If you exit the configuration level you will have to re-enter the Factory Access Code 2802 to calibrate your XT1000. Page 4 of 8...
- Page 5 XT1000 Quick Start Guide CALIBRATION WITH VERIFIED WEIGHTS (CAL 1) Section 4.1 in the user manual Ensure that there is no unwanted weight on the system and that you are in the configuration level. Using the keys scroll from dEF until you see CAL 1.
- Page 6 XT1000 Quick Start Guide Ensure that the value shown on the XT1000 matches the weight placed on the scale. You can alter this value using the keys. Once you have the correct weight showing press and -CALI- will again flash storing this value.
- Page 7 XT1000 Quick Start Guide THEORETICAL CALIBRATION (CAL 2) when no verified weights are available. Section 4.2 in the user manual Ensure that there is no unwanted weight on the system and that you are in the configuration level. Using the keys scroll from dEF until you see CAL 2.
- Page 8 XT1000 Quick Start Guide Press to see LSn which is the mv/v value of the load cell(s) being used. Typically this information is on a sticker on the load cell. If you have more than one cell in your system then average out the mv/v values and use this average figure.
