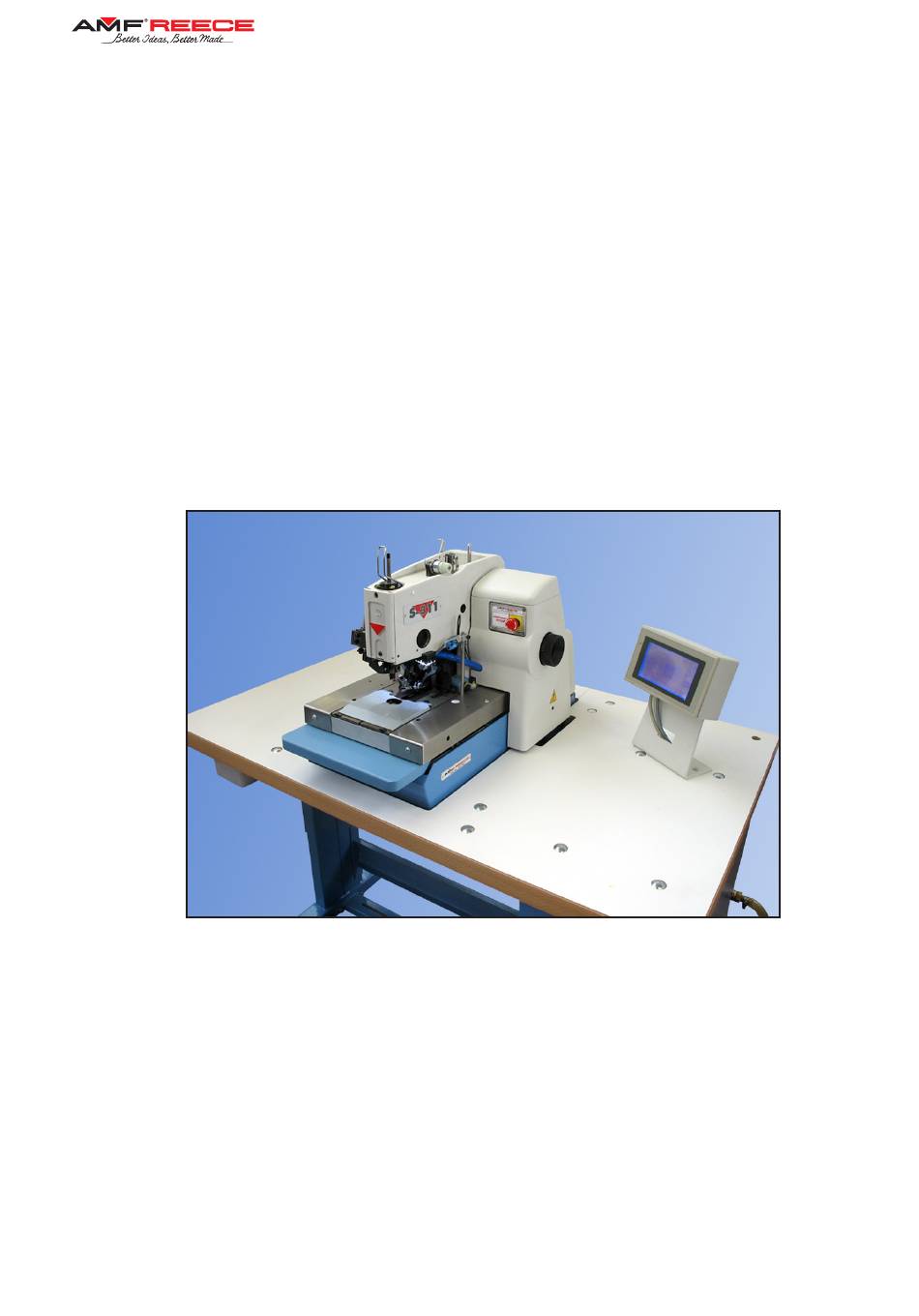

- Page 1 S-311+ACL S-311+ACL MODEL OPERATING INSTRUCTIONS Released: 01/2014 E-mail: service@amfreece.cz; webside: amfreece.com Phone: +420 582 309 146; Fax: +420 582 360 606...
-
Page 3: Table Of Contents
S-311+ACL TABLE OF CONTENTS A - INTRODUCTION........................1-5 ACL 1. GENERAL INFORMATION....................1-5 ACL 2. TERMINOLOGY OF MACHINE PARTS................1-6 ACL 3. TECHNICAL SPECIFICATIONS ................... 1-7 ACL B - CORRECT USAGE......................1-9 ACL 1. SETTING UP THE MACHINE INTO HOME POSITION TO GET READY FOR SEWING.. -
Page 5: A - Introduction
S-311+ ACL A - INTRODUCTION 1. GENERAL INFORMATION Electronical eylet buttonhole machine with a cutting block enables sewing of buttonholes within the range 13-38 mm (limitations given by the machine type) and without the need to change the cutting block . The device is supplied with AF and LTT models. -
Page 6: Terminology Of Machine Parts
S-311+ ACL A - INTRODUCTION 2. TERMINOLOGY OF MACHINE PARTS Sliding block Motor 1-6 ACL Released: 01/2014 E-mail: service@amfreece.cz; webside: amfreece.com Phone: +420 582 309 146; Fax: +420 582 360 606... -
Page 7: Technical Specifications
S-311+ ACL A - INTRODUCTION 3. TECHNICAL SPECIFICATION Machine type/model AF/ACL AF/ACL-LP1 AF/ACL-LP2 AF/ACL-LPE Performance of the machine 1000 - 2000 stitches per minute (500 - 1000 rotation per minute of the drive shaft) Buttonhole lenght 13 - 38 mm 13 - 26 mm 13 - 30 mm 13 - 30 mm... - Page 8 S-311+ ACL A - INTRODUCTION Machine type/model LTT/ACL LTT/ACL-LP1 LTT/ACL-LP2 LTT/ACL-LPE Performance of the machine 1000 - 2000 stitches per minute (500 - 1000 rotation per minute of the drive shaft) Buttonhole lenght 13 - 38 mm 13 - 26 mm 13 - 30 mm 13 - 30 mm Cutting lenght...
-
Page 9: B - Correct Usage
S-311+ ACL B - CORRECT USAGE 1. SETTING UP THE MACHINE INTO HOME POSITION TO GET READY FOR SEWING Turn the switch clockwise into the “on” I. The display is activated and illuminated. The screen with information about the manufacturer and program numbers downloaded in the machine show up. -
Page 10: C - Machine Installation
S-311+ ACL C - MACHINE INSTALLATION 1. OPTICAL SENSOR INSTALATION 1. Dismantle the right cover of the machine bedplate and replace it with the new cover supplied in the kit. 2. Place and seal the reflective foil into the hole already made in the bedplate. 3. -
Page 11: Kit Acl-Lpe Installation
S-311+ ACL C - MACHINE INSTALLATION 2. KIT ACL-LPE INSTALATION To connect the pneumatic folow the instruction in this schema. 6 bar Main regulator Auxiliary cutting regulator Auxiliary LPE cutting regulator Cutting Switch valve for cutting 1-11 ACL Released: 01/2014 E-mail: service@amfreece.cz;... -
Page 12: Feed Cable Installation For Switch Valve Of Cutting
S-311+ ACL C - MACHINE INSTALLATION 2.1 FEED CABLE INSTALLATION FOR SWITCH VALVE OF CUTTING 1. Connect cable 06.1900.0.015 into marked terminal in electrobox. 2. Connect cable 06.1900.0.016 into valve connector 3. Fasten then opposite cable end into the plug on electrobox and lock with screws. 9 10 11 12 13 14 15 16 17 Blue... -
Page 13: D - Operating The Machine Functions
S-311+ ACL D - OPERATING THE MACHINE FUNCTIONS 1. SEWING A BUTTONHOLE Set up the machine into home position for sewing as in chapter C1 in this section. It is recommended to leave the machine in that state for 3 minutes to warm up before sewing. Check that the threads are threaded correctly as described in chapter C3 and place the work piece under the machine clamp feet. -
Page 14: Description Of The Acl Screen
S-311+ ACL D - OPERATING THE MACHINE FUNCTIONS 2. DESCRIPTION OF THE ACL SCREEN Display messages: Counter - standard - Ready, Busy Button to Setting up first Selectionof machine models of buttonholes Key for easy - error - start with letter E set up buttonhole Key to set up and optional accesories. -
Page 15: Setting Up Acl Display
S-311+ ACL D - OPERATING THE MACHINE FUNCTIONS 3. SETTING UP ACL DISPLAY Press key to select the code S-311 Main screen Back to main screen Key to select the machine mode Password: 1 2 3 Back to To confirm your selection, press main screen Back to Back to... -
Page 16: Lapel System - Optional Accessory To Acl Mechanism
S-311+ ACL D - OPERATING THE MACHINE FUNCTIONS 4. LAPEL SYSTEM – OPTIONAL ACCESSORY TO ACL MECHANISM Lapel system provides the operator with greater freedom when selecting the buttonhole dimensions. The operator can sew a buttonhole with eye cut and a buttonhole without eye cut during one sewing cycle and does not need to change the cutting knife. -
Page 17: Setting Up The Machine For Acl Lp1 (Acl-Lp2, Acl-Lpe) Version
S-311+ ACL D - OPERATING THE MACHINE FUNCTIONS 4.1. SETTING UP THE MACHINE FOR ACL LP1 (ACL-LP2, ACL-LPE) VERSION S-311 main sceen Back to S-311 main sceen main screen Once the ACL-LP1 system is activated, a buttonhole with eye cut along the whole sewing appears on the display. The length of cut is set up automatically according to the selected model;... -
Page 18: Setting Up The Lapel Buttonhole For Acl-Lp1 (Acl-Lp2, Acl-Lpe) Version
S-311+ ACL D - OPERATING THE MACHINE FUNCTIONS 4.2. SETTING UP THE LAPEL BUTTONHOLE FOR ACL-LP1 (ACL-LP2, ACL-LPE) VERSION S-311 main screen Setting up eye type Back to Setting up lenght of buttonhole main screen Back to Setting up lenght of buttonhole main screen S-311 main screen 1-18 ACL... -
Page 19: Using The Programmed Buttonhole In Cycle Mode
S-311+ ACL D - OPERATING THE MACHINE FUNCTIONS 4.3. USING THE PROGRAMMED BUTTONHOLE IN CYCLE MODE: Example: You wish to sew buttonholes in program no 1 in this order: 1, 1, 1, 2. 1. Press the key for setting up the program number. Numerical keypad appeears. -
Page 20: Optical Sensor -Optional Accessory For Lapel System
S-311+ ACL D - OPERATING THE MACHINE FUNCTIONS 5. OPTICAL SENSOR –OPTIONAL ACCESSORY FOR LAPEL SYSTEM This special device has been designed in order to automatize the sewing cycle when producing ladies´ and men’s jackets. The function of the device is to identify the buttonhole type that is to be sewn and make the work easier for the operator. -
Page 21: Using The Programmed Buttonhole In Cycle Mode With Optical Sensor
S-311+ ACL D - OPERATING THE MACHINE FUNCTIONS 5.2. USING THE PROGRAMMED BUTTONHOLE IN CYCLE MODE WITH OPTICAL SENSOR ACTIVATED: Example: You wish to sew buttonholes in program no 1 in this order: 1,1,1,2. 1. Press the key for setting up the program number. Numerical keypad appears. -
Page 22: Sliding Block Holder Adjustment
S-311+ ACL E - STANDARD MACHINE ADJUSTMENT 1. SLIDING BLOCK HOLDER ADJUSTMENT Correct adjustment of mechanical parts enables changing the cut within a given range when the buttonhole length is changed. 1. Adjust the screening so that its edge stays in the alignment with sliding block edge 2. -
Page 23: Cutting Block Position Adjustment In Acl Mechanism
S-311+ ACL E - STANDARD MACHINE ADJUSTMENT 2. CUTTING BLOCK POSITION ADJUSTMENT IN ACL MECHANISM 1. Adjust the machine for version ACL - (LP1, LP2, LPE) see section C - 4.1. 2. Adjust the requested cutting lenght on the display. 3. -
Page 24: Pressure Adjutment On The Regulators Of The Filter Unit
S-311+ ACL E - STANDARD MACHINE ADJUSTMENT 3. PRESSURE ADJUTMENT ON THE REGULATORS OF THE FILTER UNIT Correct pressure adjustment affect the cutting knifes life cycle. 1. Adjust pressure 0,6 MPa (0,5) MPa on the main regulator 2. Adujst pressure 0,4 MPa on cutting regulator 3.
