Airaid 314-294 Installation Instructions

INSTALLATION INSTRUCTIONS
314-294
704-466 Airaid Oiled Media Filter
315-294
705-466 SynthaMax Dry Media Filter
2020-22 JEEP WRANGLER
2021-22 JEEP GLADIATOR
V6-3.0 DSL
A
B
C
TOOLS NEEDED:
Ratchet
Extension
10mm socket
M4 allen key
M3 allen key
T20 torx
Flat blade screw driver

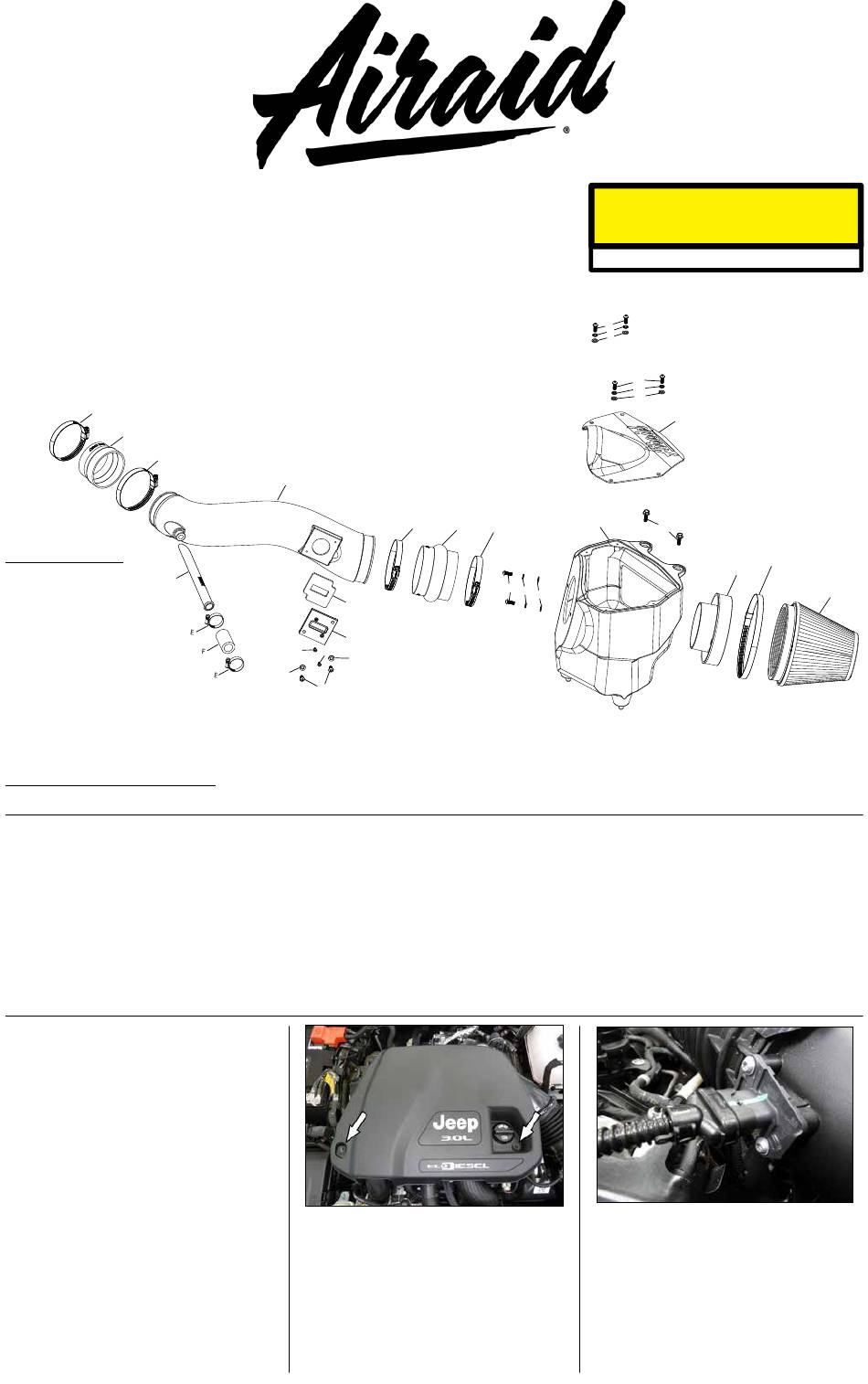

COMPONENT IDENTIFICATION
Description
A HOSE CLAMP; #48
B HOSE; 3.25"ID TO 3"ID X 2"L
C HOSE CLAMP; #52
D INTAKE TUBE; (OV)
E HOSE CLAMP; #12 MINI
F HOSE; 3/4" - 0.1667 FT
G GASKET; 3/16" PORON
Full color instructions can be viewed on our web site at Airaid.com. If you need any assistance please call 1-800-498-6951 to
speak with a representative in our Customer Service Center before returning the product.
TO START:
1. Turn off the ignition and disconnect the negative
battery cable.
NOTE: Disconnecting the negative battery cable
erases pre-programmed electronic memories.
Write down all memory settings before
disconnecting the negative battery cable. Some
radios will require an anti-theft code to be
entered after the battery is reconnected. The
anti-theft code is typically supplied with your
owner's manual. In the event your vehicles
anti-theft code cannot be recovered, contact an
authorized dealership to obtain your vehicles
anti-theft code.
D
V
I
I
J
K
Qty. Part # Description
1 08601 H ADAPTOR; MAF SENSOR
1 08186 I BOLT; M4-.7 X 8MM ALNHD
1 08610 J WASHER; 6MM FLAT
1 087499A K BOLT; M6-1 X 12MM BTNHD
2 08420 L HOSE CLAMP; #64 STAINLESS
1 KITHOSE50 M HOSE; HUMP 4"ID X 3'L
1 09069 N WASHER; M6 SPLIT LOCK
2. Remove the two bolts that secure the engine
cover to the engine and then remove the cover
from the vehicle.
L
M
L
K
G
H
J
Qty.
1
2
8
4
2
1
6
NOT LEGAL FOR SALE OR USE ON ANY POLLUTION
CONTROLLED MOTOR VEHICLE IN CALIFORNIA OR
STATES ADOPTING CALIFORNIA EMISSION PROCEDURES.
See Airaid.com for CARB status on each part for a specific vehicle
O
N
J
O
N
J
R
Q
N
J
Part # Description
21515-1 O BOLT; M6 X 1 X 16MM BTNHD
07733 P AIRBOX LID; CLEAR
08269 Q BOLT; M6-1 X 20, HEX/FLANGE
07794 R AIRBOX; (OV)
08645 S ADAPTOR; #454
08418 T CLAMP; #104
1-3025 U AIR FILTER
V INSERT; CCV, .625"OD X 6.5"L
3. Release the locking tab and then disconnect the
mass air sensor electrical connection.
P
T
S
U
Qty. Part #
4 07730
1 088093
2 1-2038
1 087500
1 27300
1 KITHS104
1 704/705-466
1 088201
