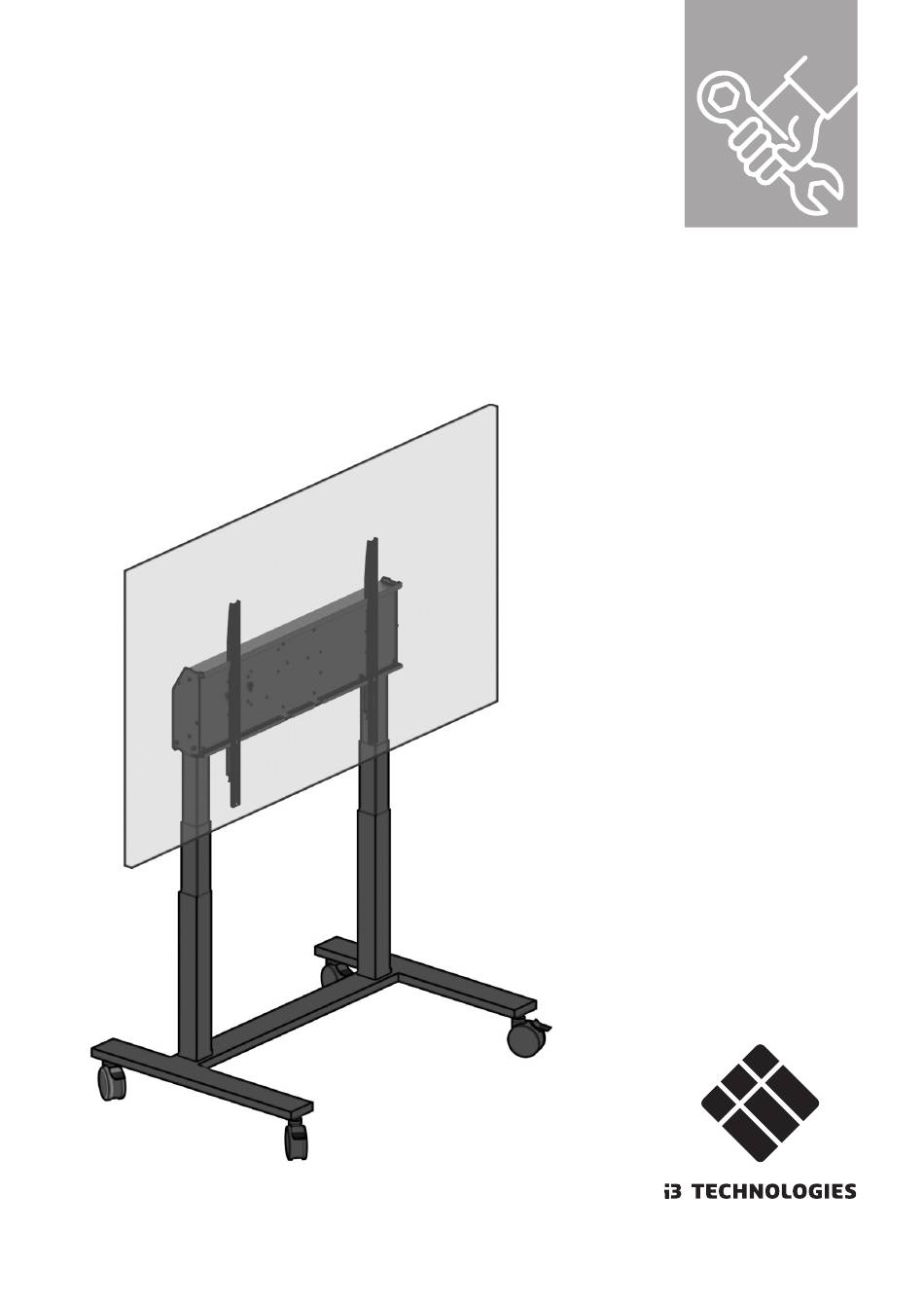

- Page 1 HEIGHT ADJUSTABLE MOBILE FLOORSTAND for i3TOUCH 55” - 86” and compatible displays up to VESA 800x600 100 kg max...
- Page 2 Concise Installation Guide Guía de Instalación Concisa رصتخملا تيبثتلا ليلد Guia de Instalação Concisa Guide d'Installation Concis Kurzanleitung zur Installation Kısa Kurulum Kılavuzu Guida all'Installazione Concisa Beknopte Installatiehandleiding Zwięzły Przewodnik Instalacyjny Ghid de Instalare Concis Rövid Telepítési Útmutató Stručný Instalační Průvodce Συνοπτικός...
- Page 3 M6x45 M6x12 M8x25 M4x6 ø12x3 M6x130 40 kg i3LYFT-M...
- Page 4 Important safety information for both installer and user: Installer: • Before starting the installation, read the safety instructions and this product manual carefully. • Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury and damage to equipment! User: •...
- Page 5 • The product will be stopped automatically when an obstacle or jitter during ascending operation. • The anti-collision function does not relieve the user of his responsibility to respect the safety distances when operating the device. i3LYFT-M...
- Page 6 ø12x3...
- Page 7 M6x45 i3LYFT-M...
- Page 9 M6x12 i3LYFT-M...
- Page 11 M4x6 i3LYFT-M...
- Page 13 i3LYFT-M...
- Page 15 i3LYFT-M...
- Page 16 OVERVIEW OF CONNECTIONS 29V 3A 1,3m 3x1mm² 5A max. 3x1mm² 100-120V~ 50/60Hz 200-240V~ 50/60Hz...
- Page 17 i3LYFT-M...
- Page 18 M8x25...
- Page 19 M6x130 i3LYFT-M...
- Page 20 100-120V~ 50/60Hz 5A max 200-240V~ 50/60Hz 5A max 100-120V~ 50/60Hz 200-240V~ 50/60Hz...
- Page 21 * When the column descends to the b0ttom and rebounds 7mm, the reset is complete). • Use the controller to rise the stand, ensure it functions normally, and observe the length of the AC cable to ensure that it will not be pulled. i3LYFT-M...
- Page 22 WARNINGS BEWARE OF ELECTRICAL SAFETY. CONNECT TO A GROUNDED POWER OUTLET. DO NOT OPEN; NO USER SERVICEABLE PARTS INSIDE. AT ANY TIME, THE UNIT MUST BE ABLE TO BE DISCONNECTED FROM MAINS. KEEP THE MOTION AREA FREE FROM OBJECTS. KEEP A SAFETY DISTANCE FROM AT LEAST 20CM. ASSURE INSTALLATION BY COMPETENT PERSON.
- Page 23 BEFORE DISPLACING THE FLOORSTAND. DO NOT USE THE FLOORSTAND ON AN UNEVEN FLOOR. THERE IS RISK OF TILTING AND IT MAY DAMAGE THE PRODUCT. FOR INSIDE USE ONLY. PROTECT FROM WET, SPRAY AND FLUIDS. CLEAN WITH A MICROFIBER OR DAMP CLOTH. i3LYFT-M...
