Cup Dispenser and Water Bottle Holder
Quick Installation and Maintenance Instructions
Medical Facility Responsibility
Preventive maintenance checks must be performed regularly to maintain the quality and performance of this product. Any parts that
may be broken, missing, worn, distorted, or contaminated in any way should not be used and all affected parts should be replaced
immediately. Should the necessity of any repair be suspected; please contact your local distributor.
WARNING: It is the responsibility of the end user to ensure all aspects of installation are covered by following the full manual
!
and reviewing warnings/notes found at https://amico-apps.com/amico-website/files/downloads/amico-aa-mobile-
computer-workstation-hummingbird-manual.pdf
Installation Tool
7/32 Allen key
(NOT PROVIDED)

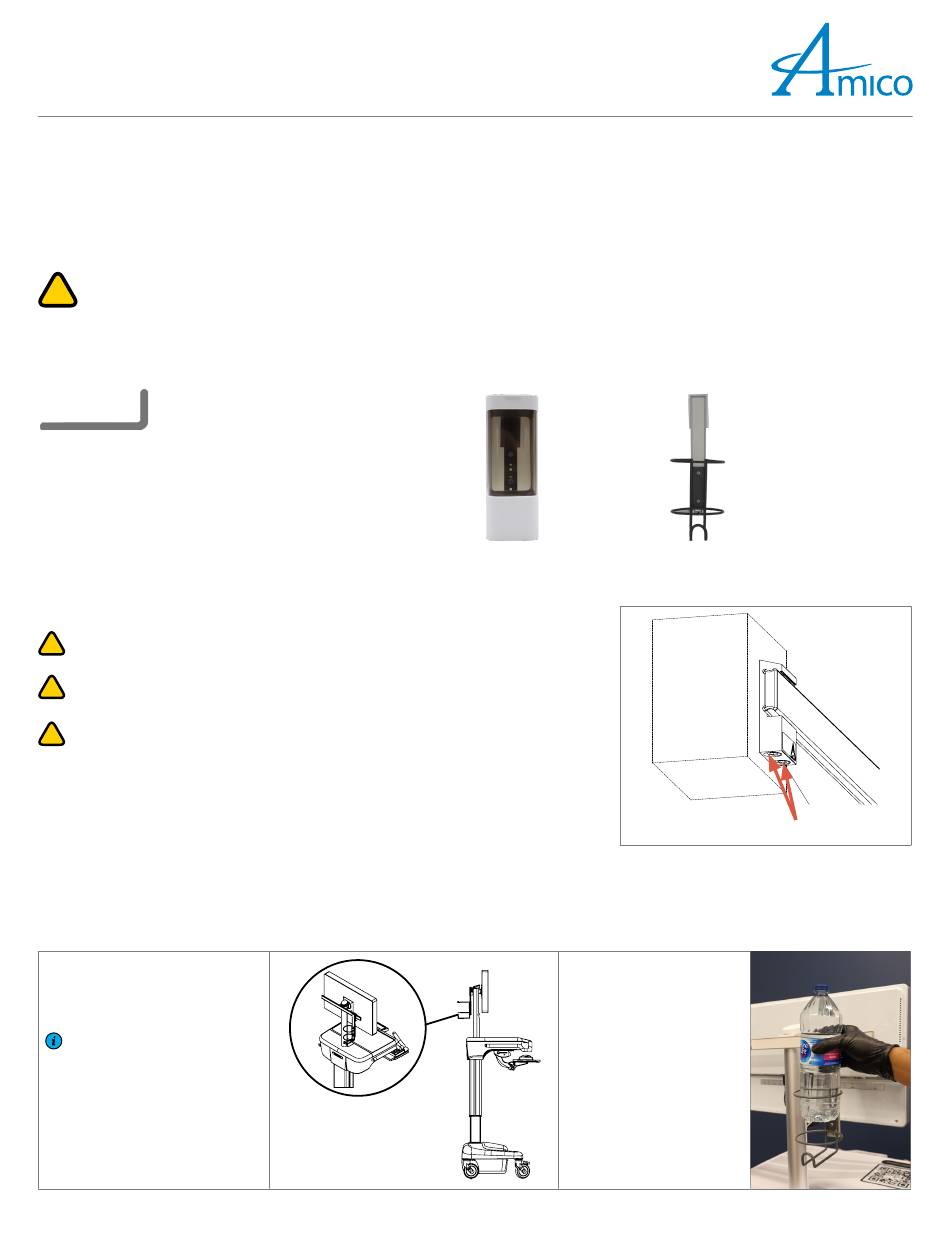

Installation Instructions for Water Bottle Holder (HMA-WBHLD-F)
!
CAUTION: Avoid dropping/free falling the water bottle into the holder.
!
CAUTION: Secure the water bottle cap when it's unused to avoid spilling.
!
CAUTION: Secure the FTA adapter by tightening the 2x bottom set screws
using a 7/32 Allen key. (Figure 1)
Specification
Dimensions (W x D x H): 3.5" x 5.0" x 10.4" (8.9 cm x 12.7 cm x 26.4 cm)
Weight: 0.7 lbs (0.3 kg)
This product is designed to fit a water bottle which is less than or equal to 1 liter in
volume, maximum diameter of 3.5" (8.8 cm), and weights no more than 2.5 lbs (1.13 kg).
1. Place the WATER BOTTLE HOLDER on
the PERCH BAR (Figure 2) and secure
by tightening the adapter bottom
screw with a 7/32 Allen key. (Figure 1)
Note: Refer to the "Fairfield Adapter
Installation" to install the holder.
Installation Reference
Cup Dispenser
2. Place the water bottle inside
Figure 2
PROJECTION
PRIVATE AND CONFIDENTIAL
-
DESCRIPTION:
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES
HMA WATER BOTTLE HOLDER
AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN
PART NO:
UPON REQUEST AND WITH THE UNDERSTANDING THAT
HMA-WDHLD-F
NO COPIES ARE TO BE MADE WITHOUT THE CONSENT
OF AMICO ACCESSORIES
SCALE:
NTS
PY
DRAWN BY:
DATE:
Water Bottle Holder
ADAPTER BOTTOM SET SCREWS
Figure 1
the WATER BOTTLE HOLDER
gently. (Figure 3)
85 Fulton Way
Richmond Hill, Ontario
L4B 2N4, Canada
Toll Free: 1.877.264.2697 (T)
Tel: (905) 763.7778
Fax: (905) 763.8587
SHT.
1
OF
1
2023-03-23
DRAWING NO:
ADAPTER BOTTOM
SET SCREWS
Figure 3
1
