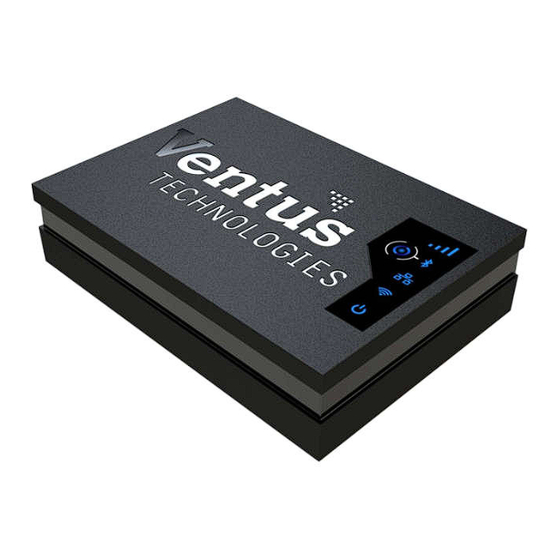

Ventus LC100 User Manual

Download this manual

LC100 User Manual

Notes: This device is for the Managed Cellular Service use only, and must be

installed by the trained technicians. It is not for resale or used as consumer

electronics.

Applications: Wireless router connecting the devices on LAN and WLAN to Internet

through cellular network.

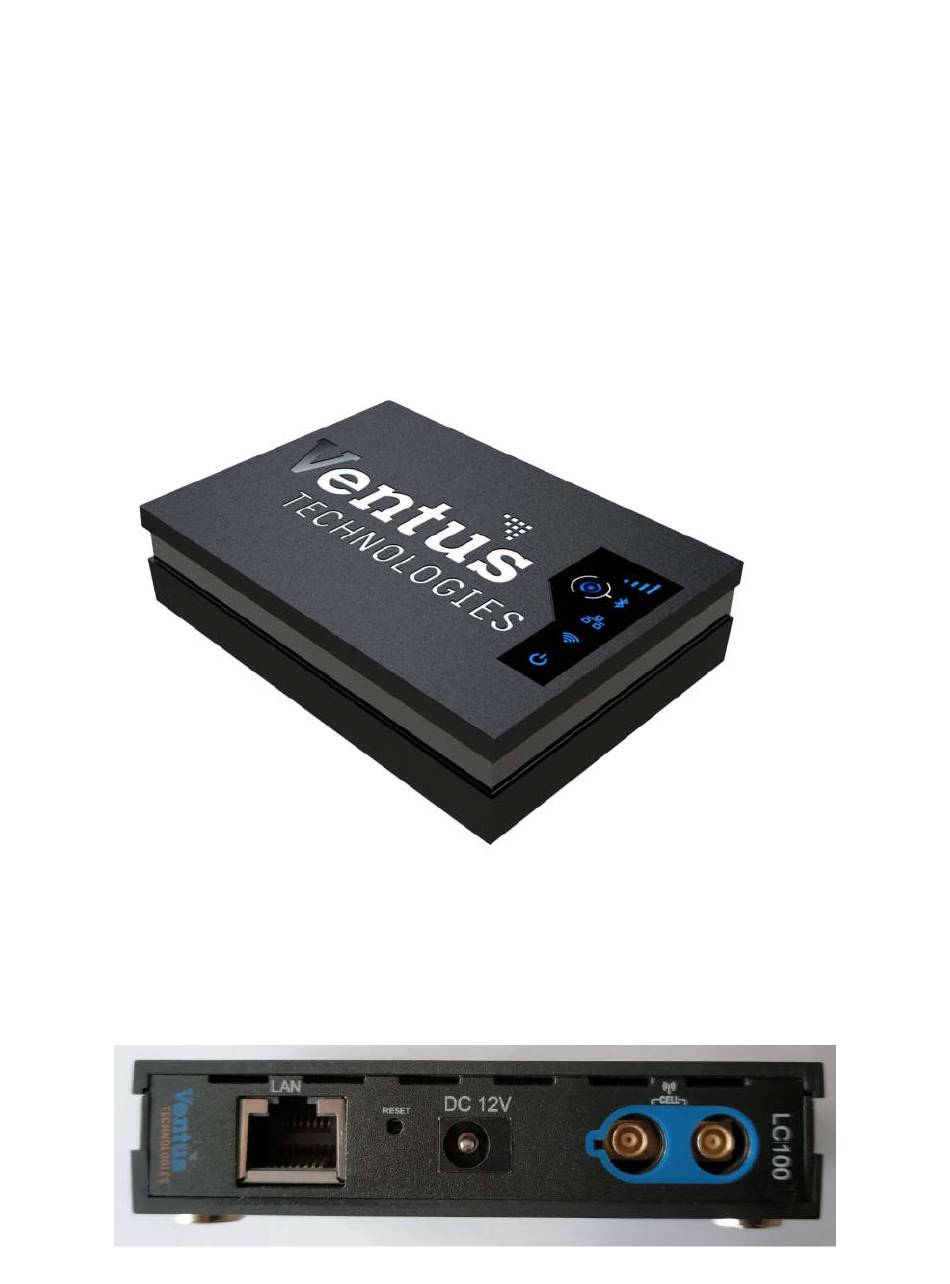

The LC100 provides:

1. One LAN port for local network switch or devices;

2. 12VDC 2.1/5mm power jack for power supply

3. One Dual-MCX connect for antennas

Need help?

Do you have a question about the LC100 and is the answer not in the manual?

Page 1 LC100 User Manual Notes: This device is for the Managed Cellular Service use only, and must be installed by the trained technicians. It is not for resale or used as consumer electronics. Applications: Wireless router connecting the devices on LAN and WLAN to Internet through cellular network.
Page 2 Installation: 1. Connect the LAN to the devices need the connectivity to the Internet through the Cell LTE wireless network. 2. Connect the antenna to the Dual-MCX socket 3. Apply the 12V DC to the power jack.
Page 3 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Warning: FCC Compliance Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s...
Page 4 Safety Warning Protecting Against Electrostatic Discharge CAUTION: Disconnect product from mains power source in accordance with productspecific safety information located on the “Safety Information” section of this website. Electrostatic discharge (ESD) events can harm electronic components inside your computer. Under certain conditions, ESD may build up on your body or an object, such as a peripheral, and then discharge into another object, such as your computer.
