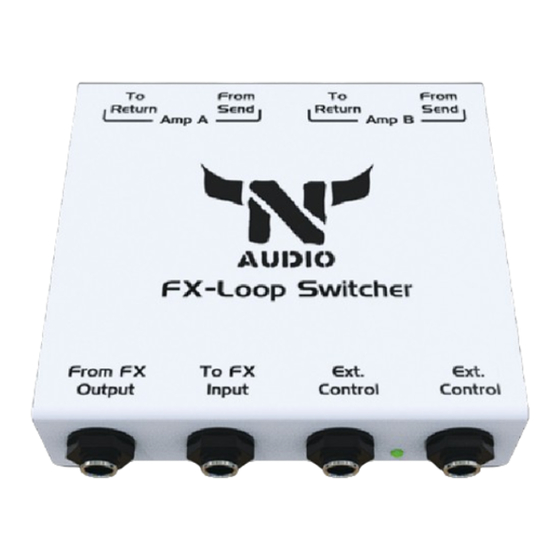

  • Page 2 THANK YOU for choosing the N-audio FX-Loop Switcher, and welcome to the N-audio family. Introduction: The FX-Loop Switcher is an extension unit designed to expand the Two Amps To Cabinet Switcher capabilities. It allows for simultaneous switching of the amplifiers and the FX effects connected to the Send-Return chain, ensuring that the selected FX effects are routed to the active amplifier.
  • Page 3 FX Loop п Long cables Effects Pedalboard Power supply When using the MONO setup and the FX-Loop Switcher sits on your pedalboard, you can power the Relay unit from the second Footcontroller output as well. Powering the Entire System: The Two Amps To Cabinet system is powered by the external power supply connected to the Footcontroller.
  • Page 4 Technical Specifications: • Galvanically isolated passive relay routing • No active electronics through the signal path • LED indication for the active Amplifier FX loop • Current Consumption: 70mA • Dimensions: 10x11x3.5 cm n-audio.net fb.com/naudiocustom...
