Titan 37000 4K-UHD

Titan 41000 4K-UHD

Titan 43000 WU

Titan 47000 WU

IMPORTANT INFORMATION

Rev A November 2023

123-906A

Table of Contents

Need help?

Do you have a question about the Digital Projection Titan 37000 4K-UHD and is the answer not in the manual?

Questions and answers

Summary of Contents for DELTA GROUP Digital Projection Titan 37000 4K-UHD

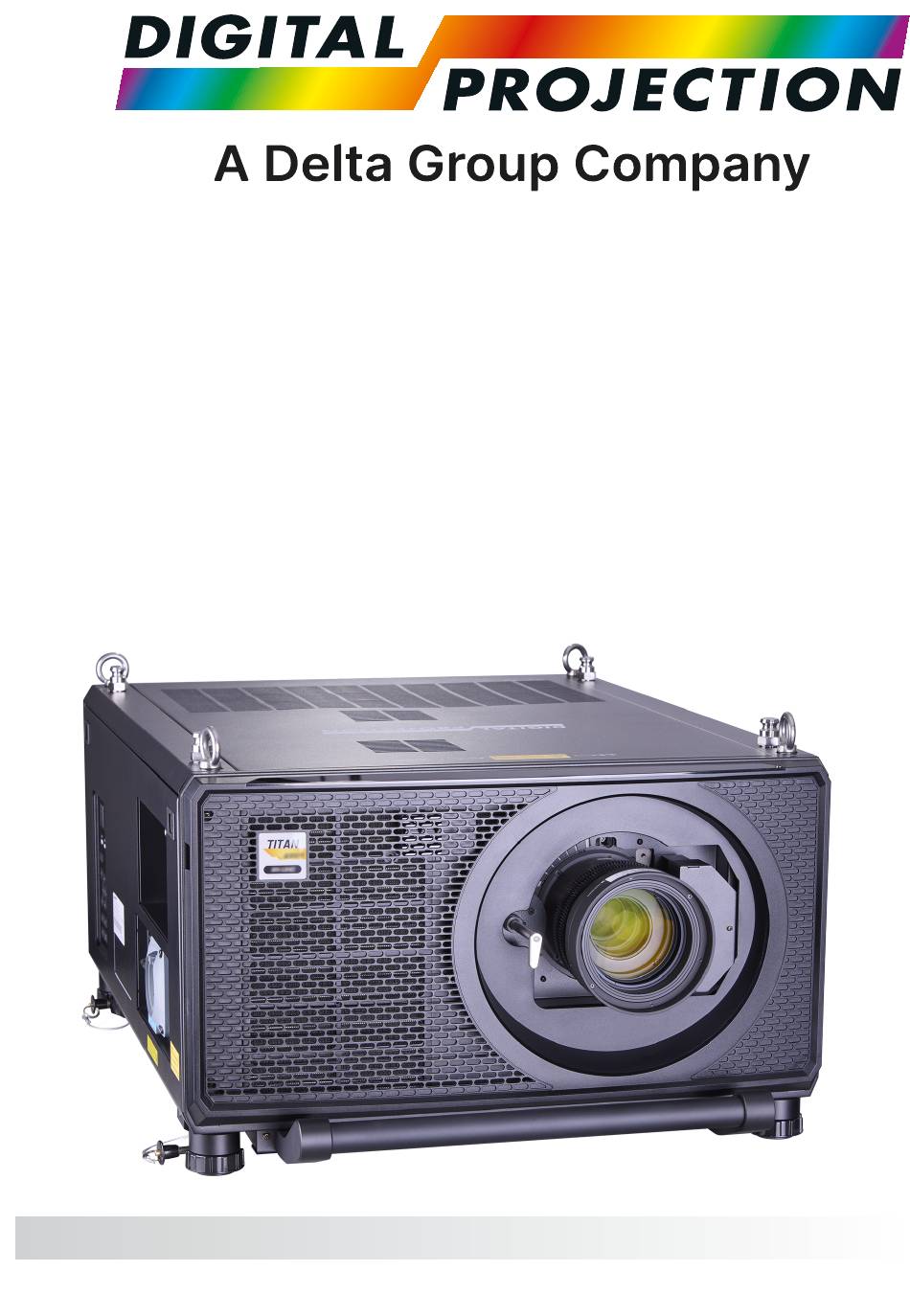

Page 1 Titan 37000 4K-UHD Titan 41000 4K-UHD Titan 43000 WU Titan 47000 WU IMPORTANT INFORMATION Rev A November 2023 123-906A...
Page 2 Titan 37000 / 41000 / 43000 / 47000 This page is intentionally left blank Rev A November 2023 Important Information page 2 Digital Projection Ltd.
Page 3: Introduction
Introduction Titan 37000 / 41000 / 43000 / 47000 Introduction Congratulations on your purchase of this Digital Projection product. The information in this document is relevant for the following products: Titan 37000 4K-UHD (EMEA and China) Titan 37000 4K-UHD (USA) Titan 37000 4K-UHD (USA TAA) Titan 41000 4K-UHD (EMEA and China) Titan 41000 4K-UHD (USA)
Page 4: Additional Documentation
Titan 37000 / 41000 / 43000 / 47000 Introduction Additional Documentation Full information about operating, connecting and setting up the projector can be found in the User Guides. Please use the QR code (also located on the projector) to access the latest Titan projector user guides and other documentation via the Digital Projection website.
Page 5: Table Of Contents
Contents Titan 37000 / 41000 / 43000 / 47000 Contents Introduction Symbols used in this document Additional Documentation Legal notice Third Party Credits Contents What's in the box? Electrical and Physical Specifications General Precautions Laser Safety Precautions Laser Risk Group 3 Precautions Laser Parameters Compliance with International Standards RF Interference...
Page 6 Titan 37000 / 41000 / 43000 / 47000 Contents Pin and cup stacking Using a mounting rail Using the eye bolts Point-to point connections Threaded suspension cables Signal connections Control connections AC Power Precautions Connecting the power supply Basic Operating Instructions Switching the projector on Switching the projector off Interlock reset...
Page 7: What's In The Box
What's in the box? Titan 37000 / 41000 / 43000 / 47000 What's in the box? Batteries Remote Control (2xAAA) Important Projector Information Book Power Cable, USA only Power Cable, UK / RoW HDMI Cable Remote Control Cable A single power cable is supplied with the projector. The cable appropriate for the destination territory is supplied.
Page 8: Electrical And Physical Specifications
Titan 37000 / 41000 / 43000 / 47000 Electrical and Physical Specifications Electrical and Physical Specifications Titan 37000 4K-UHD Titan41000 4K-UHD Mains Voltage 110-240 VAC 50/60Hz Operating Temperature 0°C to 40°C (32 F to 104 F) Storage Temperature -20°C to 60°C (-4 F to 140 F) Operating Humidity 10% to 90% non-condensing Storage Humidity...
Page 9 Electrical and Physical Specifications Titan 37000 / 41000 / 43000 / 47000 Titan 43000 WU Titan 47000 WU Mains Voltage 110-240 VAC 50/60Hz Operating Temperature 0°C to 40°C (32 F to 104 F) Storage Temperature -20°C to 60°C (-4 F to 140 F) Operating Humidity 10% to 90% non-condensing Storage Humidity...
Page 10: General Precautions
Titan 37000 / 41000 / 43000 / 47000 General Precautions General Precautions Warning! Death or Serious Injury could occur if the following precautions are ignored Eye Hazard! Do not look directly into the lens when the light source is on. The high brightness can cause permanent eye damage Fire Hazard! Keep any combustible material away from hot surfaces and the projected beam.
Page 11 General Precautions Titan 37000 / 41000 / 43000 / 47000 Ensure that the power outlet includes a Ground connection, as this equipment MUST be earthed. Take care to prevent small objects such as paper or wire from falling into the projector. If this does happen, switch off immediately, and have the objects removed by authorized service personnel.
Page 12: Laser Safety Precautions
Titan 37000 / 41000 / 43000 / 47000 Laser Safety Precautions Laser Safety Precautions Warning! Death or Serious Injury could occur if the following precautions are ignored Permanent/Temporary Blindness Hazard Do not look directly into the lens when the light source is on. The high brightness can cause permanent eye damage.
Page 13: Laser Parameters
Laser Safety Precautions Titan 37000 / 41000 / 43000 / 47000 Laser Parameters Wavelength (Red) 635-647nm Wavelength (Blue) 459-471nm Wavelength (Green) 519-531nm Mode of operation Pulsed, due to frame rate Total internal power 1356 W Rev A November 2023 Important Information page 13 Digital Projection Ltd.
Page 14: Compliance With International Standards
Titan 37000 / 41000 / 43000 / 47000 Compliance with International Standards Compliance with International Standards RF Interference The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by Digital Projection in this manual. Failure to comply with this government regulation could void your right to operate this equipment.
Page 15: Product Labels
Product Labels Titan 37000 / 41000 / 43000 / 47000 Product Labels Projector Titan 37000 4K-UHD Manufacturers Label (EMEA and China) Rev A November 2023 Important Information page 15 Digital Projection Ltd.
Page 16 Titan 37000 / 41000 / 43000 / 47000 Product Labels Titan 37000 4K-UHD Manufacturers Label (USA) Titan 37000 4K-UHD Manufacturers Label (USA TAA) Rev A November 2023 Important Information page 16 Digital Projection Ltd.
Page 17 Product Labels Titan 37000 / 41000 / 43000 / 47000 Titan 41000 4K-UHD Manufacturers Label (EMEA and China) Titan 41000 4K-UHD Manufacturers Label (USA) Rev A November 2023 Important Information page 17 Digital Projection Ltd.
Page 18 Titan 37000 / 41000 / 43000 / 47000 Product Labels Titan 41000 4K-UHD Manufacturers Label (USA TAA) Titan 43000 WU Manufacturers Label (EMEA and China) Rev A November 2023 Important Information page 18 Digital Projection Ltd.
Page 19 Product Labels Titan 37000 / 41000 / 43000 / 47000 Titan 43000 WU Manufacturers Label (USA) Titan 43000 WU Manufacturers Label (USA TAA) Rev A November 2023 Important Information page 19 Digital Projection Ltd.
Page 20 Titan 37000 / 41000 / 43000 / 47000 Product Labels Titan 47000 WU Manufacturers Label (EMEA and China) Titan 47000 WU Manufacturers Label (USA) Rev A November 2023 Important Information page 20 Digital Projection Ltd.
Page 21 Product Labels Titan 37000 / 41000 / 43000 / 47000 Titan 47000 WU Manufacturers Label (USA TAA) レーザ開口レーザ開口レーザ開口レーザ開口 LASER APERTURE LASER APERTURE LASER APERTURE LASER APERTURE 레이저...
Page 22 Titan 37000 / 41000 / 43000 / 47000 Product Labels Note : Input voltage limited 200-240V 注意 : 输入电压仅限 200-230V : 輸入電壓僅限 200-240V 注意 Mains Information Label Laser Hazard Warning Lens Obstruction Hazard Label Please refer to manual for more detail information.
Page 23: Label Locations
Product Labels Titan 37000 / 41000 / 43000 / 47000 Follow the arrow direction to remove the four feet of the upper machine before stacking. 堆疊機台前請先按箭頭指示方向取下上面機台的四個腳座堆叠机台前请先按箭头指示方向取下上面机台的四个脚座 3262903300 Stacking Guidance Label Label Locations 1. Location of the Laser Hazard Warning Label on the top of the projector.
Page 24 Titan 37000 / 41000 / 43000 / 47000 Product Labels 4. Location of the Manufacturer’s ID Label with Explanatory, SYNC HDMI DisplayPort 3D SYNC IR Certification Statement and HDBaseT WIRED Ethernet / Art-Net REMOTE TRIGGER RS232 TEMP. LIGHT STATUS Risk Statement on the right Model / Modèle 型号/型號...
Page 25: Location Of Laser Aperture
Location of Laser Aperture Titan 37000 / 41000 / 43000 / 47000 Location of Laser Aperture 1. The laser aperture is located as indicated below. Do not look directly at the light coming from the lens. Rev A November 2023 Important Information page 25 Digital Projection Ltd.
Page 26: Interlock Switches
Titan 37000 / 41000 / 43000 / 47000 Interlock Switches Interlock Switches Interlock switches are installed inside the projector. These will power-off the system when activated. 1. Will be activated when the projection lens is removed or misplaced. 2. Will be activated when the top cover is removed.
Page 27: Installation Precautions
Installation Precautions Titan 37000 / 41000 / 43000 / 47000 Installation Precautions The projector must be installed only by suitably qualified personnel, in accordance with local building codes. The projector is heavy. Use safe handling techniques when lifting the projector. Do not drop or knock the projector.
Page 28 Titan 37000 / 41000 / 43000 / 47000 Installation Precautions When using projectors in environments with third party high power laser systems avoid direct laser beams pointing towards the projection lens. This may cause incident light to converge into the optical engine and cause damage to the DLP™...
Page 29 Installation Precautions Titan 37000 / 41000 / 43000 / 47000 The following positions are to be avoided as they can reduce motor life: Lens facing down Inputs and outputs facing up Allow at least 50cm (19.7in) of space between the ventilation outlets and any wall, and 30cm (11.8in) on all other sides.
Page 30 Titan 37000 / 41000 / 43000 / 47000 Installation Precautions Make sure the lens cap is removed from the lens before operating the projector. Light energy levels have been known to cause damage to both the lens and projector optics. This damage is not covered by our warranty. Make sure the lens cap is removed from the rear of the lens before it is inserted into the projector.
Page 31: Risk Group 3 Laser Hazard Installation Precautions
Risk Group 3 Laser Hazard Installation Precautions Titan 37000 / 41000 / 43000 / 47000 Risk Group 3 Laser Hazard Installation Precautions Do not attempt to access the internal hardware of the projector. Do not a attempt to modify or remove the laser module. Do not operate the projector without its protective covers.
Page 32: Light Hazard Warning
Titan 37000 / 41000 / 43000 / 47000 Risk Group 3 Laser Hazard Installation Precautions Light Hazard Warning No direct exposure to the beam is permitted, RG3 BS EN IEC 62471-5:2015. Light Hazard Distance and Hazard Zone Operators should control access to the beam within the hazard distance or install the projector at sufficient height to prevent exposures of spectators’...
Page 33 Risk Group 3 Laser Hazard Installation Precautions Titan 37000 / 41000 / 43000 / 47000 The hazard distance for this projector is related to the fitted lens: Hazard Distance Titan 37000 4K-UHD Titan 43000 WU Lens Titan 41000 4K-UHD Titan 47000 WU 0.38 : 1 0.65 - 0.85: 1 0.67 : 1...
Page 34: Restriction Zone
Titan 37000 / 41000 / 43000 / 47000 Risk Group 3 Laser Hazard Installation Precautions Restriction Zone A restriction zone should be in place around the hazard zone to prevent any person from entering the hazard zone with any part of their body: Horizontal clearance .
Page 35: Fitting A Lens
Fitting a lens Titan 37000 / 41000 / 43000 / 47000 Fitting a lens The projector must be fully turned off prior to attempting a lens change. When changing the lens, avoid using excessive force as this may damage the equipment. Avoid touching the surface of the lens as this may result in image impairment.
Page 36: Inserting A New Lens
Titan 37000 / 41000 / 43000 / 47000 Fitting a lens Inserting a new lens 1. Remove the lens aperture cap or lens from the projector. See Removing the lens on the facing page for guidance on removing a lens. 2.
Page 37: Removing The Lens
Fitting a lens Titan 37000 / 41000 / 43000 / 47000 Removing the lens 1. Turn the release lever up to the mid-position , then pull the lens out as far as it will go. 2. Turn the release lever clockwise until it is pointing up, then pull the lens out completely.
Page 38: Positioning The Screen And Projector
Titan 37000 / 41000 / 43000 / 47000 Positioning the screen and projector Positioning the screen and projector 1. Install the screen, ensuring that it is in the best position for viewing by your audience. 2. Mount the projector, ensuring that it is at a suitable distance from the screen for the image to fill the screen.
Page 39: Stacking And Rigging
Stacking and rigging Titan 37000 / 41000 / 43000 / 47000 Stacking and rigging The projectors must be in a vertical position when they are stacked. This will ensure that the stresses are distributed to all four corners of the chassis.
Page 40 Titan 37000 / 41000 / 43000 / 47000 Stacking and rigging 2. Mount the projector on top of the other projector. Ensure that all four cups are placed over the pins on the bottom projector. 3. Push the locking pins into place on each cup and pin.
Page 41: Using A Mounting Rail
Stacking and rigging Titan 37000 / 41000 / 43000 / 47000 Using a mounting rail A mounting rail may also be fitted using the pin and cup system. This is an optional accessory to the projector. It can be used with commercially available rigging truss clamps to attach the projector to a staging or lighting truss.
Page 42: Using The Eye Bolts
Titan 37000 / 41000 / 43000 / 47000 Stacking and rigging Using the eye bolts Four eye-bolts are fitted to the top of the projector to enable the flying of the projector using steel wire or chains. This system should only be used to fly a single projector. Do not stack projectors and fly them together.
Page 43 Stacking and rigging Titan 37000 / 41000 / 43000 / 47000 Example of an incorrect configuration Rev A November 2023 Important Information page 43 Digital Projection Ltd.
Page 44: Threaded Suspension Cables
Titan 37000 / 41000 / 43000 / 47000 Stacking and rigging Threaded suspension cables Refer to the following 45° 45° guidelines when 45° 45° threading the suspension cable through the eye-bolts and connecting both ends to suspension points. The suspension cable can exit the eye-bolts at an angle of up to 45°...
Page 45 Stacking and rigging Titan 37000 / 41000 / 43000 / 47000 Example of an incorrect configuration Rev A November 2023 Important Information page 45 Digital Projection Ltd.
Page 46: Signal Connections
Titan 37000 / 41000 / 43000 / 47000 Signal connections Signal connections SYNC 3D SYNC IR HDMI DisplayPort HDBaseT WIRED Ethernet / Art-Net REMOTE TRIGGER RS232 1. Sync Out 3D sync output signal. This enables synchronized 3D with multiple projectors. Use a 3-pin DIN connector to connect this to another projector.
Page 47: Control Connections
Control connections Titan 37000 / 41000 / 43000 / 47000 Control connections SYNC HDMI DisplayPort 3D SYNC IR HDBaseT WIRED Ethernet / Art-Net REMOTE TRIGGER RS232 1. Trigger The trigger output can be used to control an electrically operated screen. The screen will be automatically deployed when the projector starts up and retracted when the projector shuts down.
Page 48: Ac Power Precautions
Titan 37000 / 41000 / 43000 / 47000 AC Power Precautions AC Power Precautions Warning! Death or Serious Injury could occur if the following precautions are ignored Shock Hazard! Only use the AC power cord provided or recommended by the manufacturer Fire &...
Page 49: Connecting The Power Supply
AC Power Precautions Titan 37000 / 41000 / 43000 / 47000 Connecting the power supply Rest of the World: 1. Firmly push the mains connector into the AC socket When the cable is plugged in and the power supply is on, the projector is OFF until the power button is switched to ON.
Page 50: Basic Operating Instructions
Titan 37000 / 41000 / 43000 / 47000 Basic Operating Instructions Basic Operating Instructions See Control panel on page 54 for guidance on using the control panel to control the projector. See Remote control on page 57 for guidance on using the remote control to control the projector.
Page 51: Selecting An Input Signal
Basic Operating Instructions Titan 37000 / 41000 / 43000 / 47000 Selecting an input signal 1. Connect one or more image sources to the projector. 2. Select the input you want to display: Press one of the input buttons on the remote control or control panel. Alternatively, open the On-screen display (OSD) by pressing MENU.
Page 52: Adjusting The Lens
Titan 37000 / 41000 / 43000 / 47000 Basic Operating Instructions Adjusting the lens You can use the following options to adjust the lens: Control panel. See Control panel on page 54 Remote control. See Remote control on page 57 On screen display (OSD). OSD Lens menu The Lens menu provides access to the Lens Control setting and the Lens Center command.
Page 53: Operating The Projector
Operating the projector Titan 37000 / 41000 / 43000 / 47000 Operating the projector The projector has the following controls: Remote control Control panel Do not make changes to the networking configuration unless you understand what you are doing, or have taken advice from your Network Manager. If you make a mistake, it is possible that you will lose contact with the projector.
Page 54: Control Panel
Titan 37000 / 41000 / 43000 / 47000 Operating the projector Control panel 1. POWER Switches the projector on and off (STANDBY). 2. SYNC Press to resynchronise the active input. 3. Arrow buttons & ENTER Press Focus , Lens Shift or Zoom and use the Up and Down arrow buttons to adjust the lens focus, shift or zoom.
Page 55 Operating the projector Titan 37000 / 41000 / 43000 / 47000 10. EXIT Exits the current OSD page and enters the level above. Exits the OSD when at the top level OSD page. 11. INFO Press and hold for 5 seconds to activate or deactivate the LCM.
Page 56: Projector Indicators
Titan 37000 / 41000 / 43000 / 47000 Operating the projector Projector indicators 1. LCM Displays information about the current state of the projector. 2. TEMP Off = no error Flashing red = temperature error 3. POWER Off = the projector is switched Flashing green = the projector is warming up Flashing amber = the projector...
Page 57: Remote Control
Operating the projector Titan 37000 / 41000 / 43000 / 47000 Remote control 1. Power ON / OFF Turns power on and off. 2. Pic Mute OPEN / CLOSE Press CLOSE to hide the Pic Mute projected image. When off, OPEN CLOSE the laser remains on and a...
Page 58 Titan 37000 / 41000 / 43000 / 47000 Operating the projector 9. FREEZE Freeze the current frame. 10. LENS adjustment FOCUS IN / OUT: adjust Pic Mute OPEN CLOSE focus. SHIFT: press and hold this button, then use the MENU DEFAULT Navigation arrow buttons to move the lens.
Page 59 Operating the projector Titan 37000 / 41000 / 43000 / 47000 17. DISPLAYPORT 1 / R / numeric input 4 Select DisplayPort 1 input. 18. HD-T / G / numeric input 5 Pic Mute Select the HDBaseT input. OPEN CLOSE 19.
Page 60 Titan 37000 / 41000 / 43000 / 47000 Operating the projector 21. VGA / 3D / numeric input 7 There is no VGA input on this projector. Use with ALT to toggle the 3D Pic Mute Format setting between Off OPEN CLOSE and Auto.
Page 61 Titan 37000 / 41000 / 43000 / 47000 This page is intentionally left blank Rev A November 2023 Important Information page 61 Digital Projection Ltd.
Page 62: Contact Information
Titan 37000 / 41000 / 43000 / 47000 Contact Information Contact Information China North America Europe Digital Projection China Digital Projection Inc. Digital Projection Limited 中国北京市朝阳区芍药居 55 Chastain Road, Suite 115, Greenside Way, Middleton, 北...
