Summary of Contents for TEINNOVA TEGRAS visiomax

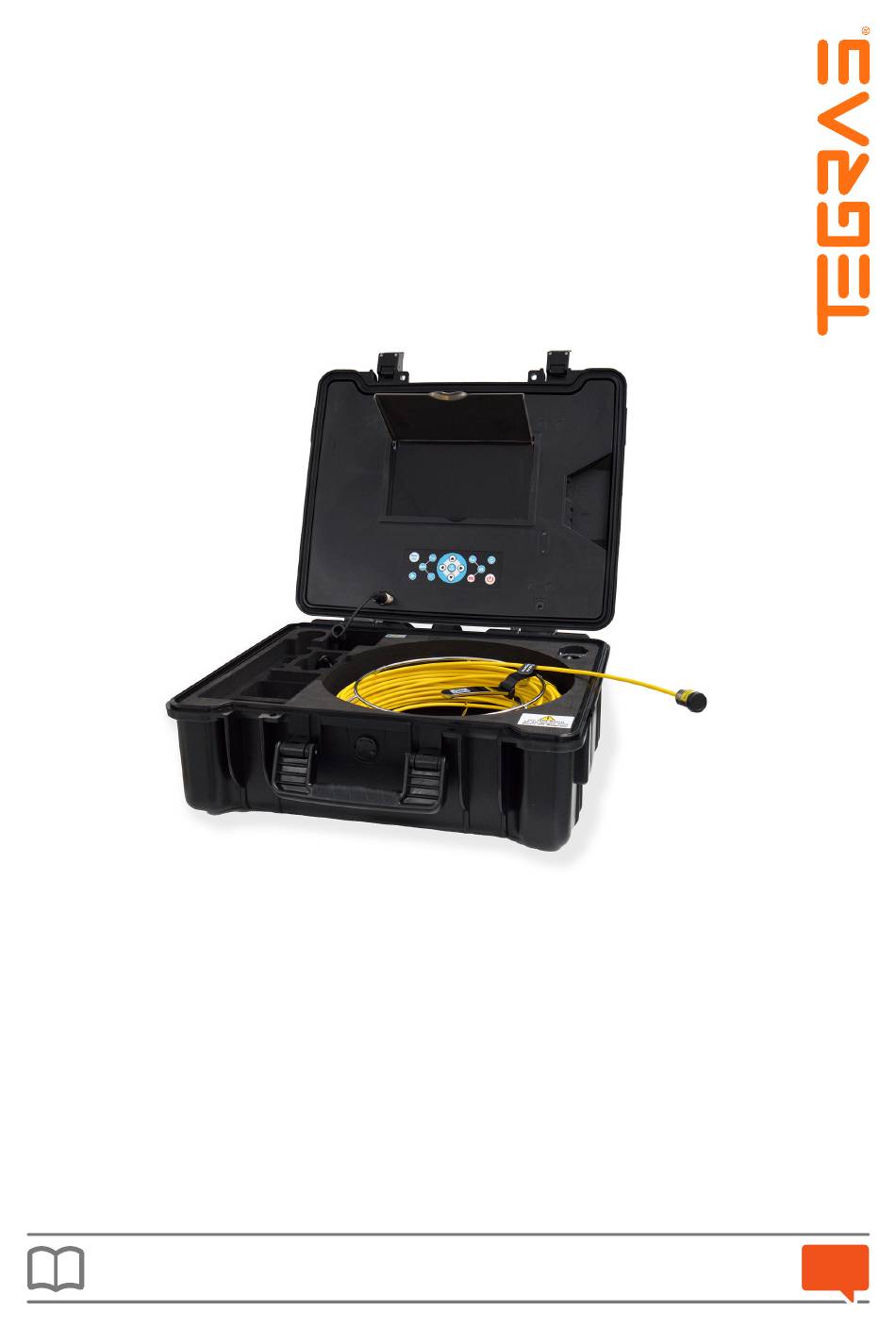

- Page 1 visiomax Duct inspection system user manual original manual translation...
- Page 2 Dear Client: Thank you for placing your trust in a quality product from TEINNOVA. This product has been made using modern manufacturing techniques and thorough quality assurance measures. We strive to do everything we can to make sure you are satisfied with this product and can work with it without problems.
- Page 3 contents symbols used 5-26 safety warnings 6-26 know your equipment 7-26 operating instructions 11-26 transport 20-26 maintenance and care 21-26 waste management 22-26 troubleshooting guide 23-26 visiomax Duct inspection system 3-26...
- Page 4 contents technical specifications 24-26 guarantee conditions 25-26 declaration of conformity “CE” 26-26 visiomax Duct inspection system 4-26...
- Page 5 symbols used All the symbols used in this manual, as well as those on the equipment, are explained in this section. It is important to read the text associated with these symbols carefully, since it is about personal safety and equipment safety. DANGER! This symbol warns you of a potentially dangerous situation which could result in serious injury or even death if the instructions given are not followed...
- Page 6 Make sure your VISIOMAX is placed on a flat and stable surface. Everybody who uses the VISIOMAX equipment must be properly trained. Fasten the VISIOMAX properly during transport. In the event of a fault, please contact TEINNOVA's Technical Assistance Service on +34 941 44 50 56. 941445056...
- Page 7 know your equipment Description and content Video-inspection system for conduits and pipes, with video recorded onto USB storage and SD cards. It has a 30 m semi-rigid flexible shaft reel. Compact ABS watertight case, waterproof, shock and scratch resistant. Control panel with 10'' TFT LCD colour monitor and anti-glare sunshade. Built-in digital video recorder, recording on external USB memory and SD card.
- Page 8 know your equipment Head Lens Stainless steel housing Spring Connector (to cable) Reel Rotation mechanism Handle Connector (to camera) Reel Cable Battery Charge indicator ON/OFF switch 12V charger connection Fuse USB charging output (DC 5V) 7.4V output visiomax Duct inspection system 8-26...
- Page 9 know your equipment Remote control Menu: Main menu Play: Playback mode Pt/Wt: Rewind Exit: Exit Up: Select up OK/Home: OK/Main menu Left: Select left Right: Select right Down: Select down Mirror: Mirror and rotate image LED: Adjust LED brightness Rec: Start/stop recording Photo: Take a still photograph Monitor Counter reset push button...
- Page 10 know your equipment Case Cable reel Cable connection visiomax Duct inspection system 10-26...
- Page 11 operating instructions System configuration Only connect the camera to the monitor when both are switched off, otherwise they may be damaged. Connecting the head Place the cable on the hook of the spool, hold the cable connector in one hand while with the other you thread the head into it until it is firmly connected.
- Page 12 operating instructions Ø46 and Ø80 centring device installation The Ø46 and Ø80 centring devices are designed to help the camera stay in the correct position inside the duct. Your VISIOMAX equipment has 2 types of centring device, depending on your application of the unit: -Installing Ø46 centring device With the centring device split into its two parts, place it on top of the stainless steel head as shown in the image.
- Page 13 operating instructions Connect SD card visiomax Duct inspection system 14-26...
- Page 14 operating instructions Operating guide DVR Display Meter counter LED intensity Recording indicator Time indicator Date indicator Sound recording indicator SD card Battery level Page number Live video - Press to turn on the DVR and enter the live viewing mode, then press to go into video playback mode.
- Page 15 operating instructions Play videos - Press to access the menu. You can search for, preview and view video files and photos. - Press to search for and select the desired file. - Press to confirm your selection and file preview. - Press to preview the previous file.
- Page 16 operating instructions The following options appear in the configuration menu: 1- Format: Format the SD card. 2- Language: English, German, French, Spanish, Italian, Chinese, Japanese, Russian and Portuguese. 3- Light frequency. 4- Volume. 5- Date and time. 6- Time zone. 7- Reset factory settings.
- Page 17 operating instructions In the workplace 1. Place the spool correctly to avoid any unnecessary time and effort unwinding and winding up the cable. You must place your hands as close as possible to the reel when rewinding the cable and you must do it in short stretches and without forcing it so that the cable is not damaged and there are no health risks.
- Page 18 transport The machine has been designed to be transportable in a small van. During transport the machine must be firmly secured to prevent any damage. Also, it must be placed in its normal (vertical) working position. It is not advisable to place the machine on a pallet or similar. The machine must be on a completely flat and horizontal surface.
- Page 19 Keep the connections clean to avoid blockages that could cause serious damage to the equipments main components. Spare Parts: TEINNOVA has spare parts available for all parts of the equipment. If you need any part or consumable, please contact TEINNOVA Customer Service on +34 941 44 50 56. visiomax Duct inspection system 21-26...
- Page 20 waste management The materials used in the packaging are recyclable. Do not dispose of the packaging in household waste, but hand it in at official collection points for recycling. Do not throw electrical appliances in the trash! We recommend that electrical tools and accessories are subjected to an environmentally friendly recycling process.
- Page 21 troubleshooting guide PROBLEM CAUSE SOLUTION The battery is not showing the The battery is not charged Charge the battery level of charge There is no picture Bad connection or no connection Check that all the connections are correct Dirty camera connector Clean the camera connector and reconnect it Incorrect SD card...
- Page 22 technical specifications VISIOMAX Specifications Camera: 1/3” Sony 22 mm CCD with Sapphire lens Camera angle of vision: 130 degrees Viewing range: 1,000 mm Colour image quality: 420 TV lines Camera cable length: 30 metres Monitor: 10”colour TFT-LCD Image resolution: 1920*1080 AHD Sealing (Camera): Submersible to 20 m in water Illumination:...
- Page 23 1). TEINNOVA reserves the right to make changes to the equipment without prior notice. visiomax Duct inspection system...
- Page 24 Teléfono: +34 941 44 50 56 Fax: +34 941 25 24 71 Web: www.teinnova.net TECAI INNOVA, SL, under its sole responsibility, certifies that the machine model described above complies with all the essential requirements of the following directives: Machinery directive 2006/42/CE Directive 2014/30/EU on electromagnetic compatibility, as amended.
