Collomix GmbH
D-85080 Gaimersheim
Operating instructions
(Translation of the original operating instructions en - English, Rev. 1.1 - 01/2024)

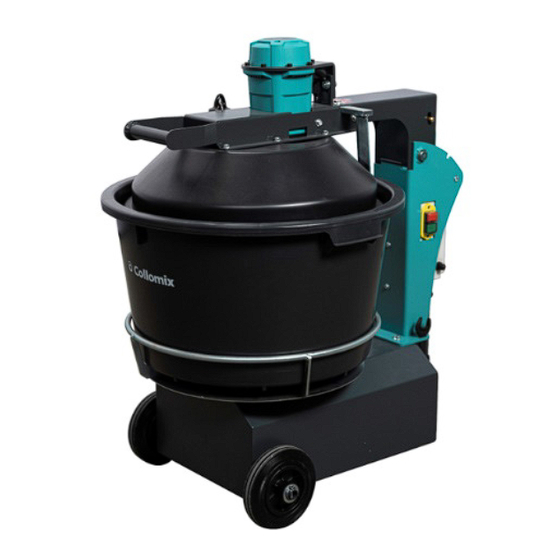

Rotation Mixer
AOX 650
Art.nr. 37090 (230V EU)
AOX 650.T
Art.nr. 37091 (230V EU)
Store the operating instructions readily available at the machine.
Art.no. 37090 / 37091
1.1 - 01/2024
R
M
OTATION
IXER
AOX 650 / AOX 650.T
1
Advertisement
Table of Contents
Related Manuals for Collomix AOX 650
Summary of Contents for Collomix AOX 650
- Page 1 Collomix GmbH OTATION IXER D-85080 Gaimersheim AOX 650 / AOX 650.T Operating instructions (Translation of the original operating instructions en - English, Rev. 1.1 - 01/2024) Rotation Mixer AOX 650 Art.nr. 37090 (230V EU) AOX 650.T Art.nr. 37091 (230V EU) Store the operating instructions readily available at the machine.
-
Page 2: Table Of Contents
Troubleshooting ............................13 Care and maintenance ..........................14 Repair ................................ 15 Disposal..............................15 Warranty ..............................15 First steps with your AOX 650 Unpacking – mixing – cleaning – tips & tricks in the video: 1.1 - 01/2024 Art.no. 37090 / 37091... -
Page 3: Overview Of The Machine Elements
Bucket holding fixture Mixing tool motor Mixing bucket Belt eyelet Scraper On/Off switch Mixing tool Time selector switch (version AOX 650.T only) Mixing tool holding fixture Mains plug Swivel arm Tool for changing mixing tool Suction nozzles for vacuum Transport handle... -
Page 4: Technical Data
Collomix GmbH OTATION IXER AOX 650 / AOX 650.T D-85080 Gaimersheim Technical data: Directive 2000/14/EG Large Mixing bucket: 65 litre 96.4 dB (A) Usable quantity: max. 50 kg WA,m Rotary plate motor: 0.55 kW / 230 V~ 50 Hz σ... -
Page 5: About This Document
5. Refer to the chapter introductions and passages leading up to instructions for warnings. The copyright for images and texts remains with Collomix GmbH. You must read the operating instructions prior to initial commissioning. Observe the safety information. Keep for future use. -
Page 6: For Your Safety
Do not clean with water or other liquids. For your safety The mixer model AOX 650 / AOX 650.T has been developed, produced and inspected in adherence to the essential safety requirements. However, residual risks nevertheless remain. • For this reason, read the operating instructions prior to operating the machine. -
Page 7: Safety Information
When opening the lid, do not reach into the mixing tool. • Only operate the machine with the mixing vessel installed. • Only use the original Collomix mixing vessel. • Do not reach with your hand or objects into the mixing vessel during ongoing mixing operation. Risk of crushing! •... -
Page 8: Intended Use
Any other use of the machine or any use beyond this scope is considered unintended and thus improper. Safety and its protection can be impacted in this case. Collomix GmbH shall not be liable for any resulting damage. Intended use also includes: •... -
Page 9: Foreseeable Misuse
The drive unit can be equipped with one of the selected mixing tools in the area of the mixing chamber. Attached to the turntable is a holding ring into which a precisely fitting original Collomix bucket is inserted. After the bucket is filled with the selected material, the turntable starts to rotate when the machine is switched on. -
Page 10: Transport Information
Collomix GmbH OTATION IXER AOX 650 / AOX 650.T D-85080 Gaimersheim Transport information DANGER Danger of death due to dangerous electrical voltage • Moisture ingress into the machine can lead to faulty electrical parts and thus to a danger of injuries (electric shock)! ⇒... -
Page 11: Commissioning
Collomix GmbH OTATION IXER D-85080 Gaimersheim AOX 650 / AOX 650.T Commissioning DANGER Danger of death due to dangerous electrical voltage • Parts in a faulty condition that have become live can cause injuries if touched! ⇒ The supply socket must possess an RCD circuit breaker. -
Page 12: Operation
Collomix GmbH OTATION IXER AOX 650 / AOX 650.T D-85080 Gaimersheim Operation DANGER Danger of injury from the moving mixing tool when machine lid opened Danger of injury from damaged or defective machine parts • Moving mixing tool can cause injuries if touched! •... -
Page 13: Troubleshooting
Collomix GmbH OTATION IXER D-85080 Gaimersheim AOX 650 / AOX 650.T Version AOX 650: > When the device is in an open state, fill the mixing bucket with water and the mixing material. > Press the green START button "I"– the mixing bucket will start to turn. -
Page 14: Care And Maintenance
Repairs or functional faults to the electric system must only be carried out by authorised workshops. Only use the original mixing bucket from Collomix, item no. 60403, as a replacement for worn-out mixing buckets. Correct functioning is only guaranteed with this bucket. -
Page 15: Repair
⇒ After completion of a repair, the proper condition of all safety devices and electrical equipment must be checked and documented. Have repairs on the electrical system only performed by expert personnel or Collomix Factory Service. Only use original Collomix accessories and spare parts. - Page 16 Collomix GmbH OTATION IXER AOX 650 / AOX 650.T D-85080 Gaimersheim Manufacturer: Collomix GmbH Daimlerstraße 9 85080 Gaimersheim Germany Telephone: +49 (0)8458 3298-0 Fax: +49 (0)8458 3298-30 info@collomix.de www.collomix.com Made in Germany 1.1 - 01/2024 Art.no. 37090 / 37091...
