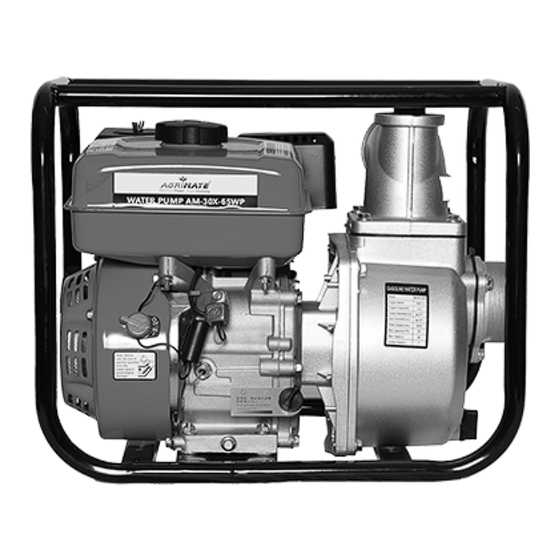

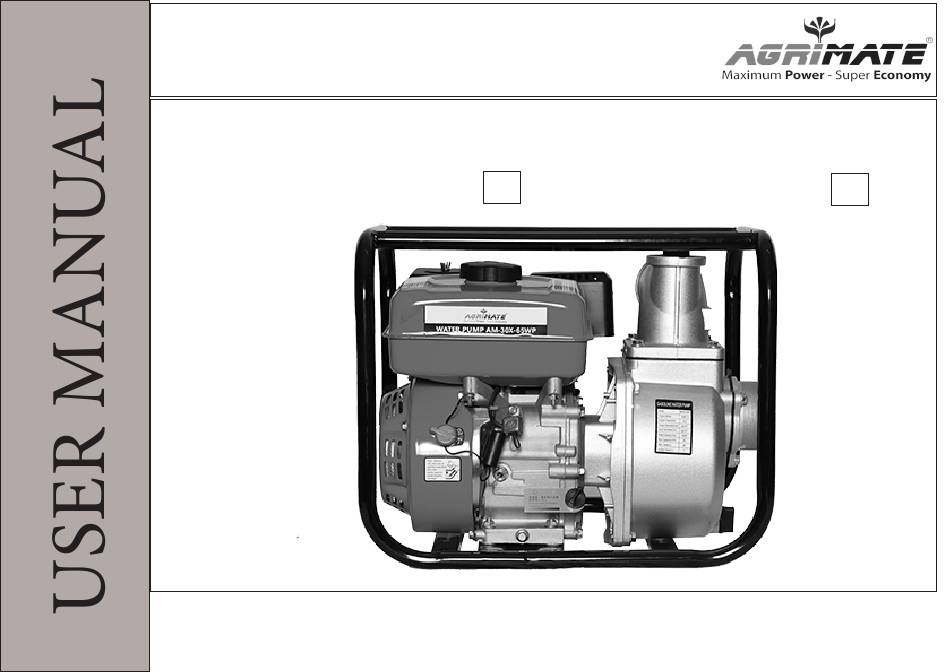

- Page 1 AGRIMATE GASOLINE WATER PUMP AM-WP-20FX AM-WP-30FX DESCLAIMER : DUE TO CONTANT UPGRADATION FEATURES & SPECIFICATIONS ARE SELECT TO CHANGE WITHOUT NOTICE BEFORE OPERATING THIS MACHINE PLEASE READ THIS INSTRUCTIONS MANUAL CAREFULLY...
- Page 2 INTRODUCTION Thank you for choosing the Agrimate Product , You are the proud owner of high technlogy & durable machine. trust that our Franchisee/Dealer installed the product and explained you about the usage & service instructions. Please visit our authorised dealer for your future requirement of our other equipments., genuine spares, accessories &...
-
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS Model AM-WP-20FX AM-WP-30FX Engine 168F-2 168F-2 Engine Type Gasoline Engine Gasoline Engine Power 4.8KW 4.8KW Pump outlet Dia 2” 3” 3600 3600 MAX. DISCHARGE 35Mtr 60mtr MAX. HEAD 30(m3/H) 30(m3/H) SUCTION 7 mtr 7(M) - Page 4 Preparation before use 1. Choose a flat place to install the gasoline engine firmly. 2. Connect the inlet and outlet pipes. 3. Check whether the bottom valve is leaking. 4. Check the oil and fuel level. 5. Check whether the air filter element is clean. 6.
- Page 5 1. Connect the water pipes 1.1 Connect the water inlet pipe: the water inlet pipe must be continuous, non-foldable structure, the length of the water inlet pipe should not be too long, and the length of the self-priming time is proportional to the length of the water inlet pipe. 1.2 Connect the water outlet pipe: use the output water pipe with the same diameter, the small diameter long pipe increases the flow resistance and reduces the output power of the pump.
- Page 6 Operation steps 1. Open the fuel valve. 2. Close the choke door. 3. Turn the engine switch to the ON position. 4. Slowly move the throttle lever to one-third of the way from the bottom end. 5. Gently pull up the starter handle until you feel resistance, then pull up quickly.
- Page 7 Open the fuel valve to Throttle to 1/2 The engine switch is in the Turn the choke to the " the "ON" position "ON" position. CLOSE" position. close the throttle. open the throttle. turn Gently pull on the starter Move the choke to the off the engine cord handle and feel resis- "ON"...
-
Page 8: Maintenance
Maintenance 1. Change the oil When using for the first time, change the oil for the first time after the first month or after 20 hours of use, and then every six months or after 100 hours of use. 2. Maintenance of air filter Clean the filter element with a non-flammable or high flash point solution and dry thoroughly;... - Page 9 PUMP DIAGRAM OF AM20X & AM-30X...
- Page 10 SPARE PART LIST OF AM-20FX WATER PUMP SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-WP-20FX-P01 PUMP BONNET AM-WP-20FX-P10 GASKET AM-WP-20FX-P02 PACKING SEAL AM-WP-20FX-P11 WATER AM-WP-20FX-P03 CERAMIC RING AM-WP-20FX-P12 FLANGE SCREW AM-WP-20FX-P04 RUBBER SEAL AM-WP-20FX-P13 FLANGE SCREW AM-WP-20FX-P05...
- Page 11 SPARE PART LIST OF AM-30FX WATER PUMP SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-WP-30FX-P01 PUMP BONNET AM-WP-30FX-P10 GASKET AM-WP-30FX-P02 PACKING SEAL AM-WP-30FX-P11 WATER AM-WP-30FX-P03 CERAMIC RING AM-WP-30FX-P12 FLANGE SCREW AM-WP-30FX-P04 RUBBER SEAL AM-WP-30FX-P13 FLANGE SCREW AM-WP-30FX-P05 IMPELLER AM-WP-30FX-P14 O-RING...
- Page 12 ENGINE SPARE PARTS DIAGRAM & PART LIST OF AM-20FX & 30FX WATER PUMP CONTROL- A SL NO. PART NO. DESCRIPTION AM-168FE-A01 Bolt Flange AM-168FE-A02 Governor Spring AM-168FE-A03 Bolt Flange AM-168FE-A04 Arm Governor AM-168FE-A05 Nut Flange AM-168FE-A06 Throttle Return Spring AM-168FE-A07 Governor Rod AM-168FE-A08 Control.
- Page 13 ENGINE SPARE PARTS DIAGRAM & PART LIST OF AM-20FX & 30FX WATER PUMP FLYWHEEL-B SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-168FE-B01 Ignition Coil Assy AM-168FE-B07 Special Nut AM-168FE-B02 Flywheel Comp AM-168FE-B08 Flywheel Comp AM-168FE-B03 Flange Bolt AM-168FE-B09 Clamper Cord AM-168FE-B04...
- Page 14 ENGINE SPARE PARTS DIAGRAM & PART LIST OF AM-20FX & 30FX WATER PUMP FAN COVER - C SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-168FE-C01 Cord Stop Switch AM-168FE-C06 Clamper Cord AM-168FE-C02 Flange Bolt AM-168FE-C07 Fan Cover Comp AM-168FE-C03 Fairing AM-168FE-C08...
- Page 15 ENGINE SPARE PARTS DIAGRAM & PART LIST OF AM-20FX & 30FX WATER PUMP CABURATOR-D SL NO PART NO DESCRIPTION AM-168FE-D01 Packing Carburator AM-168FE-D02 Packing Insulator AM-168FE-D03 Packing Carburator AM-168FE-D04 Carburator Assy. AM-168FE-D05 Packing, Air Cleaner AM-168FE-D06 Choke Lever Comp.
- Page 16 ENGINE SPARE PARTS DIAGRAM & PART LIST OF AM-20FX & 30FX WATER PUMP AIR CLEANER-E SL NO PART NO DESCRIPTION AM-168FE-E01 Nut Tool Box Setting AM-168FE-E02 Air CleanerCover AM-168FE-E03 Air Cleaner Grommet Seal AM-168FE-E04 Air Cleaner Principal Part AM-168FE-E05 Aircleaner Seal AM-168FE-E06 Outer Filter AM-168FE-E07...
- Page 17 ENGINE SPARE PARTS DIAGRAM & PART LIST OF AM-20FX & 30FX WATER PUMP STARTER MOTOR SYSTEM ASSY-F SL NO PART NO DESCRIPTION AM-168FE-F01 Motor Starter AM-168FE-F02 Contact Assy AM-168FE-F03 Bolt Assy AM-168FE-F04...
- Page 18 ENGINE SPARE PARTS DIAGRAM & PART LIST OF AM-20FX & 30FX WATER PUMP STARTER SUBASSEMBLY-G SL NO PART NO DESCRIPTION AM-168FE-G01 Starter Assy AM-168FE-G02 Screw Setting AM-168FE-G03 Ratchet Guide AM-168FE-G04 Spring Friction AM-168FE-G05 Ratchet Starter AM-168FE-G06 Spring Return AM-168FE-G07 Recoil Starter Reel AM-168FE-G08 Recoil Starter Spring AM-168FE-G09...
- Page 19 ENGINE SPARE PARTS DIAGRAM & PART LIST OF AM-20FX & 30FX WATER PUMP CYLINDER HEAD-H...
- Page 20 ENGINE SPARE PARTS DIAGRAM & PART LIST OF AM-20FX & 30FX WATER PUMP SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-168FE-H01 Flange Bolt AM-168FE-H07 Exhaust Stud Bolt AM-168FE-H02 Head Cover Comp AM-168FE-H08 Muffler Gasket AM-168FE-H03 Packing Head Cover AM-168FE-H09 Intake Stud Bolt AM-168FE-H04...
- Page 21 ENGINE SPARE PARTS DIAGRAM & PART LIST OF AM-20FX & 30FX WATER PUMP CRANKSHAFT PISTON-J SL NO PART NO DESCRIPTION AM-168FE-J01 Crankshaft Comp AM-168FE-J02 Ring Set Piston A AM-168FE-J03 Ring Set Piston B AM-168FE-J04 Oil Ring Piston A AM-168FE-J05 Oil Ring Piston B AM-168FE-J06 Piston Pin Clip AM-168FE-J07...
- Page 22 ENGINE SPARE PARTS DIAGRAM & PART LIST OF AM-20FX & 30FX WATER PUMP CRANK CASE COVER-K SL NO PART NO DESCRIPTION AM-168FE-K01 Flange Bolt AM-168FE-K02 Oil Stick AM-168FE-K03 Packing, Oil Filler Cap AM-168FE-K04 Crank Case Cover AM-168FE-K05 Oil Seal AM-168FE-K06 Bearing, Radial Ball AM-168FE-K07 Pin Dowel...
- Page 23 ENGINE SPARE PARTS DIAGRAM & PART LIST OF AM-20FX & 30FX WATER PUMP CAMSHAFT ARM VALVE -L SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-168FE-L01 Valve Locking Nut AM-168FE-L08 Retainer, In Valve Spring AM-168FE-L02 Valve Adjusting Nut AM-168FE-L09 Spring, Valve AM-168FE-L03...
- Page 24 ENGINE SPARE PARTS DIAGRAM & PART LIST OF AM-20FX & 30FX WATER PUMP CYLINDER BARREL-M...
- Page 25 ENGINE SPARE PARTS DIAGRAM & PART LIST OF AM-20FX & 30FX WATER PUMP SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-168FE-M01 Governor Slider AM-168FE-M09 Bolt Flange AM-168FE-M02 Washer Thrust AM-168FE-M10 Oil Sensor AM-168FE-M03 Governor Holder Clip AM-168FE-M11 Bearing Radial Ball AM-168FE-M04 Weight Governor...
- Page 26 ENGINE SPARE PARTS DIAGRAM & PART LIST OF AM-20FX & 30FX WATER PUMP MUFFLER -N SL NO PART NO DESCRIPTION AM-168FE-N01 Muffler Assy AM-168FE-N02 Protector Muffler AM-168FE-N03 Tapping Screw AM-168FE-N04 Muffler Comp AM-168FE-N05 Nut Exhaust Pipe...
- Page 27 ENGINE SPARE PARTS DIAGRAM & PART LIST OF AM-20FX & 30FX WATER PUMP FUEL TANK-P SL NO PART NO DESCRIPTION AM-168FE-P01 Fuel Filler Cap Comp AM-168FE-P02 Fuel Filter AM-168FE-P03 Fuel Tank Comp AM-168FE-P04 Flange Bolt AM-168FE-P05 O-Ring AM-168FE-P06 Joint Fuel Tank AM-168FE-P07 Fuel Tube AM-168FE-P08...
-
Page 28: Warranty Card
WARRANTY CARD CUSTOMER COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE DATE OF DELIVERY PURCHASERS NAME & ADDRESS CUSTOMER SIGN INVOICE/DN NO. PRODUCT SERIAL NO. PRODUCT NAME I/Will accept the terms and conditions of warranty as in the warranty card DEALERS COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE... - Page 29 1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty Card duly filled and stamped by authorized dealer together with the original purchase document.
- Page 30 1st service coupon ISO 9001 : 2015 CERTIFIED COMPANY FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER SERIAL NUMBER MODEL SERVICE NO. PURCHASE BILL NO. DATE PDI DATE OPERATIONS DEALERS OFFICE SEAL 1. Check and test the fuel mixture 2. check and clean the air filter 3.Check , clean and adjust the spark plug 4.
- Page 31 DONTS Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. 2. It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines 3.
- Page 32 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Missed Call : 7393 938 938 Email: ask@agrimart.in...
