Summary of Contents for Sharper Image 209472

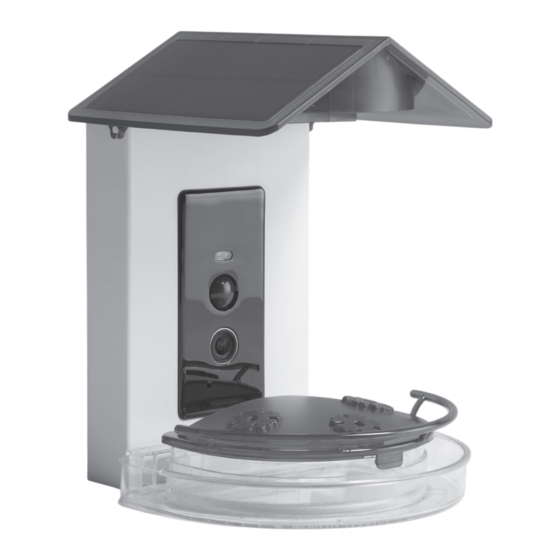

- Page 1 VIDEO CAMERA HUMMINGBIRD FEEDER Item No. 209472 User Guide Thank you for purchasing the Video Camera Hummingbird Feeder. Please take a moment to read this guide and store it for future reference. - 1 -...
- Page 2 INTRODUCTION The Video Camera Hummingbird Feeder detects, identifies, and records various hummingbird species, sending images and video to your smartphone when they land. CONTENTS OF PACKAGE BRACKET NECTAR PLATE SEED PLATE HUMMINGBIRD FEEDER GREEN SCREW SCREWS FOR SCREWS FOR CHARGING SPACERS BRACKET X4 PERCH X2...
-
Page 3: Description Of Parts
DESCRIPTION OF PARTS SPECIFICATIONS Item No. 209472 Charging USB and Solar Energy (USB charging cable included) Battery 52000 mAh Rechargeable Lithium-Ion Battery Camera Resolution 2.0 megapixels Video Resolution 1080P HD Live Stream Video Operating Temperature -5°F to 120°F (-20.5°C to 48.5°C) Connectivity Wi-Fi connection @ 2.4GHz... -
Page 4: Notes Before Installation
SOLAR PANEL SPECIFICATIONS IPCE Working Voltage (Vmp) 5V±5% Working Current (Imp) 400mA±5% Open Circuit Voltage (VOC) 7.2V±5% Short-Circuit Current (ISC) 480mA±5% LED INDICATOR LIGHT STATUS Green light on continuously Camera on Red light fast blinking Pairing mode Green light fast blinking Network connecting Green light on continuously Network connected... - Page 5 INSTALLATION BRACKET INSTALLATION METHOD 1 1. Use the provided template to mark the holes onto whatever surface you have chosen for installation. Use a drill to drill 4 holes as indicated, then insert the provided green plastic wall anchor screws into the holes. 2.
-
Page 6: Bracket Installation
BRACKET INSTALLATION METHOD 2 1. Use the provided bracket and attach it to a suitable sized pole. Snap the feeder into the bracket from the top and then attach it with the transparent nut screw. TOP COVER INSTALLATION 1. Align the top cover with the groove of the feeder and press down, twist upwards and snap the top cover into position. -
Page 7: How To Charge
FOOD PLATE INSTALLATION ( 2 OPTIONS ) OPTION 1: Install the nectar plate onto the feeder from the top and fix. It can be filled with a table sugar and water mixture or hummingbird nectar. The plate can easily be removed for washing. OPTION 2: Install the seed plate onto the feeder from the top and fix. - Page 8 DOWNLOADING AND CONNECTING TO THE APP To download the required app, scan the QR code below or search for the “Bird Lover” app in the iTunes app Store or Google Play. Once downloaded, the app will prompt you to register your device. Enter your phone number or email address and select the country you live in.
- Page 9 2. Open the app and connect according to the following steps. 3. Find and select your 2.4GHz Wi-Fi network and enter your home’s Wi-Fi password. - 9 -...
- Page 10 4. Scan the QR code displayed on your mobile device with the hummingbird feeder’s camera. Once you hear the connection prompt select “I Heard Prompt”. 5. Wait for your device to be added. Once the feeder (called Smart hummingbird Feeder in the app) has been added, click “Done”...
-
Page 11: App Interface
APP INTERFACE - 11 -... -
Page 12: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS 1. Q: Does this device need Wi-Fi to operate? A: Yes, the Video Camera Hummingbird Feeder requires a Wi-Fi- connection to operate. It uses a 2.4GHz Wi-Fi connection to stream videos to your mobile device. 2. Q: Does the device have local storage? A: Yes, it will have local storage if you insert the included memory card or purchase iCloud service in the app. -
Page 13: Warranty And Customer Service
Customer Service department at 1 (877) 210-3449. Customer Service agents are available Monday through Friday, 9:00 a.m. to 6:00 p.m. ET. The SHARPER IMAGE® name and logo are registered trademarks. ©Sharper Image. All Rights Reserved.
