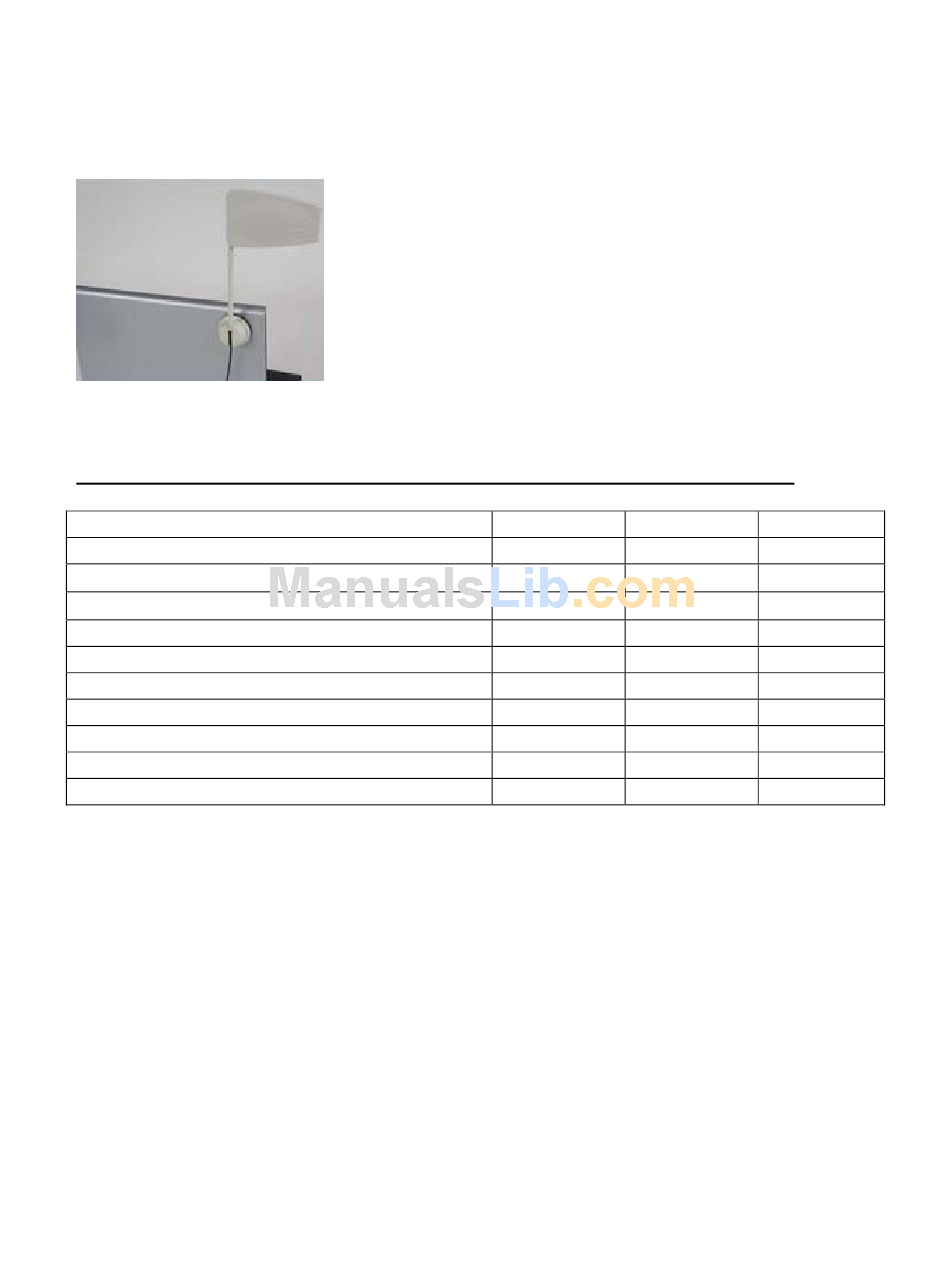

Technical Specifications for the AirMagnet Directional Antenna (Flag Yagi)
Frequency Range
• 2.4 GHz Band
• 5 GHz Band
VSWR
Impedance
Gain
Polarization
Front-to-Back Ratio
Azimuth Beamwidth (V-pol)
Elevation Beamwidth (V-pol)
Copyright © 2007 AirMagnet, Inc. All Rights Reserved.
The AirMagnet Directional Antenna will enhance the RF detection
and capabilities of the AirMagnet Analyzers in a single direction
helping narrow down the search pattern far more effectively. It is
small, light and portable.
Users need to attach the Velcro base (supplied with the directional
antenna package) to the laptop and connect it to the AirMagnet
card and start analyzing the wireless environment in the specific
Min
2.4 GHz
4.9 GHz
Nom Max
2.5 GHz
5.9 GHz
1:1.5
50 Ω
5 dBi
Linear
>20dB
55 deg
50 deg
