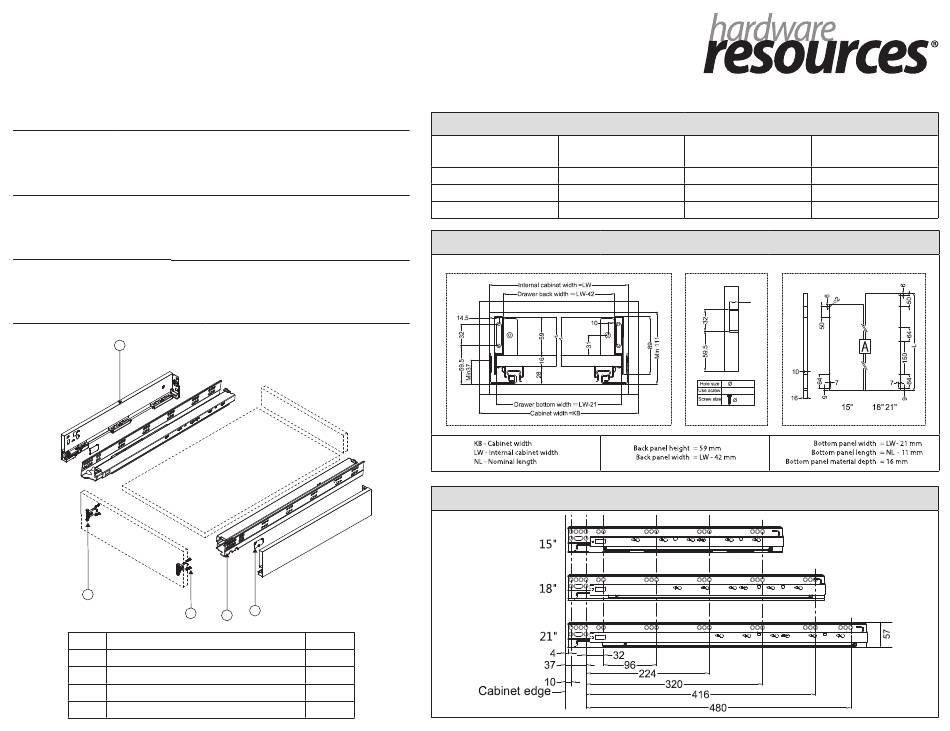

HARDWARE RESOURCES MDB500-089 Series Installation Instructions

Metal Drawer Box
Installation Instructions for the MDB500-089-xxx
IMPORTANT:
Before you begin, make sure you familiarize yourself with all the parts and fully read
the instructions.
CUSTOMER SERVICE:
Toll-free customer help line available weekdays between 7:00am and 6:00pm Central
Time at 800-463-0660.
TOOLS NECESSARY:
Screw gun or Phillips screwdriver and tape measure. NOTE: If screw gun has a clutch,
set to lowest setting so as not to over tighten and/or strip screws.
PARTS IDENTIFICATION:
1
5
4
1 Drawer profiles: (L/R)
2 Cabinet profiles: (L/R)
3 Side cover plate
4 Front fixing-bracket screws (4 x 17)
5 Front fixing-bracket
3
2
2X
2X
2X
4X
2X
Part Dimensions
Item No. Nominal length
MDB500-089-15GR 381 mm
MDB500-089-18GR 457 mm
Dimensions Dimensions Dimensions
MDB500-089-21GR 533 mm
Step 1 - Installation Dimensions
Dimensions
Step 2 - Slide Installation
Internal drawer Min. installation
length length of drawer
364 mm
440 mm
Front Panel Front Panel Front Panel Bottom Panel Bottom Panel Bottom Panel
516 mm
12 12 12
Front Panel Bottom Panel
12
2x12 2x12 2x12
Wood screw Wood screw Wood screw
4 x 17
4 x 17 4 x 17
2x12
Wood screw
4 x 17
399 mm
475 mm
551 mm
