V-TAC VT-8008 Instruction Manual

TECHNICAL DATA
MODEL
VT-8008
4971, 4980, 4981
SKU
4984, 4985
POWER
12W
LUMENS
840 Lm
INPUT VOLTAGE
AC: 220-240V, 50/60 Hz
BEAM ANGLE
120°
ON/OFF CYCLE
>10000
LIFE SPAN
20,000 Hours
WORKING
-25°C to +50°C
TEMPERATURE
STANDBY POWER
Approx. 0.6W (Stand-by)
10%/50%/100%
DETECTION AREA
(Can be customized)
10s/1min/5min/10min/30min
HOLD TIME
(Can be customized)
DAYLIGHT
5-50Lux ; Disable
THRESHOLD
Auto On/Off function
FUNCTION
(No condominating function)
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product. The products
are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This
product is warranted for manufacturing defects only.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
INSTRUCTION MANUAL

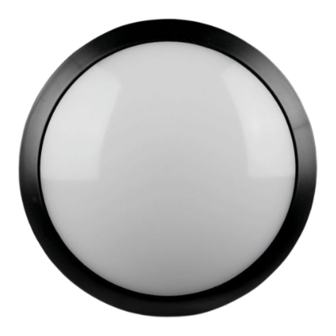

LED DOME LIGHT WITH SENSOR
SENSOR
Microwave motion detector
PRINCIPLE
MICROWAVE
5.8GHz+/-75MHz
FREQUENCY
MICROWAVE
<1mw
POWER
DETECTION
Max. (Ø x H): 10m x 4m
RANGE
DETECTION
30 --150°
ANGLE
MOUNTING
Max. 4m
HEIGHT
DIMENSION
Ø300x100mm
