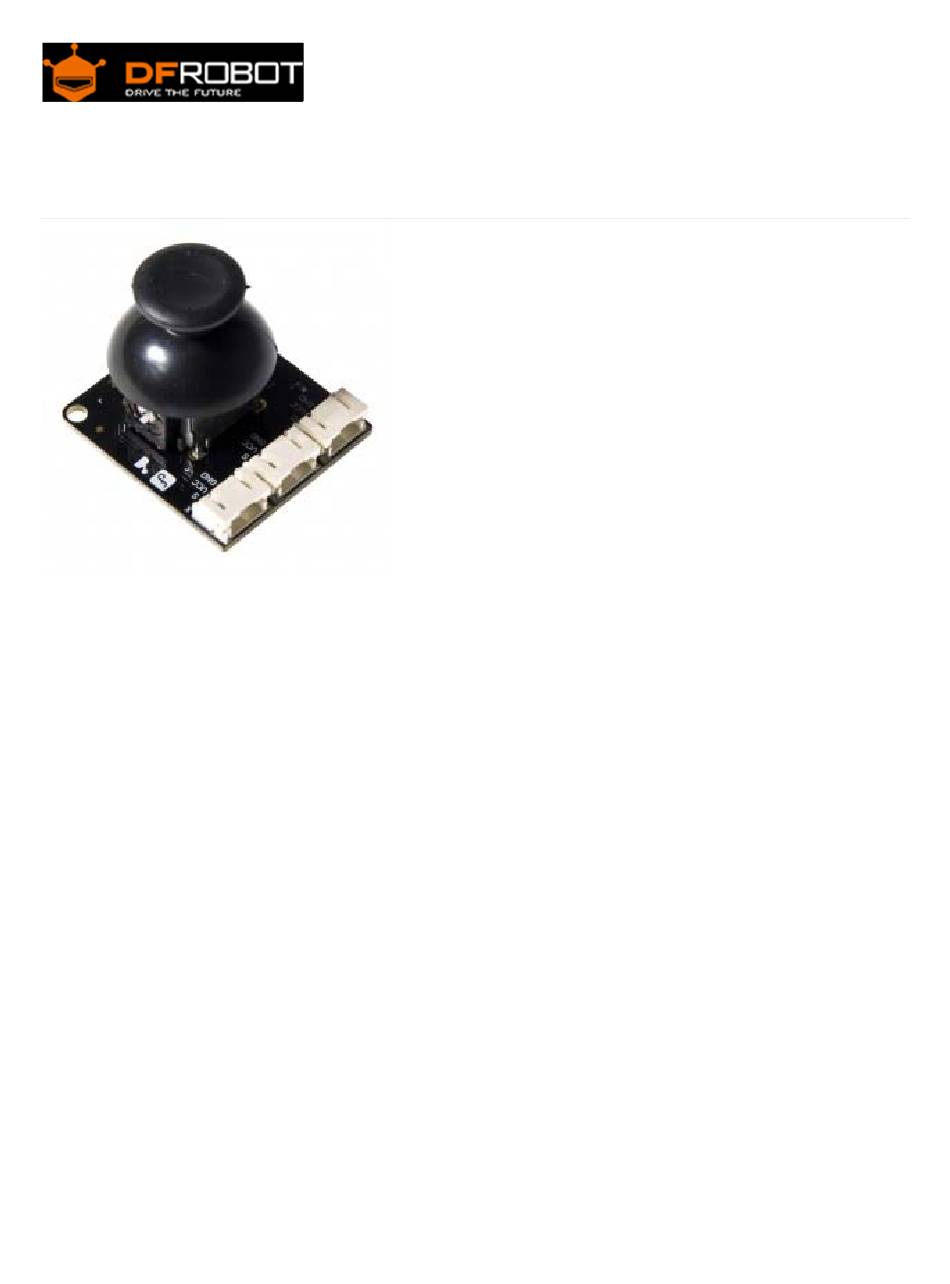

Joystick Module For Arduino SKU:DFR0061
Contents
1 Introduction
2 Specification
6 More
Introduction
Lots of robot projects need joystick. This module provides a affordable solution to that. Simply
connect to two analog inputs, the robot is at your commands with X,Y control. It also has a switch
that is connected to a digital pin. This joystick module can be easily connect to Arduino by IO
Expansion Shield For Arduino(V5) (SKU: DFR0088) with supplied cables.
Specification
Supply Voltage: 3.3V to 5V
Interface: Analog x2,Digital x1
PH2.0 Interface
Size:35x39mm
Weight:15g
Advertisement
Table of Contents
Summary of Contents for DFRobot DFR0061
-
Page 1: Table Of Contents
Joystick Module For Arduino SKU:DFR0061 Contents 1 Introduction 2 Specification 3 PinOut 4 Tutorial 4.1 Connection Diagram 4.2 Sample Code 5 Trouble shooting 6 More Introduction Lots of robot projects need joystick. This module provides a affordable solution to that. Simply connect to two analog inputs, the robot is at your commands with X,Y control. -
Page 2: Pinout
PinOut Pin X S——Analog OUT GND——GND VCC——VCC Pin Y S——Analog OUT GND——GND VCC——VCC Pin Z DATA——Digital OUT VCC——VCC GND——VCC... -
Page 3: Tutorial
VCC——VCC Pin Y S——A0 GND——GND VCC——VCC Pin Z DATA——D3 VCC——VCC GND——VCC Sample Code Libary installation // # // # Editor : Lauren from DFRobot // # Date : 17.01.2012 // # Product name: Joystick Module // # Product SKU : DFR0061... - Page 4 // # Version : 1.0 // # Description: // # Modify the Sample code for the Joystick Module // # Connection: // # X-Axis -> Analog pin 0 // # Y-Axis -> Analog pin 1 // # Z-Axis -> Digital pin 3 // # int JoyStick_X = 0;...
-
Page 5: Trouble Shooting
Trouble shooting More question and cool idea,visit DFRobot Forum Powered By DFRobot © 2008-2016...
