Kinyo PW-8899 User Manual

® KINYO A NEW DIMENSION IN SOUND

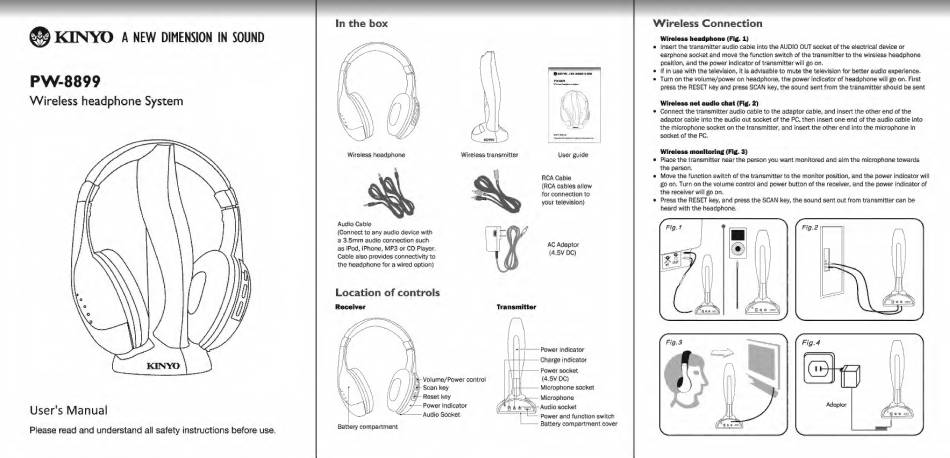

In the box

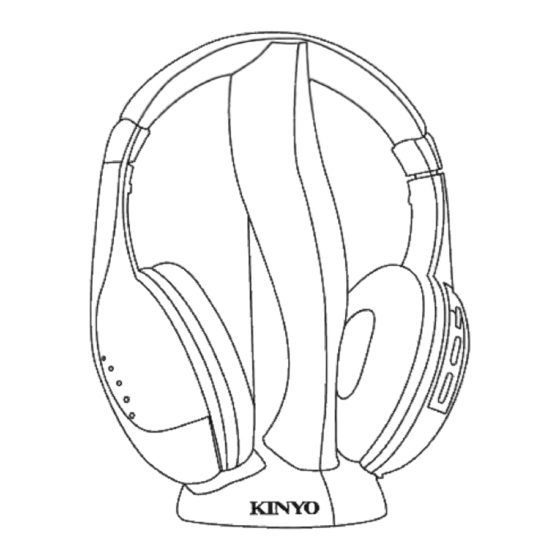

PW-8899
Wireless headphone System
User's Manual
Wir&less headphone Wireless transmitter
Audio Cable
(Connect to any audio device with
a 3.5mm audio connection such
as iPod, iPhone, MP3 or CD Player
Ca ble a iso provides con nectivity to
the headphone for a wired option j
Please read and understand all safety instructions before use.
Battery compartment
User guide
RCA Cable
(RCA cables allow
for connection to
your television)
AC Adaptor
C4.5V DC)
Power Indicator
Charge indicator
Power socket
(4,5V DC)
Microphone socket
Microphone
Audio socket
Power and function switch
Battery compartment cover
Wireless Connection
Wlrsl«M hoAdphatle (Fl£i 1)
• Insert the transmitter audb cable into the AUDIO OUT socket of the electrical device or
earphone socket and move the function switch of the transmitter to the wireless headphone
position, and the power Indicator of transmitter will go on.
• If In use with the television, it is advisable to mute the television for better audio experience.
• Turn on the volume/power on headphone, the power indicator of headphone will go on. First
press the RESET key and press SCAM key, the sound sent from the transmitter should be sent
Wlraloa* not audio chat (Fig, 2)
• Connect the trarKmItter audio cable to the adaptor cable, and insert the other end of the
adaptor cable Into the audio out socket of the PC^ then Insert one ervd of the audio cable Into
the microphone socket on the transmitter, and insert the other end into the micnophorre In
socket of the PC.
Wlt^laa* monltofflng (Fl£. 3)
• Place the transmitter near the person you want monitored and aim the microphone towards
the person.
• Move the function switch of the transmitter to the monitor position, and the power indicator will
go on. Turn on the volume control and power button of the receiver, and the power indicator of
the receiver will go on.
• Press the RESET key, and press the SCAN key, the sound sent out from transmitter can be
heard with the headphone.
