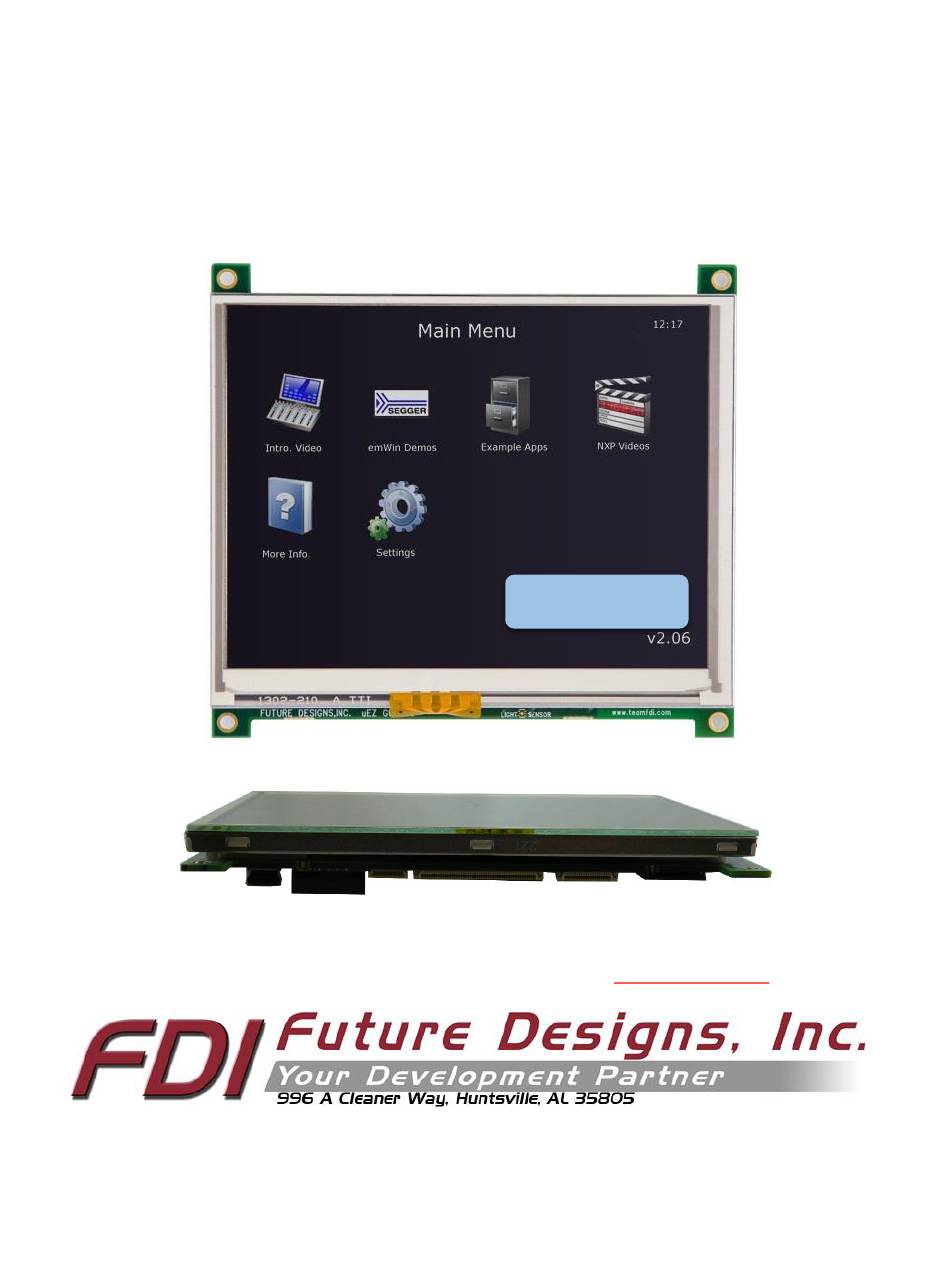

µEZ® GUI User's Manual
Covers the following products:
UEZGUI-1788-56VI (Dev Kit)
UEZGUI-1788-56VI-BA (Board Assembly)
Example Display Images
shown for Reference Only
NOTICE: At FDI we are constantly improving our documentation. Please get the latest version of this
document in the documentation tab of the product page at www.TeamFDI.com
Copyright ©2016, Future Designs, Inc., All Rights Reserved
Advertisement
Table of Contents
Summary of Contents for Future Design uEZ GUI Series
- Page 1 µEZ® GUI User’s Manual Covers the following products: UEZGUI-1788-56VI (Dev Kit) UEZGUI-1788-56VI-BA (Board Assembly) Example Display Images shown for Reference Only NOTICE: At FDI we are constantly improving our documentation. Please get the latest version of this document in the documentation tab of the product page at www.TeamFDI.com Copyright ©2016, Future Designs, Inc., All Rights Reserved...
-
Page 2: Table Of Contents
µ E Z G U I U s e r ’ s M a n u a l P a g e Table of Contents Introduction _______________________________________________________________________________ 4 Block Diagram ______________________________________________________________________________ 4 Kit Contents (FDI PN: UEZGUI-1788-56VI) ________________________________________________________ 5 Useful links ________________________________________________________________________________ 5 Functional Description _______________________________________________________________________ 5 Startup procedure ___________________________________________________________________________ 6 Demonstration Software Main Menu ___________________________________________________________ 7... - Page 3 µ E Z G U I U s e r ’ s M a n u a l P a g e Important Legal Information Information in this document is provided solely to enable the use of Future Designs products. FDI assumes no liability whatsoever, including infringement of any patent or copyright.
-
Page 4: Introduction
µ E Z G U I U s e r ’ s M a n u a l P a g e 1. Introduction UEZGUI-1788-56VI-BA provides a quick and easy solution for implementing a Graphical User Interface (GUI) based design by providing the basic functions necessary for most customer products. 2. -
Page 5: Kit Contents (Fdi Pn: Uezgui-1788-56Vi)
µ E Z G U I U s e r ’ s M a n u a l P a g e 3. Kit Contents (FDI PN: UEZGUI-1788-56VI) • UEZGUI-1788-56VI-BA Resistive Touch Screen Kit with LCD • Segger Mini-JTAG Debugger and JTAG cable •... -
Page 6: Startup Procedure
µ E Z G U I U s e r ’ s M a n u a l P a g e 6. Startup procedure The µEZ GUI kit comes with a pre-installed Micro SD card that contains files required for the slide show and videos to run. -
Page 7: Demonstration Software Main Menu
µ E Z G U I U s e r ’ s M a n u a l P a g e 7. Demonstration Software Main Menu Note: The Demonstration Software is subject to change at any time. The following software demonstrations are available from the Main Menu: Example Apps Selecting the Example Apps icon will load the Example Applications Screen with the following options: •... -
Page 8: Setting Up A Slideshow
µ E Z G U I U s e r ’ s M a n u a l P a g e Select the slideshow you would like to view by touching the menu entry for it on the touch screen. The slide show will auto-play by default. -
Page 9: Setting Up A Video
µ E Z G U I U s e r ’ s M a n u a l P a g e This guide also covers making speaker notes that can play alongside your slides. 9. Setting up a Video Suggested procedures on creating videos for playback using the µEZ video player provided in µEZ v2.05 (and later) on supported µEZ GUI hardware, is available in the FDI Video Creation Guide (link below). -
Page 10: Software
µ E Z G U I U s e r ’ s M a n u a l P a g e | 10 12. Software ® μEZ takes its name from the Muses of Greek mythology. A Muse was a goddess who inspired the creation process ®... -
Page 11: Configuring Rowley Crossworks Crossstudio For Arm® For J-Link Flashing
µ E Z G U I U s e r ’ s M a n u a l P a g e | 11 • • Processor and Platform BSPs TCP/IP stack • (Board Support Packages) USB Device/Host Libraries • •... -
Page 12: Configuring Iar Ewarm V6 For J-Link Flashing
µ E Z G U I U s e r ’ s M a n u a l P a g e | 12 6) If programming a blank LPC1788 part, select a Speed of 100. If the part has already been programmed, select a Speed of 1000. -
Page 13: Configuring Keil Uvison 4 For J-Link Flashing
µ E Z G U I U s e r ’ s M a n u a l P a g e | 13 15. Configuring Keil uVison 4 for J-Link Flashing To configure Keil, use the following steps. 1. Click Flash from the Menu Bar and select Configure Flash Tools… 2. -
Page 14: Board Layout
µ E Z G U I U s e r ’ s M a n u a l P a g e | 14 • RTC – Sets the time and confirms the clock is running. • SDRAM size test - Memory is sized and a basic test is performed to confirm read/write access. -
Page 15: I/O Connector Descriptions
µ E Z G U I U s e r ’ s M a n u a l P a g e | 15 18. I/O Connector Descriptions J5 - JTAG Connector The UEZGUI-1788-56VI-BA uses a reduced size JTAG connector based on a 2mm Header. This smaller connector provides 100% of the functionality of the standard 20-pin JTAG connector, but utilizes 70% less board space. - Page 16 µ E Z G U I U s e r ’ s M a n u a l P a g e | 16 Pin Number Description Micro SD Chip Select Micro SD MOSI 3.3V Micro SD SCLK Ground Micro SD MISO WARNING: The microSD card must only be removed using the spring loaded “push-pull”...
-
Page 17: J3 - Isp Connector J3 (Not Loaded)
µ E Z G U I U s e r ’ s M a n u a l P a g e | 17 To remove the microSD card, press the card back into the socket until another “click” sound is heard, then release pressure on the card. -
Page 18: J10 - Alternate Power And Communication
µ E Z G U I U s e r ’ s M a n u a l P a g e | 18 J10 - Alternate Power and communication The UEZGUI-1788-56VI-BA is laid out with an alternate power and communication header. This header provides access to UART 3, as well as a 5V power input. -
Page 19: J2 & J6 - Expansion Connectors
µ E Z G U I U s e r ’ s M a n u a l P a g e | 19 J2 & J6 - Expansion Connectors The UEZGUI-1788-56VI-BA includes two expansion connectors that provide a wide variety of capabilities for user expansion, ranging from 10/100 Ethernet to USB Host, etc. - Page 20 µ E Z G U I U s e r ’ s M a n u a l P a g e | 20 Pin Name Pin Description MOSI1 - Master Out Slave In for SSP1. P0[8] -General purpose digital Input/Output pin. I2STX_WS - I2S Transmit word select.
- Page 21 µ E Z G U I U s e r ’ s M a n u a l P a g e | 21 Pin Name Pin Description ENET_CRS_DV/ENET_CRS – Ethernet Carrier Sense/Data Valid (RMII interface)/ Ethernet Carrier Sense (MII interface) P1[4] - General purpose digital Input/Output pin.
-
Page 22: J2 & J6 - Expansion Connector Cable Details
µ E Z G U I U s e r ’ s M a n u a l P a g e | 22 Pin Name Pin Description MCIPWR – Power Supply Enable for external SD/MMC Power Supply PWM0[3]-Pulse Width Modulator 0, output 3 P1[3] –... -
Page 23: Schematics
µ E Z G U I U s e r ’ s M a n u a l P a g e | 23 19. Schematics Please see the FDI website at https://www.teamfdi.com/products/uEZGUI-1788-56VI/sch/UEZGUI_5P6_SCH_2.pdf for support documentation. 20. Temperature Range UEZGUI-1788-56VI-BA board w/o LCD: -40°C to +85°C UEZGUI-1788-56VI-BA with LCD: -20°C to +60°C 21. -
Page 24: Mechanical Details
µ E Z G U I U s e r ’ s M a n u a l P a g e | 24 o USB Low Power Specifications are 100mA maximum, and 4.4V to 5.25V standard. • The µEZ GUI is capable of providing a maximum of 100mA of 3.3V power for “external use” over the expansion connectors. - Page 25 µ E Z G U I U s e r ’ s M a n u a l P a g e | 25 Figure – Mechanical Layout (Component View) Figure – UEZGUI-1788-56VI Dimensions and Stack-up 3/27/2024 Revision 6 Copyright ©2024, Future Designs, Inc...
