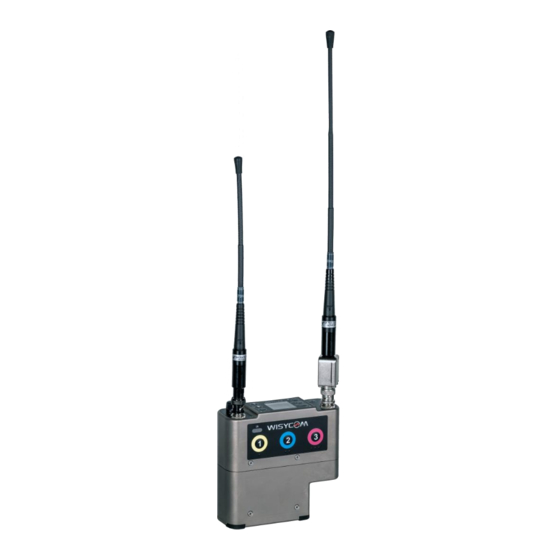

- Page 1 RPU500-TR User Manual Full Duplex reporter unit Rev.07 (ref. FW v2.3.0) Date: 26 February 2024...
-
Page 2: Safety Instruction
Keep attention on all the labels with warnings or hazards on the apparatus. • THE DEVICE CAN ONLY BE WEAR WITH THE BELT CLIP PROVIDED BY WISYCOM (code: BCL500), It is not possible to wear other belt clips NOT authorized by Wisycom... -
Page 3: Product Overview
RPU500-TR User Manual RODUCT OVERVIEW FRONT ❹ ❺ ❻ ❼ ❶ ❽ ❷ ❾ ❸ ❿ ⓫ ⓬ ⓭ ❶ TNC antenna connector for TX ❽ BNC antenna connector for RX ❷ REC button** ❾ VOLUME knob (for audio recording on SD card) ❸... - Page 4 (for power and control) 10-18V (pin1:GND, pin4:+Vdc) ❺ ON/OFF switch ⓫ waterproof jack 3.5mm (audio output or Aux input) ❻ Lazy 1 button* ⓬ waterproof jack 3.5mm (audio output) *Standard Wisycom sub-tone. Other sub-tones can be configured in Wisycom factory...
-
Page 5: Quick Setup
RPU500-TR User Manual UICK SETUP unlatch the battery compartment latch at the bottom of the device insert the battery move the wireless power switch in “I” position to power on the device the front LED lights up green and the display switch on ❸... -
Page 6: Transmitter Info
In Lazy mode, on the other hand, it is necessary to hold down the Lazy buttons to keep the transmission active. Wisycom receiver MRK980 detects the sub-tones and pass this information to the mixer (via Ethernet / Ember + protocol). From the mixer it is therefore possible to configure the... -
Page 7: Display - Receiver
RPU500-TR User Manual – R ISPLAY ECEIVER Name of receiver Status of Transmission RX Compander Group & Channel Level of Battery % and time (hours :minutes) RX Frequency RF Level Time Use the ARROWS to switch between Transmitter and Receiver display. - Page 8 RPU500-TR User Manual...
- Page 9 RPU500-TR User Manual NOTE: Features not still implemented (reference firmware v2.3): • SD card recording • Bluetooth • SYNC...
- Page 10 Use the selector and arrows to change values and SAVE to confirm. NOTE: The device has 40 groups of 60 channels each. Connecting with computer with WISYCOM MANAGER software, it is possible to hide single channels or even complete groups of channels: once hidden those items are not shown anymore on the channels or groups selection.
- Page 11 The choice of one of these modes is instantaneous (no need to restart the device) Pwr profile: Wisycom pre-configure a Power Profile in the memory of the device which automatically limit the RF level and/or the frequency ranges according to the county specification.
-
Page 12: Buttons Menu
It is compatible with MTK952*, MTK982** *firmware v.17 or higher **firmware v2.0 or higher Mode: Standard Wisycom CTCSS tone is 131.8Hz. Other CTSS can be set. Buttons menu: Buttons menu allows to configure the behavior of the Talk button, Lazy buttons and Function (FN) button. -
Page 13: Audio Menu
RPU500-TR User Manual Audio menu: Thanks to the Audio menu is possible to configure all the audio parameters. Mic gain: To change gain from 0 to 38 dB on MIC/LINE IN audio input port. Phantom: To enable phantom power (12V or 48V). -
Page 14: Accessories And Parts
RPU500-TR User Manual ACCESSORIES AND PARTS Item: LBP500 Standard Lithium Battery pack 10.80V / 3.35Ah / 36.20Wh Item: LBC500 Mini Smart Battery Charger with external power supply Item: CAL1x Power Cord 2 m. black CAL11: USA, NEMA 5-15P / IEC 60320 C5... - Page 15 RPU500-TR User Manual Item: AWB500-xxx (only for RPU500-EU_T1 version) 1/2 Dipole antenna with BNC connector for transmission: • AWB500-494: band 470-517 MHZ • AWB500-540: band 515-563 MHZ • AWB500-590: band 562-609 MHZ • AWB500-625: band 609-645 MHZ • AWB500-670: band 645-696 MHZ •...
-
Page 16: Technical Specifications
Peak deviation ± 35 kHz (IFB narrowband), ± 8,5 kHz (Talkback 50Khz), ± 4 kHz (Talkback 12,5Khz) Noise Reduction ENS - Wisycom Extended-Sound Optimized (other on request) system AF bandwidth for TX 50 Hz - 20 KHz (1dB) (Wideband, ARM based, SW switchable) -
Page 17: Manufacturer Declarations
RPU500-TR User Manual 440mA @12V / 5.28W in VHF range 450 ÷ 530 mA @12V in UHF range depending of the frequency and temperature (display off, 1 Watt) RECEIVER: 70 mA @12V / 0.84W Battery life > 5h (power profile & IIP3 trade off) with Lithium RRC2040 Temperature range -10 - +55 °C... - Page 18 RPU500-TR User Manual WARNING: Wisycom srl. is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user’s authority to operate the equipment. The FCC and IC identifier is visible in the display when the device is switched on and it is also available by accessing the Options>...
- Page 19 RPU500-TR User Manual Antenna types (50 Ohm impedance, max gain 2.15dBi) • AWT500-180: band 170 - 188 MHz • AWT500-197: band 188 - 206 MHz • AWT500-213: band 206 - 220 MHz • AWT500-455 : band 440 - 470 MHz •...
- Page 20 RPU500-TR User Manual Via Tiepolo, 7/E - 35019 Tombolo (PD) Italy Tel. +39 -0424 -382605 • Fax +39 - 0424 - 382733 www.wisycom.com • e-mail: sales@wisycom.com...
