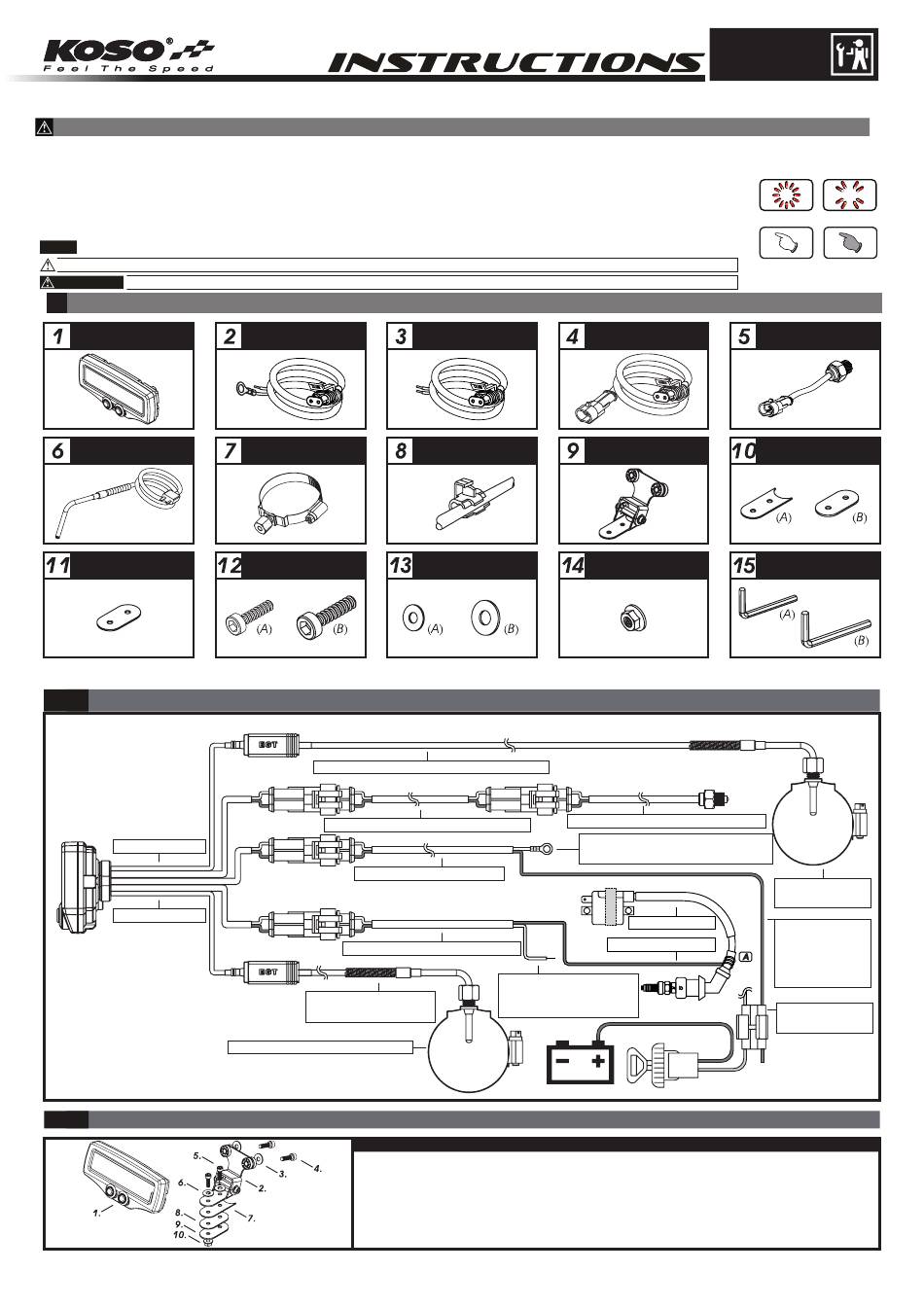

Koso EGT-02R EVO Instructions Manual

Thank you for purchasing our product. Before installing/operating the product, read the instructions carefully and retain them
for future reference.
Attention!
● For installation, follow the steps described. Any damage caused by wrong installation shall be imputed to the users.
● To avoid a short circuit from occurring do not pull or modify the wires during installation.
● Do not disassemble or change any parts. Opening and dissassembling this unit will void any warranty.
● Maintenance and repairs should be executed by our professionals only.
Symbol description:
NOTE
Some procedures must be followed to avoid damages to the product.
WARNING!
Certain procedure must be followed to avoid damages to yourself, to the vehicle or to others.
1
Accessories
LCD meter X 1
EGT temperature
sensor
Steel plate X 1
2-1 Wiring installation instructions
Temperature R
Temperature L
2-2 Installation instructions
Power wire X 1
Exhaust clamp X 2
M4 X 18L screw X 2
M5 X 18L screw X 2
EGT temperature sensor(Accessory 6)
Temp sensor wire(Accessory 4)
Power wire(Accessory 2)
RPMsignal wire(Accessory 3)
EGT temperature
sensor(Accessory 6)
Exhaust clamp((Accessory 7)
When installing, follow the steps below
1.LCD meter(Accessory 1)
2.Meter bracket(Accessory 9)
3.M5 gasket x 2(Accessory 13-B)
4.M5 x 18L screw x2(Accessory 12-B)
5.M4 x 18L screw x2(Accessory 12-A)
6.M4 gasket x2(Accessory 13-A)
RPM signal wire X 1
Temp sensor wire X 1
Mid-way connector X 1 Meter bracket X 1
M4 washer X 2(A)
M5 washer X 2(B)
Temperature sensor
Black/ Ground wire connect
to the negative pole of the battery.
Black / Ground wire
connect to the negative
pole of the battery.
Water temp sensor X 1
Rubber X 1 (A)
Rubber X 1 (B)
M3 allen key X 1
M4 X P0.8 nut X 2
M4 allen key X 1
(Accessory 5)
Spark plug wire
Orange/ RPM wire
7.Rubber(Accessory 10-A)
8.Rubber(Accessory 10-B)
9.Steel plate(Accessory 11)
10.M4 x P0.8 nut x 2(Accessory 14)
Flash Light on
Hold the Hold the
Button Button
1 second 3 seconds
Exhaust clamp
(Accessory 7)
Red/(+)Wire
connect key on
AC and DC12V
main power
switch
Mid-way connector
(Accessory 8)
