Summary of Contents for Finish Thompson FMTKB Series

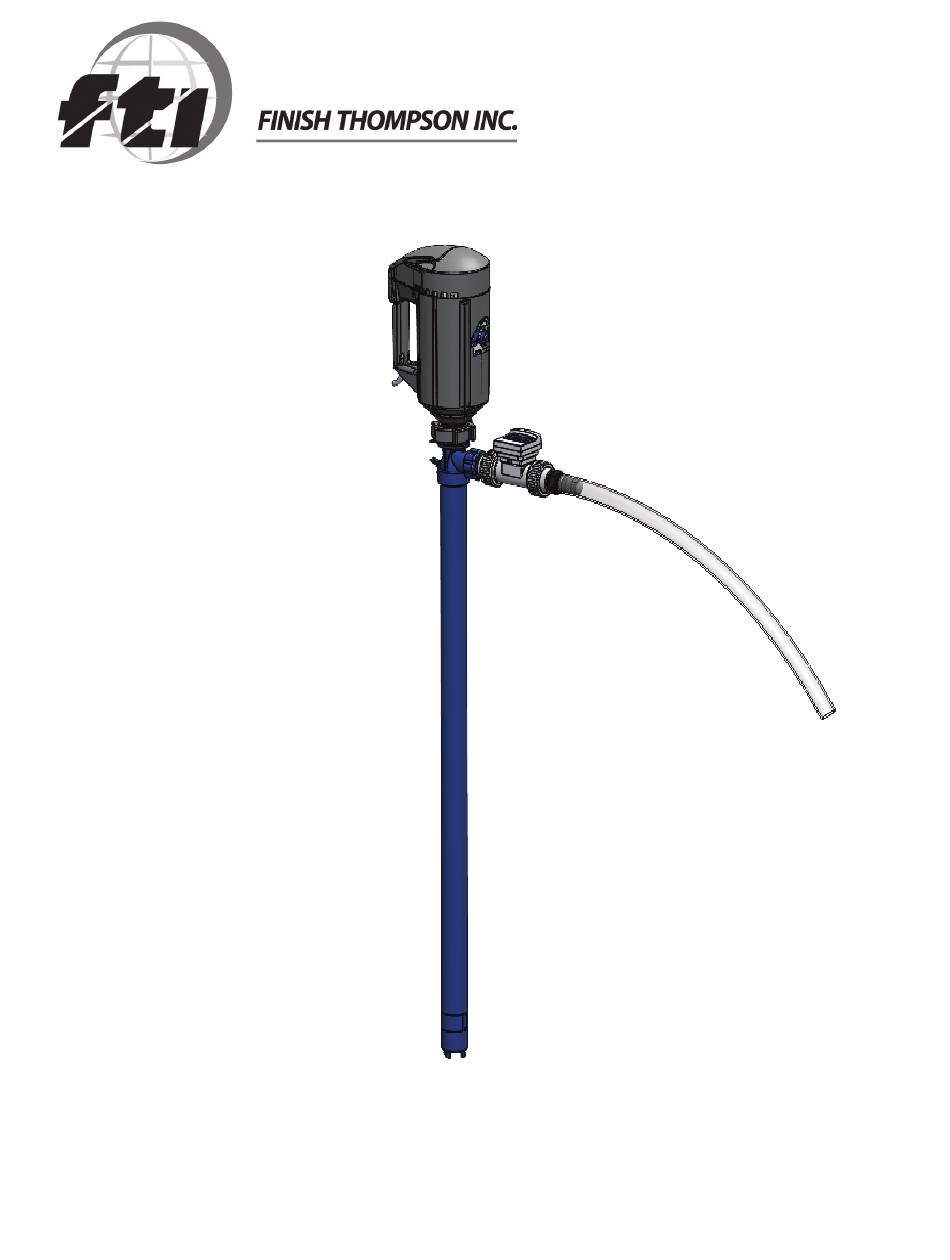

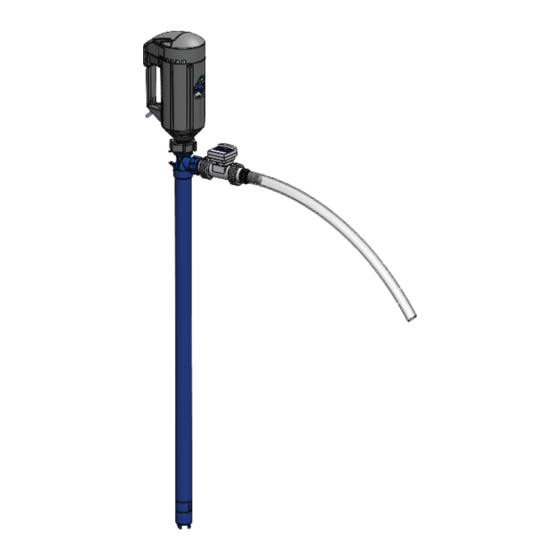

- Page 1 Drum Pump Flow Meter Model FMTKB Series Operating Instructions P/N 211150 R1...
- Page 2 EU Declaration of Conformity Finish Thompson Inc. hereby declares that the following electrical equipment fully comply with the applicable health and safety requirements as specified by the EU Directives listed. This declaration is valid provided that the devices are fully assembled and no modifications are made to these devices.
-
Page 3: Table Of Contents
Table of Contents Safety ..................................4 Introduction ................................5 Technical Specifications ............................. 5 Features, Exploded View, & Dimensions ........................6 Section 1 - Installation ..............................7- 8 Section 2 - Operation ..............................8 Flow Rate | Flow Totalizer Display ......................9 Pump Model K- Factors .......................... -
Page 4: Safety
Safety ALWAYS wear protective clothing, eye protection and follow standard safety procedures when handling corrosive or harmful materials. NEVER use this flow meter with flammable or combustible liquids. NEVER use this flow meter in a hazardous environment. ALWAYS verify chemical compatibility with the flow meter and pump materials of construction before operation. ALWAYS make sure the pump and hose are properly supported. -
Page 5: Introduction
Introduction Thank you for purchasing an FMTKB Series electronic flow meter. The FMTKB Series is designed to measure the flow of a fluid being dispensed from Finish Thompson’s PFP, PFM, PFV, SFM, SFP, SFV, SFVV, EFP, and EFV drum pumps. The meter is factory calibrated for the PF models and displays information on an LCD display. -
Page 6: Features, Exploded View, & Dimensions
• ETFE and Zirconium materials provide excellent chemical and wear resistance • Contoured fl ow design reduces turbulence for increased longevity • High accuracy Kit Contents: • FMTKB Series Meter • Flow meter adapter fi tting • Discharge nut • Hose barb adapter... -
Page 7: Section 1 - Installation
Section 1 - Installation 1. Install 3V Lithium Battery (CR2477T) - See below for installation instructions. Battery Installation / Replacement Insert the New Battery Lightly Press on Remove the Battery Remove the Battery Ensure (+ -) orientation is Insert the New Battery Both Sides Battery Cover correct... -
Page 8: Section 2 - Operation
The meter is shipped from the factory with one 3V Lithium battery. • The FMTKB Series is factory calibrated to ± 0.5% of full-scale rate reading. Accuracy is based on laboratory testing using a PF, SF, & EF Series pump. -
Page 9: Flow Rate | Flow Totalizer Display
Flow Rate | Flow Totalizer Display “r” indicates Default Flow Rate Mode Press and hold for 3 sec to view 8 + 9 digits while in Totalizer Screen Press and hold for 3 sec to change from Flow Rate Flow Total Mode of Operation Highlighted to Indicate (Eco) = Extended Battery Life... -
Page 10: Programming
Programming Move selection left Select/Save/Continue Change digit value Flow Rate Units Flow Total | Totalizer Units Press and hold for 3 seconds, then press to select STEPS DISPLAY OPERATION Home Screen Home Screen �� r = Flow Rate | Default Setting 5 Sec . -
Page 11: Calibration And Calculations
Calibration While the FMTKB has been calibrated at the factory, field calibration is possible to increase accuracy at a given flow. Use the following steps for field calibration. Step One – Determine Actual Volume versus Meter Reading Compare the actual volume of the fluid being pumped with the volume shown on the meter. You can either use a calibrated container or you can use a known weight. - Page 12 this flow rate _____. c. Subtract the actual measured flowrate from the flowrate displayed on the flowmeter. Then divide by 79 GPM or 300 LPM (the max flowrate). Record this full scale error ____. Calibration Continued Step Four – Temporary K value A temporary new K value will be tested with to determine a more accurate K value.
-
Page 13: Section 3 - Accuracy
Section 5 - Warranty Finish Thompson, Inc (manufacturer) warrants this product to be free of defects in materials and workmanship for a period of one year from date of purchase by original purchaser. If a warranted defect, which is determined by manufacturer’s inspection, occurs within this period, it will be repaired or replaced at the manufacturer’s option, provided (1) the product is submitted with proof of purchase date and (2) transporta-... -
Page 14: Section 6 - Spare Parts
Section 5 - Spare Parts Item Qty. Description PF Series Part Number SF Series Part Number EF Series Part Number* Number Polypropylene PVDF Polypropylene PVDF Polypropylene PVDF Complete Flow Meter Assembly 211013 211013-1 211013-2 211013-3 211013-4 211013-5 Flow Meter 211012 211012-1 211012 211012-1...
