Summary of Contents for Satec EDL180

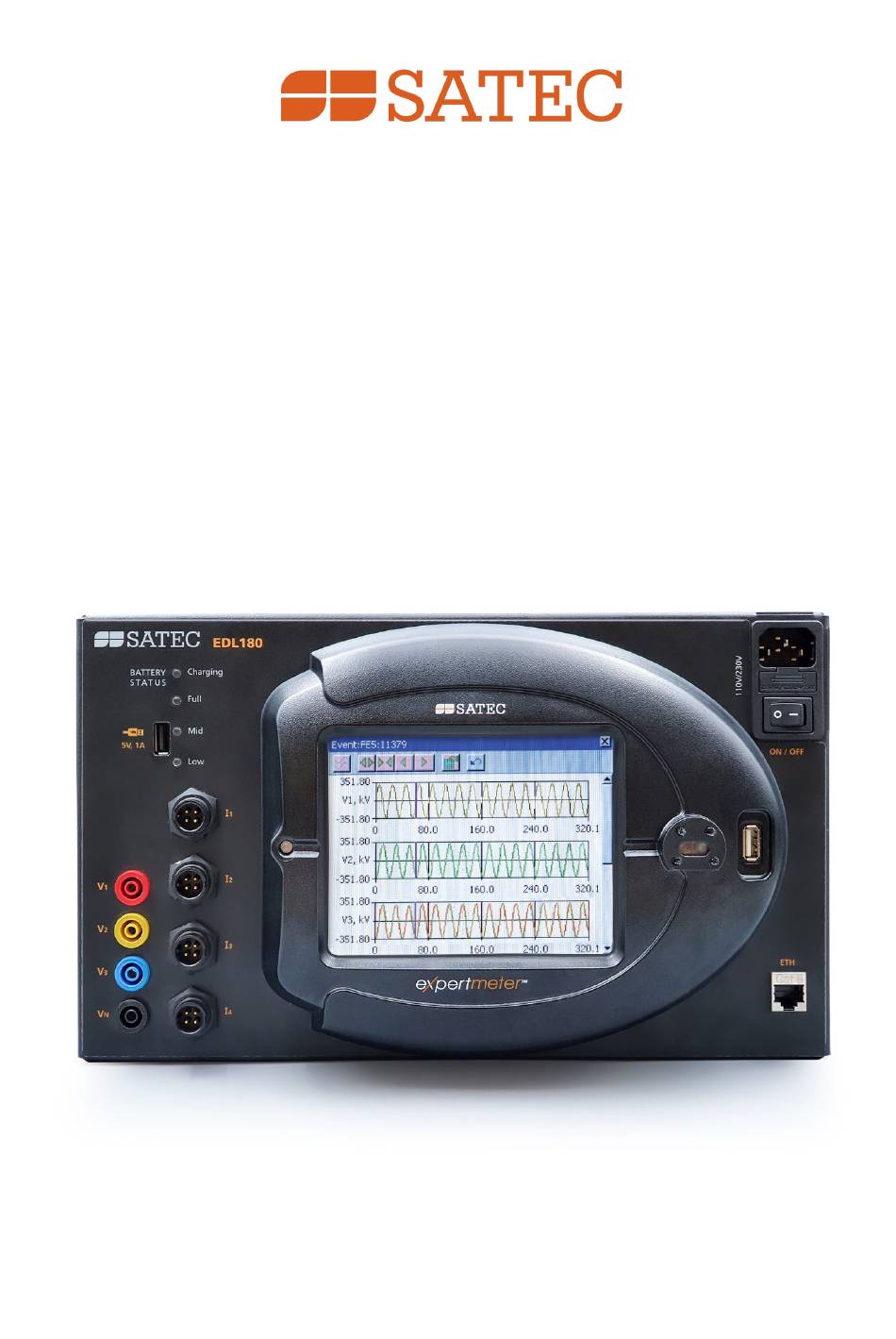

- Page 1 EDL180 Portable Event & Data Logger Installation & Operation Manual BG0647 REV.A1...
- Page 2 SUPPLEMENTARY INSTRUCTIONS: This manual provides instructions for using the EDL180. For instructions and information on using the PM180, refer to the PM180 Installation and Operation Manual; for instructions and information on using the PAS software package, refer to the PAS User's Manual included in the accompanying CD for the PM180 Series.
-
Page 3: Table Of Contents
Table of Contents Portable Event & Data Logger ......................4 1.1 The EDL180 Portable Event ......................4 Physically supplied content ......................5 Front Panel Components ......................... 6 Installation / wiring .......................... 7 4.1 Location ............................7 4.2 Power Supply and UPS Charging ....................7 4.3 LED Charging Indicators ......................... -
Page 4: Portable Event & Data Logger
The EDL180 is suitable for direct measurement of voltages up to 828V AC (or greater when using a Potential Transformer). The EDL180 is provided with standard current clamps featuring a range of options between 30-3,000A AC nominal current with nominal 2V AC or 3V AC outputs. -
Page 5: Physically Supplied Content
5. Flex current sensors: 4 units according to ordered model: 30/300/3,000A model: requires battery (not supplied) 200A model: does not require battery 6. USB cable: type A to type A Read through this section carefully before connecting the EDL180 to the circuit being tested. -
Page 6: Front Panel Components
3. Front Panel Components Figure 1: Front panel components, inputs and outputs AC Power Supply Socket Fuse Power-on switch RGM display module ETH port Current-clamp inputs Voltage inputs USB-A port screen 10 Energy pulse LED 11 IR port 12 USB-A port 13 LED battery level indicators 13 battery charging status LED... -
Page 7: Installation / Wiring
4.1 Location The distance between the EDL180 and the current lines must be at least half a meter (1.6 feet) for current lines carrying up to 600A, and at least one meter (3.3 feet) for currents between 600A and 3,000A. -
Page 8: Configuring Wiring Mode And Ct Ratings
4.7 Configuring Wiring Mode and CT Ratings The wiring mode of the EDL180 is the same as for the PM180. See standard example below (figure 2). For alternative line configurations please refer to the PM180 Installation and PM180 Operation manuals (separate documents). -
Page 9: Internal Uninterrupted Power Supply
4.8 Internal Uninterrupted Power Supply The EDL180 includes a rechargeable UPS. When fully charged, the UPS allows the EDL180 to work for over 4 hours at maximum consumption. It is recommended to switch off the unit when not in use to prevent discharge. - Page 10 Accuracy: The EDL180 accuracy is set by the combined accuracies of the PM180, current clamps and the PT, if used. The common factors are the unit accuracy and that of the current clamps, which are the dominant factor. Operation temperature: 0-60℃...
- Page 11 BG0647 REV.A1...
