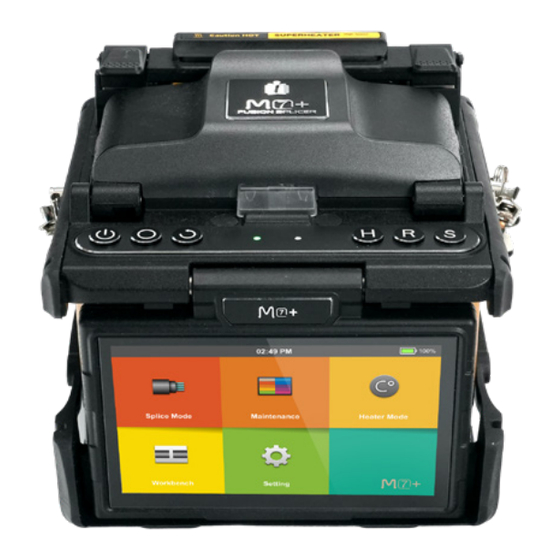

Summary of Contents for INNO M7+
- Page 1 Ver V1.00 User Manual Compact Active V-Groove Cladding Alignment Fusion Splicer...
-
Page 2: Table Of Contents
VIEW 5 Pro Contents Preface Chapter 1 Technical Parameters 1.1 Applicable Fiber Types............................1.2 Splice Loss................................1.3 Splice Mode................................. 1.4 Heating................................. 1.5 Power Supply............................... 1.6 Size and Weight..............................1.7 Environmental Conditions..........................1.8 Other..................................1.9 Battery Precautions............................Chapter 2 Installation 2.1 Safety Warning and Precautions........................2.2 Installation................................ - Page 3 M7+ User Manual | 3 7.2 Replace Electrodes..........................7.3 Stabilize Electrodes..........................7.4 Motor Calibration..........................7.5 Arc Calibration............................Chapter 8 Utilities 8.4 System Settings............................8.5 System Information..........................Appendix I..............................Appendix II..............................Appendix III..............................
-
Page 4: Preface
VIEW 5 Pro Preface Thank you for choosing the M7+ Arc Fusion Splicer from INNO Instrument. The M7+ adopts innovative product design and exquisite manufacturing technology to deliver unprecedented splicing experience to customers. The completely new technology greatly reduces splicing and heating time. The advanced estimation method and alignment technique ensures accurate splice loss estimation. -
Page 5: Chapter 1 Technical Parameters
M7+ User Manual | 5 Chapter1 - Technical Parameters 1.1 Applicable Fiber Type • Alignment Method: Active V-Groove Clad Alignment • SM(ITU-T G.652&T G.657)/MM(ITU-T G.651)/DS(ITU- T G.653)/NZDS (ITU-T G.655) • Fiber count: Single • Coating diameter: 100μm - 3mm • Cladding diameter: 80 to 100μm 1.2 Splice Loss Same fiber is spliced and measured by cut-back method relevant to ITU-T standard. -
Page 6: Other
VIEW 5 Pro 1.8 Other • 4.3" Color LCD display, Full Touch Screen • 320x magnification • Pull test: 1.96 to 2.25N. 1.9 Battery precautions • • Avoid touching or striking the battery with pointed or sharp objects. • Keep the battery away from metal materials and objects. •... -
Page 7: Chapter 2 Installation
Any actions that do not follow the warnings and cautions will break the safety standard of design, manufacture, and usage of the fusion splicer. INNO Instrument will not take any responsibility for the consequences caused by misuse. -
Page 8: Installation
VIEW 5 Pro Transport and Storage Precautions • When transporting or moving the splicer from a cold to a warm environment, it is essential to allow the fusion splicer to warm up gradually to prevent condensation inside the unit, which can have harmful effects on the splicer. •... -
Page 9: Overview Of External Parts
M7+ User Manual | 9 2.3 Overview of External Parts Heater Control buttons ON/OFF button Battery Display USB TYPE-C Power Supply Connector... -
Page 10: Power Supply Method
VIEW 5 Pro 2.4 Power Supply Method Battery The following diagram presents how to install the battery. Switch off the Fusion Splicer Press the release button, this will allow you to slide the battery out of the fusion splicer. Push the battery Place the battery into the power unit slot Push it into the right place. -
Page 11: Chapter 3 Basic Operation
2. Clean bare fibers with pure alcohol-soaked gauze or lint-free tissue. 3. Cleave the fiber: In order to ensure the best splicing result, cleave the fibers with a high precision cleaver such as INNO Instrument V series fiber cleaver, and strictly control the cleaving lengths shown as below. -
Page 12: How To Make A Splice
VIEW 5 Pro 3.3 How to Make a Splice • Open the windproof cover. • Open the fiber clamps. • Place the fibers into V-grooves. Make sure the fiber ends are between the V-groove edges and the electrode tip. • Clamp the fiber in position by closing both sets of fiber clamps. -
Page 13: How To Protect The Splice
M7+ User Manual | 13 3.4 How to Protect the Splice After splicing, put the fiber with heat-shrink sleeve into the heater. Press [Heat] button to start the heating process. Heating Procedure • Open the heater lid • Open the left and right fiber holders. Hold the heat-shrink sleeve (previously placed onto the fiber). Lift the spliced fibers and hold them tight. -
Page 14: Chapter 4 Splice Mode
VIEW 5 Pro Chapter 4 - Splice Mode M7+ has a variety of simple but very powerful splice modes which define arc currents, splice times as well as various parameters used when performing a splice. It is essential to select the correct splice mode. There are a number of “Preset” splice modes for common fiber combinations. -
Page 15: General Splicing Steps
M7+ User Manual | 15 4.3 General Splicing Steps This section explains the steps involved in automatic splicing process and describes how various splice mode parameters are related to this process. The normal splicing process can be divided into two sections: pre-fusion and fusion. Pre-Fusion During pre-fusion, the splicer performs automatic alignment and focusing, where the fibers are subject to a low pre- fusion current for cleaning purposes;... -
Page 16: Standard Splicing Parameters
VIEW 5 Pro 4.4 Standard Splicing Parameters Parameter Description A list of splice modes stored in the splicer database is displayed. Upon selecting the appro- Template priate mode, the selected splice mode settings are copied to a selected splice mode in the user-programmable area. -
Page 17: Chapter 5 Splice Option
M7+ User Manual | 17 Chapter 5 - Splice Option 5.1 Splice Mode Setting 1 Select [Splice option] in the Splice Mode Menu. 2 Select the parameter to change. Parameter Description If “Auto start” is set to ON, splicing starts automatically as soon as the windproof cover is Auto start closed. -
Page 18: Chapter 6 Heater Mode
VIEW 5 Pro Chapter 6 - Heater Mode The splicer provides max 32 heat modes, including 7 heat modes preset by INNO Instrument, which can be modifed, copied and removed by user. Select a heating mode that best matches with the protection sleeve used. -
Page 19: Delete Heat Mode
M7+ User Manual | 19 Select the parameters to modify 6.3 Delete Heat Mode Select [Heater Mode] menu. Select [Delete Heat Mode]. Select the heat mode to be deleted Note: The grayed-out modes (20mm, 30mm, 40mm, 50mm, 33mm) are the system presets which cannot be deleted Heat Mode Parameters Parameter Description... -
Page 20: Chapter 7 Maintenance Menu
VIEW 5 Pro Chapter 7 - Maintenance Menu The splicer has multiple functions to perform routine maintenance. This section describes how to use the maintenance menu. Select [Maintenance Menu]. Select a function to perform. 7.1 Maintenance The splicer has a built-in diagnostic test function that allows the user to evaluate several critical variable parameters in only one simple step. -
Page 21: Stabilize Electrodes
Note: Do not over tighten the electrode covers. INNO Instrument strongly recommends all users to perform [Stabilize Electrodes] and complete an [Arc Calibration] after electrode replacement to maintain good splice results and splice strength (details are described below). 7.3 Stabilize Electrodes Operation Procedure •... - Page 22 VIEW 5 Pro Through image analysis, the splicer detects dust and contaminants on the splicer cameras, and lenses that may result in improper fiber detection. This function checks the camera images for the presence of contaminants and evaluates whether they will affect the quality of splicing. Operation Procedure •...
-
Page 23: Chapter 8 Utilities
M7+ User Manual | 23 Chapter 8 - Utilities 8.1 System Setting Parameter Description Buzzer Sets the sound buzzer. Temperature Unit Sets the unit of temperature. If set to [On], when the fiber is placed into the heater. The heater will automatically execute Automatic Heating heating. - Page 24 VIEW 5 Pro Appendix I High Splice loss: Cause and remedy Symptom Name Cause Remedy Fiber core axial There’s dust in the V-grooves and/or Clean the V-grooves and fiber tips offset fiber tips There’s dust in V-grooves and fiber Clean the V-grooves and fiber hammer Fiber core angle hammer error...
- Page 25 Carry out [Motor Calibration] for maintenance. If the problem Focus Motor Home posi- The fusion splicer is hit by force still can’t be solved, contact with your local INNO Technical tion Erro during splicing operation. Team. Too much [Overlap] setting Adjust or initialize [Overlap] setting.
- Page 26 VIEW 5 Pro Axial offset (>0.4um) Prepare the fiber (stripping, cleaning and cleaving) again. Fiber Axis Align Failed The motor is not calibrated Do the [Motor Calibration] maintenance. There’s dust or dirt on the fiber sur- Prepare the fiber (stripping, cleaning and cleaving) again. face Execute the [Dust Check].
- Page 27 • Use a cotton swab or a similar soft tip object to push and remove the sleeve. 11. Forgot passwords. • Contact your nearest INNO Instrument technical team. 12. No arc power change after [Arc Calibration]. • The internal factor is calibrated and adjusted for the chosen arc power setting. The arc power displayed in each splice mode remains constant.
- Page 28 The End * Products models and specifications are subject to change without prior notice. Homepage Copyright © 2024 INNO Instrument Inc. All rights reserved. www.INNOinstrument.com INNO Instrument Inc. Please visit us on Facebook support@innoinstrument.com www.facebook.com/INNOinstrument...
