Summary of Contents for Bolton Tools UNB-W08x610

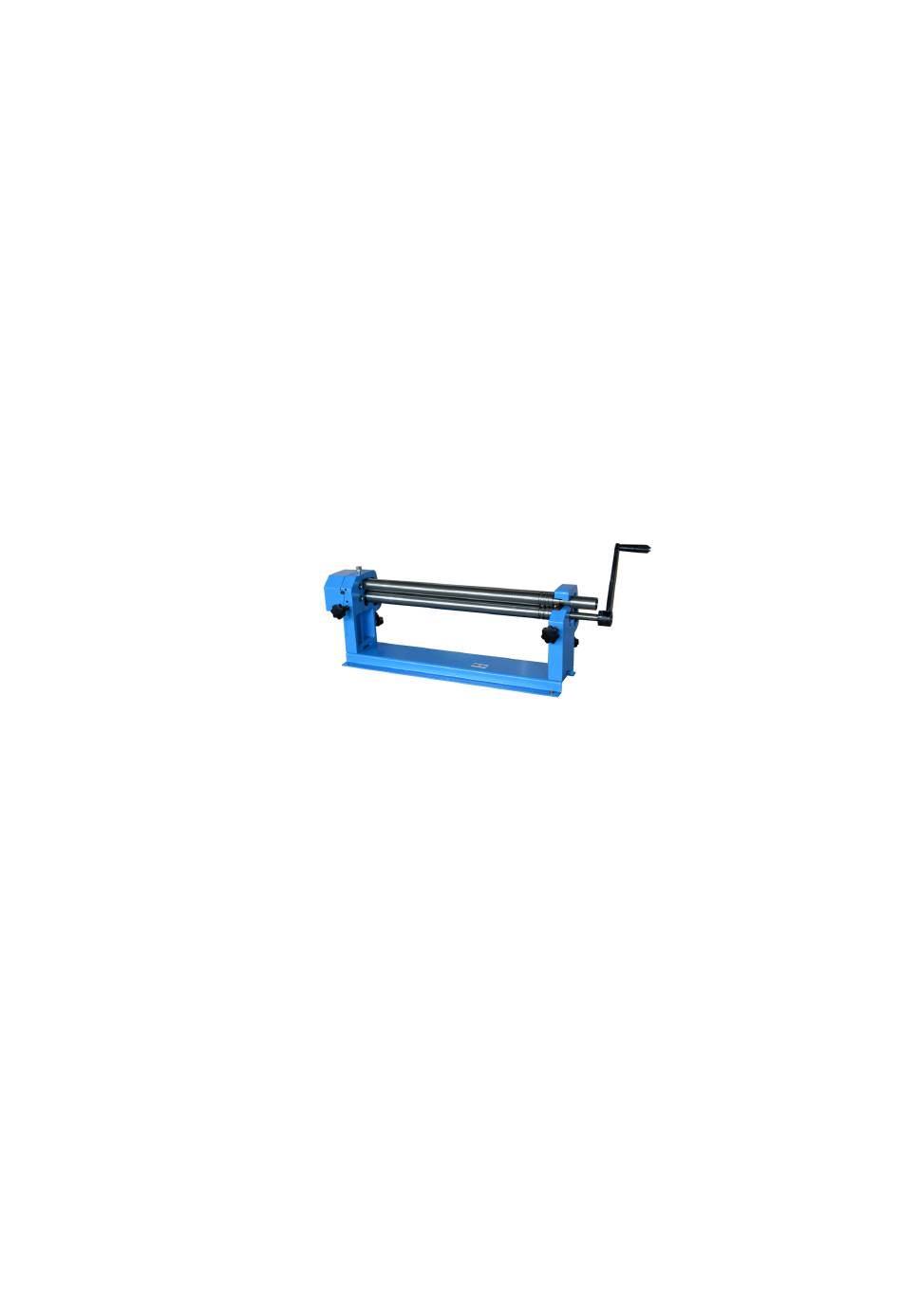

- Page 1 SLIP ROLL UNB-W08x610 OPERATION MANUAL...
-
Page 2: Specifications
Specifications READ THIS INSTRUCTIONS BEFORE USING THIS TOOL 1. KEEP WORK AREA CLEAN. Cluttered areas invite injuries. 2. CONSIDER WORK AREA CONNECTIONS. Don’t use tools in damp, wet, or poorly lit locations. Don’t expose to rain. Keep work area well lit. 3. - Page 3 oil and grease. Follow instructions for lubricating and changing accessories. 11. CHECK DAMAGE PARTS. Before using any tool, any parts that appear damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and other conditions that may affect its operation.
-
Page 4: Operation
Bolt (#35) clockwise. c. To increase distance, turn Adjusting Bolt (#35) counterclockwise. 3. Adjust distance between Shaft 1 (#8) and Shaft 3 (#7) if necessary a. The distance between Shaft 3 (#7) and Shaft 1 (#8) can be adjusted by turning the Adjusting Bolts (#22). b. - Page 5 4. To remove the finished roll, pull out Sleeve (#10) on the end of Shaft 1 (#8), nearest the Handle (#23), and swing Shaft 1 out of the Right Stand. Then remove the steel roll from Shaft 1. Forming Rings The half-round slots on the right side of Shaft 2 (#20) and Shaft 3 (#7) can be used to form rings of various dimensions.
-
Page 6: Parts List
PARTS LIST Part # Description Left Stand Nut M12 Hex Bolt M12x40 Support Bushing Square Bushing Flat Key 4x20 Shaft 3 Shaft 1 Right Stand Sleeve Washer Spring Washer Screw M8x16 Cover Hex Bolt M8x16 Spring Washer Washer Bearing Small Gear Shaft 2 Base Adjusting Bolt...
