Summary of Contents for Elite EVM3-1-40A-9KW-BLE-WIFI

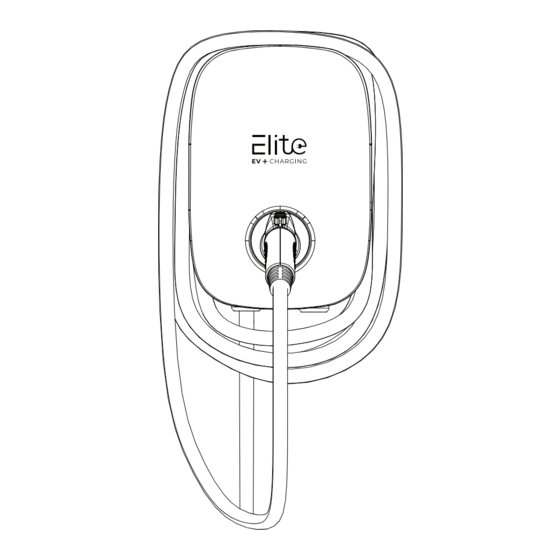

- Page 1 U S E R M A N U A L & I N S TA L L AT I O N EVM3-1-40A/32A/16A-9KW-BLE-WIFI www.IuseEVcharging.com R E S I D E N T I A L • M U L T I - F A M I L Y Los Angeles | www.IuseEVcharging.com | 323.888.1973...
- Page 2 U S E R M A N U A L EVM3-1-40A/32A/16A-9KW-BLE-WIFI www.IuseEVcharging.com WARNING These instructions must be adhered to during the installation, operation, and maintenance of the unit. 1. Please thoroughly review all instructions before using this product. 2. When used in proximity to children, ensure constant supervision of this device. 3.
-
Page 3: Basic Interface
U S E R M A N U A L EVM3-1-40A/32A/16A-9KW-BLE-WIFI www.IuseEVcharging.com Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 4: Design Standards
U S E R M A N U A L EVM3-1-40A/32A/16A-9KW-BLE-WIFI www.IuseEVcharging.com Dimensions 9.84" 14.23" 4.40" Design Standards UL 2594: Electric Vehicle Supply Equipment UL 2231-1: Personnel Protection Systems for Electric Vehicle (EV) Supply Circuits: General Requirements UL 2231-2: Personnel Protection Systems for Electric Vehicle (EV) Supply Circuits: Particular Requirements for Protection Devices for Use in Charging Systems UL 2251: Plugs, Receptacles and Couplers for Electric Vehicles UL 62: Flexible Cords and Cables... - Page 5 U S E R M A N U A L EVM3-1-40A/32A/16A-9KW-BLE-WIFI www.IuseEVcharging.com Status Description of the Charger Indication Light READY Standby - Blue Light The READY light is steady in standby mode. CHARGE Ready to Charge - Green Light The light is steady when the charger is connected to the vehicle.
-
Page 6: Safety Requirements
I N S TA L L AT I O N EVM3-1-40A/32A/16A-9KW-BLE-WIFI www.IuseEVcharging.com Parts Safety Requirements 1. Be sure to preview the user manual and ensure local building and electrical codes are reviewed before installation. 2. The AC charger should be installed by a qualified technician according to the user manual and local safety regulations. - Page 7 I N S TA L L AT I O N EVM3-1-40A/32A/16A-9KW-BLE-WIFI www.IuseEVcharging.com Wiring GROUNDING INSTRUCTIONS Grounding is an essential requirement for this product. In the event of a malfunction or breakdown, grounding serves as the path of least resistance for electrical current, thereby mitigating the risk of electric shock.
-
Page 8: Tools And Materials Required
I N S TA L L AT I O N EVM3-1-40A/32A/16A-9KW-BLE-WIFI www.IuseEVcharging.com Tools and Materials Required Tools required before installing the Wall-Mounted charger, gather the following tools: 1. Wire stripper 2. Crimpers for European terminals 3. Phillips screwdriver for M5 4. - Page 9 I N S TA L L AT I O N EVM3-1-40A/32A/16A-9KW-BLE-WIFI www.IuseEVcharging.com Drill (x4) 8mm holes 2 inches deep using the mounting template. Align the rear notch on the charger to the wall-mounted bracket. Use (x4) expansion screw sets and M6 screw to secure the wall-mounted bracket.
- Page 10 I N S TA L L AT I O N EVM3-1-40A/32A/16A-9KW-BLE-WIFI www.IuseEVcharging.com Operation Instuctions Operating Steps Step 1: Standby Mode READY After powering on, all lights should be on: blue light (READY), green light (CHARGE) and red light (FAULT). Standby mode to follow: blue light (READY) should be on and steady.
-
Page 11: Error And Warning Message
I N S TA L L AT I O N EVM3-1-40A/32A/16A-9KW-BLE-WIFI www.IuseEVcharging.com Error and Warning Message Status Red Light Action Input OVP 1 flashes followed by 3 sec pause Auto Recover Input UVP 2 flashes followed by 3 sec pause Auto Recover Output OCP 3 flashes followed by 3 sec pause... -
Page 12: Maintenance And Repair
Maintenance Spares This charger includes spare parts for maintenance that are meant to be used during and after the warranty period. Services or repairs related to the warranty should be performed solely by certified service technicians authorized by Elite EV.
