Summary of Contents for Sensotec Vo-box

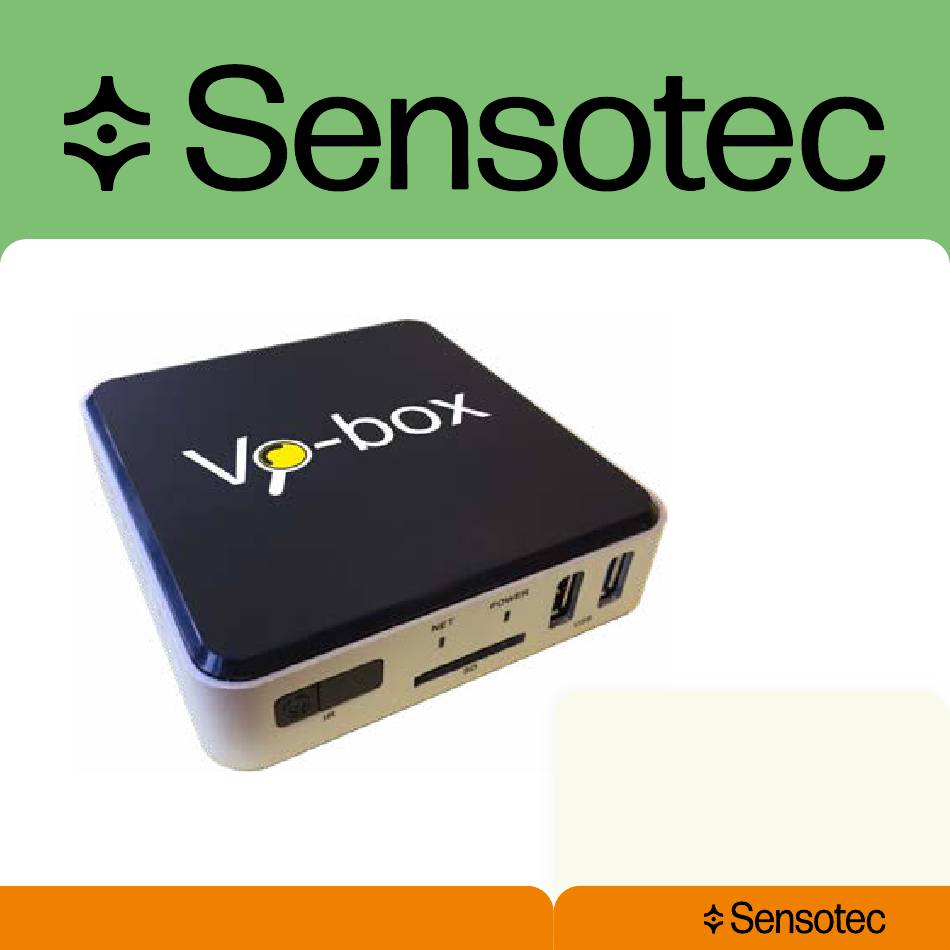

- Page 1 Vo-box Magnified TV subtitles Magnify TV subtitles...
- Page 3 SolutionsRadio (www.solutionsradio.com). SolutionsRadio reserves the right to alter the publication at any time, without prior notice. The most recent version of this document can be found at Vo-box.nl.
-
Page 4: Table Of Contents
Content 1 What is a VO-box..............6 Register.................6 What is in the package............7 The serial number..............7 2 Setting up the Vo-box............8 Basic setup................8 Multiple video sources............9 3 The Exterior.................11 Rear side................11 Front side................12 Remote control..............13 4 How to use................15 Menu...................15 Menu - Subtitles - Colour............15 Menu - Subtitles - Typeface (font)........16... -
Page 6: What Is A Vo-Box
The Vo-box is placed 'in between' the HDMI cable. The tv is usually connected to the external decodeer by such an HDMI kabel. This cable going into the tv is now inserted in the Vo-box, which in its' turn is then connected back to the tv with the cable that is included in the box. -
Page 7: What Is In The Package
The serial number This 5-digit number preceeded by a capital G (e.g. G12345) can be found on the type plate on the bottom panel of the Vo-box, on the outside of the package and in the settings menu. This serial number... -
Page 8: Setting Up The Vo-Box
2 SETTING UP THE VO-BOX The Vo-box merely needs power and a video source to start showing the enhanced subtitles to you. This is described in the 'Basic setup' example below. Some other examples that may better suit your environment or your needs are also described. -
Page 9: Multiple Video Sources
Swapping cables to this input can be a temporary solution to use the Vo-box with multiple video sources, but the following description explains how to use a so-called HDMI switch. Such a switch is not included with the Vo-box, but can be bought in any electronics- or computer-store. - Page 10 'DECODER' input of the Vo-box. Use another HDMI cable to connect the 'TV' output of the Vo-box to one of the HDMI inputs on the tv. Set the tv to the correct HDMI input to watch the signal from the tv-settop box.
-
Page 11: The Exterior
3 THE EXTERIOR Rear side The rear-side has five connectors. From left to right (when the rear is facing towards you): HDMI-input connector for the HDMI cable coming from a video source like a DVD-player network connector for a network cable to your local network ... -
Page 12: Front Side
Front side The front side has the following features from left to right: Standby button Remote control receiver SD card slot Activity light Standby/power light two USB connectors (not used) activity power light light remote control IR receiver 2x USB... -
Page 13: Remote Control
The remote control has 8 buttons. The [ON] button is located in the top right corner. This button will either switch the Vo-box off (standby) or switch it on again. The bottom half has 5 buttons in a diamond shape of which the middle button is the [OK] button to select an option in the menu. - Page 14 Standby Menu Left, right, up or down in menu Back...
-
Page 15: How To Use
4 HOW TO USE The Vo-box will automatically switch ON when it detects a video- signal on its' HDMI input. You may need to press the ON button on the remote control to activate the Vo-box. Menu The Vo-box menu allows you to change usually one-time settings. -
Page 16: Menu - Subtitles - Typeface (Font)
Menu - Subtitles - Typeface (font) The Vo-box can show the enlarged subtitles in different typefaces a.k.a. fonts. Use the [Left] or [Right] button to choose a font that you find pleasant to read. A sample text is shown in the bottom of the screen. -
Page 17: Menu - Subtitles - Alignment
A sample text is shown in the bottom of the screen. Menu - Wifi The Vo-box can be connected to the internet so that it can for instance download available software updates. This can be done either directly via a... - Page 18 Entering your password (WPA-key): use the [up] and [down] buttons to first browse through the lower case alfabet, then the capital letters, then the digits some special characters like “exclamation mark” or “space” ending with the character called “ready”. Press the [OK] or [RIGHT] button when you found a correct character.
-
Page 19: Menu - Status
Menu - Status The Status menu shows you the state of the license and some system details like the video quality of the decoder (x1080 preferred) software version and serial number. -
Page 20: Frequently Asked Questions
Enter the decoder's settings menu and set the video qualtity to 1080p or 1080i. Can also use the Vo-box when I just have a tv without an external decoder or other video-source? The Vo-box can not function when the video is generated within the tv e.g. - Page 21 Vo-box. A second option would be to start the on-demand service on your smart-phone or PC and then stream it to a Chrome Cast connected to the Vo-box. A third option is to connect your PC to the Vo-box directly with a HDMI cable.
-
Page 22: Specifications
6 SPECIFICATIONS Network protocol IPv4 and IPv6 Ethernet 10/100/1000Mbps interface connector type RJ45 with cable-detection IEEE802.11ac (2.4GHz + 5.0GHz) WLAN/WiFi encryption WEP, WPA-TKIP, WPA2-AES, WPS-PB 1x USB v2.0 high-speed type A 1x USB v3.0 full-speed type A 1x SD slot (class 2,4,6) SDSC, SDHC (max. 32GB) HDMI The HDMI interface supports HDCP v2.0 1x HDMI input + 1x HDMI output (for HD, full-HD or 4K tv) - Page 24 Then our Service & Support colleagues are here to help you! Service & Support sales@sensotec.com BE +32(0) 50 39 49 49 NL +31(0) 15 262 59 55 Contact sales@sensotec.com | www.pro.sensotec.com Sensotec Belgium Sensotec The Netherlands Vlamingveld 8 Kalfjeslaan 38, B-8490 Jabbeke NL-2623 AJ Delft...
