Installation manual
Warning note
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the
manufacturer or his service agent or a similar qualified person in order to avoid a hazard.the battery is
non-replaceable.
Installation：The installation shall be done by a qualified person.
Model list:
Model name
Rated voltage
Input Current
Input Wattage
Output Wattage
Emergency Run Time
Correlated Color Temperature
Emergency Luminance Flux
Battery
Battery life
Power factor
Charge Time
Emergency Duration
Operating Temp Range
Degree of Protection
Protection class
Dimensions
Weight
Warranty
Max. mounting height
LF-LED-600A
LF-LED-600A
AC120-347V~, 50/60Hz
40mA
2.5W
2.4W
3 Hours
6500K
180Lm
Ni-Cd 3.6V, 1800mAh
up to 4 years
＞0.4
24 hours
3 hours
0℃-40℃
IP20
Class II
267×95×90mm
0.60kg
2 years
16.2 ft (4.9 m)
1

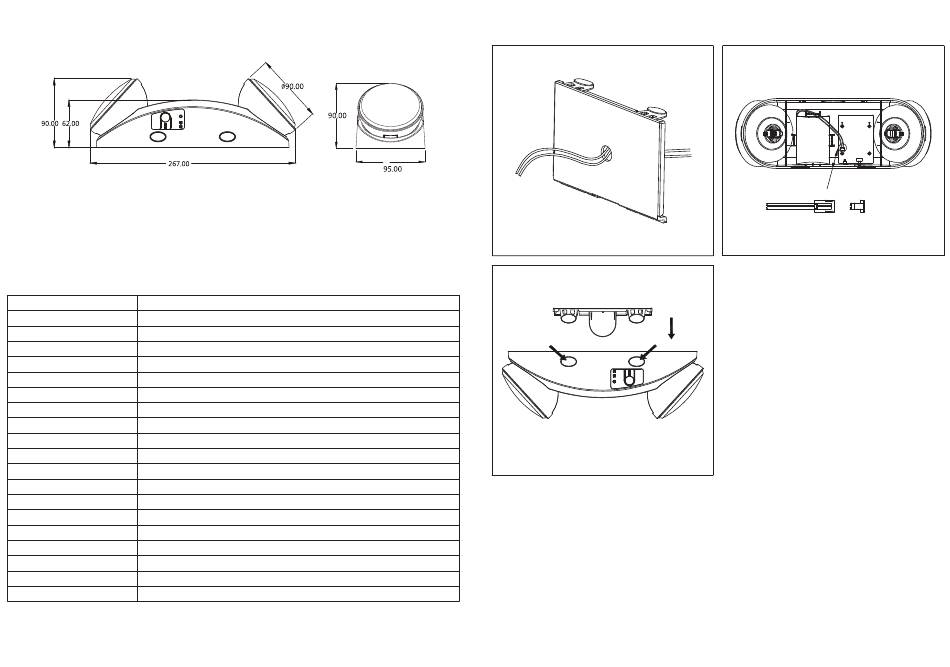

Installation instruction diagram:
Figure 1
Figure 3
Installation Instructions J-Box Mounting
1. Feed fixture leads through main bottom case and connect AC power supply (Figure 1).
2. Connect wires through J-Box.Main bottom case on J-Box and secure with screws.
3. Connect battery only after continuous AC power can be provided to the unit (Figure 2).
4. Align snaps and push housing directly onto main bottom case (Figure 3). Apply continuous AC power and
press "TEST" button to check light.
Figure 2
Plugin
2
